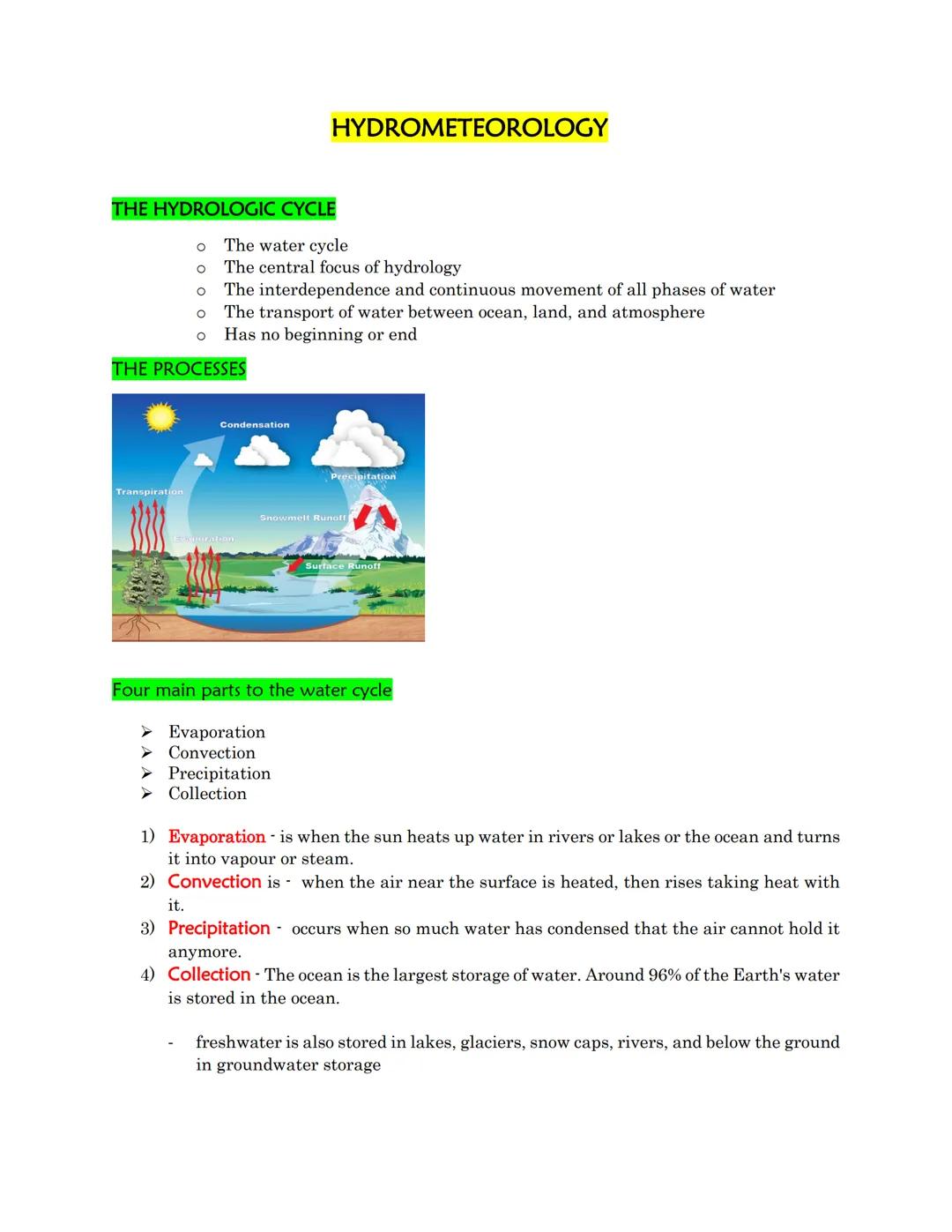

The Hydrologic Cycle Basics

The water cycle is at the heart of hydrology, showing how water constantly moves between different locations and states. This cycle has four main components that work together continuously.

First, evaporation occurs when the sun heats water in oceans, lakes, and rivers, turning it into vapor. Next comes convection, where heated air rises from the surface, carrying water vapor upward. As this air cools, condensation forms clouds, eventually leading to precipitation when the air can no longer hold the moisture. Finally, collection happens as water gathers in storage areas—primarily the ocean (which holds about 96% of Earth's water) but also in lakes, rivers, glaciers, and underground reservoirs.

Quick Fact: While the ocean is the largest water storage system on Earth, freshwater is vital for humans and exists in multiple forms—from the ice in glaciers to the invisible groundwater beneath our feet.

Understanding this cycle helps explain everything from why it rains to how rivers keep flowing even during dry periods.

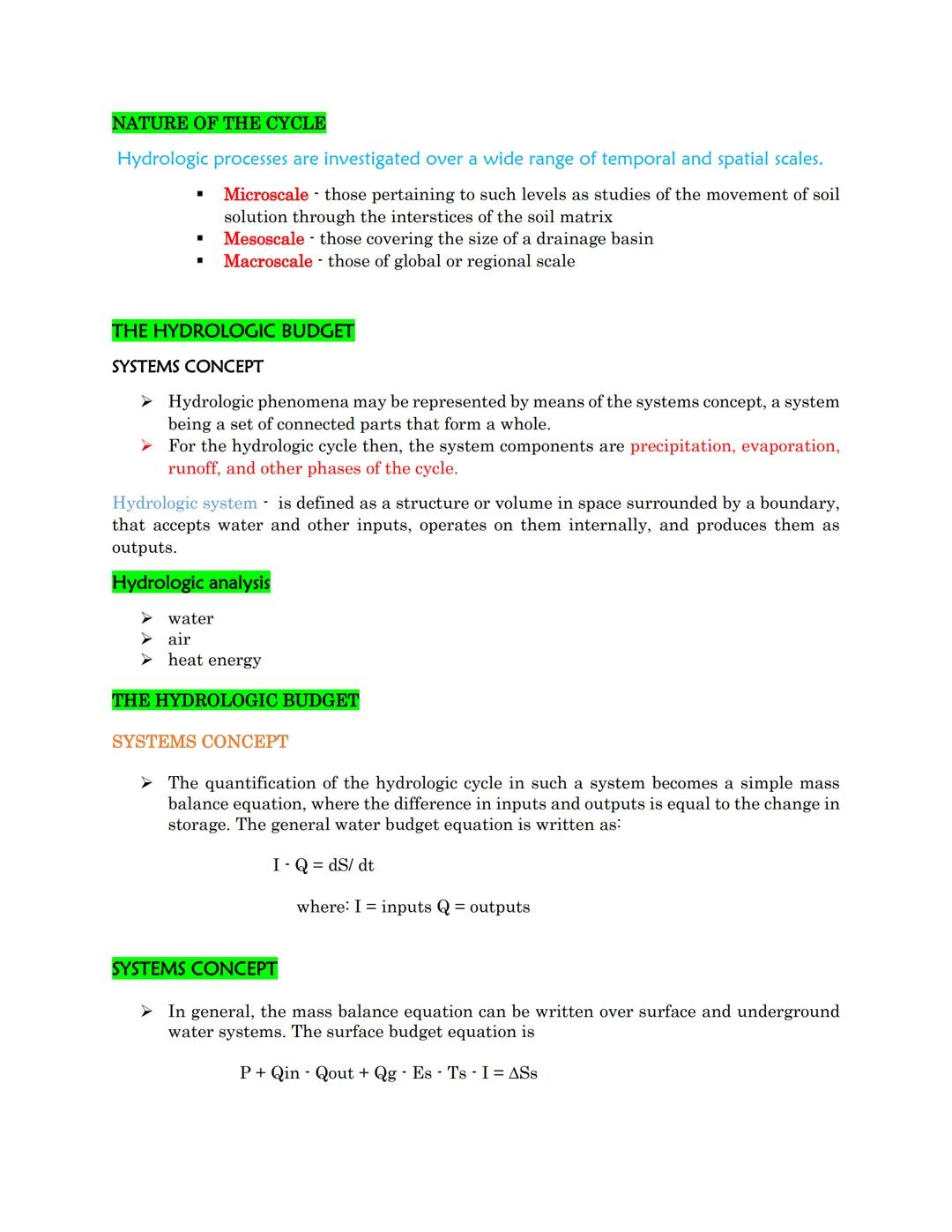

Understanding Hydrologic Systems

Scientists study water cycles across different scales—from microscopic movement through soil particles to massive continental or global patterns. This helps us understand everything from farming irrigation to climate patterns.

The hydrologic cycle can be viewed as a system—a set of connected parts forming a whole. In this system, components like precipitation, evaporation, and runoff work together, with water, air, and heat energy flowing between them. Think of it like a water budget where everything must balance out.

This balance can be expressed in a simple equation: inputs minus outputs equals change in storage. In other words, what comes in minus what goes out equals what's left behind. For surface water, this includes precipitation, stream flows, evaporation, and water seeping into the ground. For groundwater, it includes infiltration, underground flows, and water moving up to the surface.

Remember This: The hydrologic budget works just like your bank account—every drop of water must be accounted for, whether it's coming in, going out, or being stored somewhere!

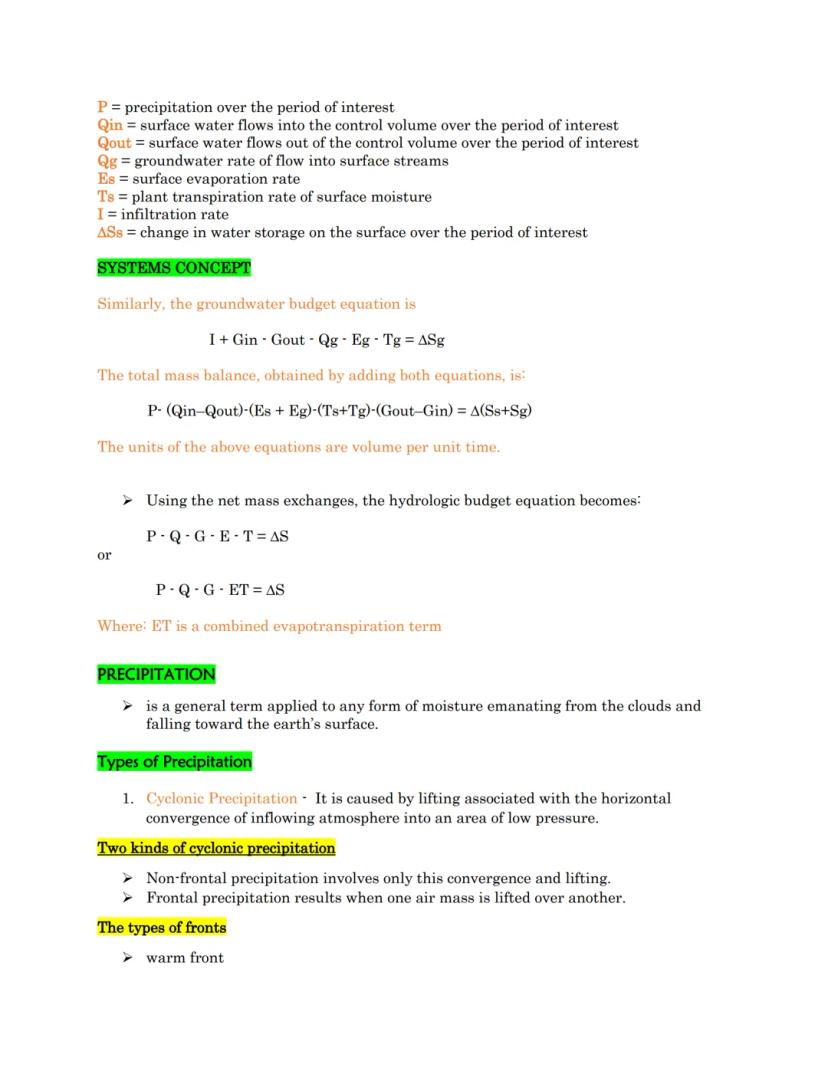

The Water Budget and Precipitation

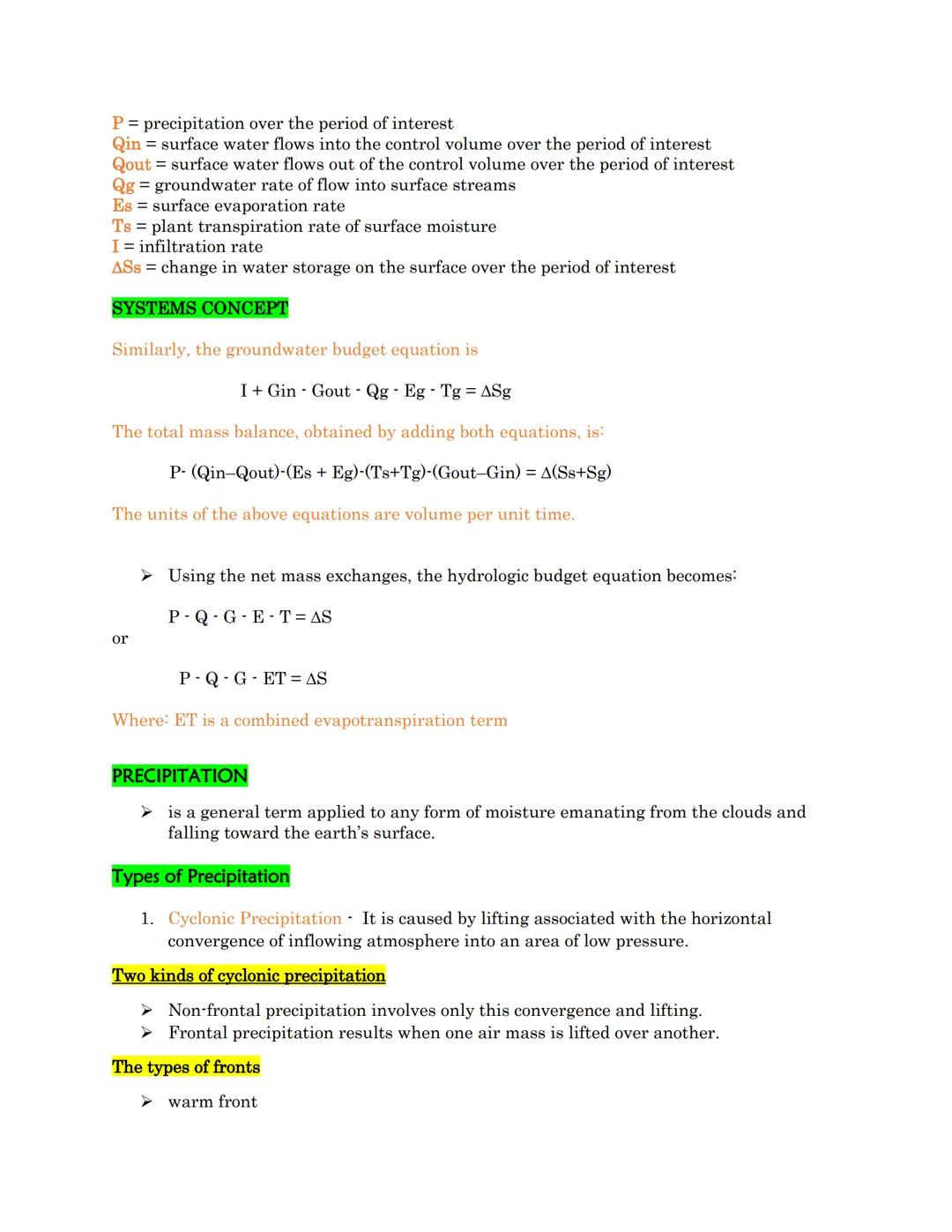

The total water budget combines surface and groundwater systems into one equation: Precipitation - Runoff - Groundwater flow - Evapotranspiration = Change in Storage. This helps us track where water goes in any area.

Precipitation is moisture that falls from clouds to Earth's surface in various forms. One important type is cyclonic precipitation, which happens when air flows into an area of low pressure and rises. This comes in two forms: non-frontal (simple convergence and lifting) and frontal (when one air mass is forced over another).

Frontal precipitation occurs at boundaries between different air masses. These boundaries, called fronts, come in several types: warm fronts (warm air rising over cold), cold fronts (cold air pushing under warm), and occluded fronts (a mix of both). Each creates different weather patterns and precipitation intensities.

Visualization Tip: Think of fronts like bulldozers—cold fronts are aggressive, pushing warm air up quickly (causing heavy rain), while warm fronts are gentler, slowly climbing over cold air (causing longer, lighter rain).

Weather Fronts and Precipitation

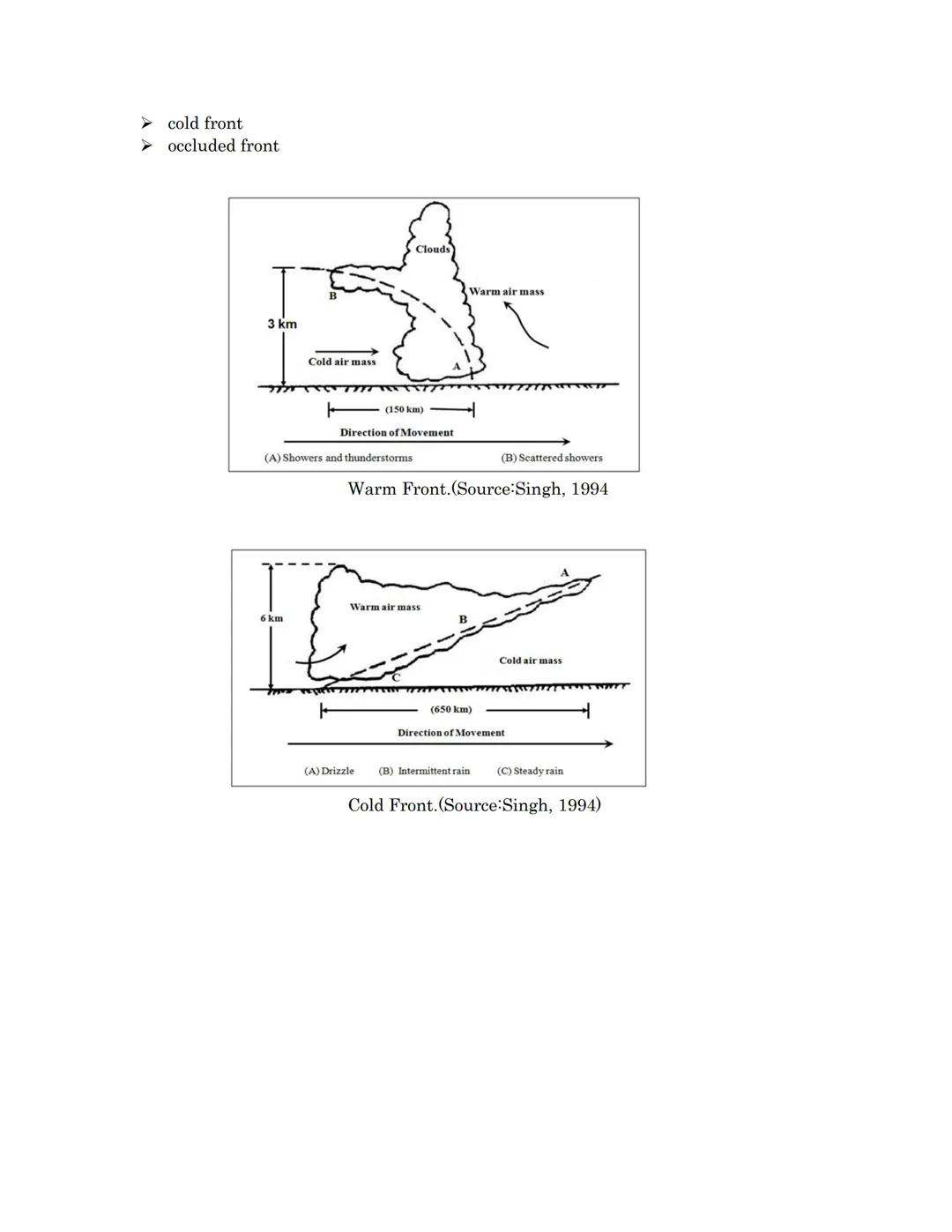

Cold fronts and warm fronts create distinctly different weather patterns as they move across the landscape. These differences explain why some storms are brief but intense, while others bring long periods of gentle rain.

Cold fronts move quickly, with cold air pushing underneath warm air like a wedge. This forces warm air to rise rapidly, creating intense but relatively brief showers and thunderstorms. The weather changes happen fast—one minute it's sunny, the next you're in a downpour. These storms typically affect a narrow band about 150 km wide.

Warm fronts, by contrast, involve warm air slowly rising over a cold air mass across a much wider area (around 650 km). The gentle lifting creates lighter but longer-lasting precipitation. You'll often notice drizzle first, then intermittent rain, and finally steady rain as the front passes through.

Weather Wisdom: The shape of clouds can tell you which front is approaching—tall, puffy cumulonimbus clouds often signal a cold front, while layered, sheet-like stratus clouds typically accompany warm fronts.

More Types of Precipitation

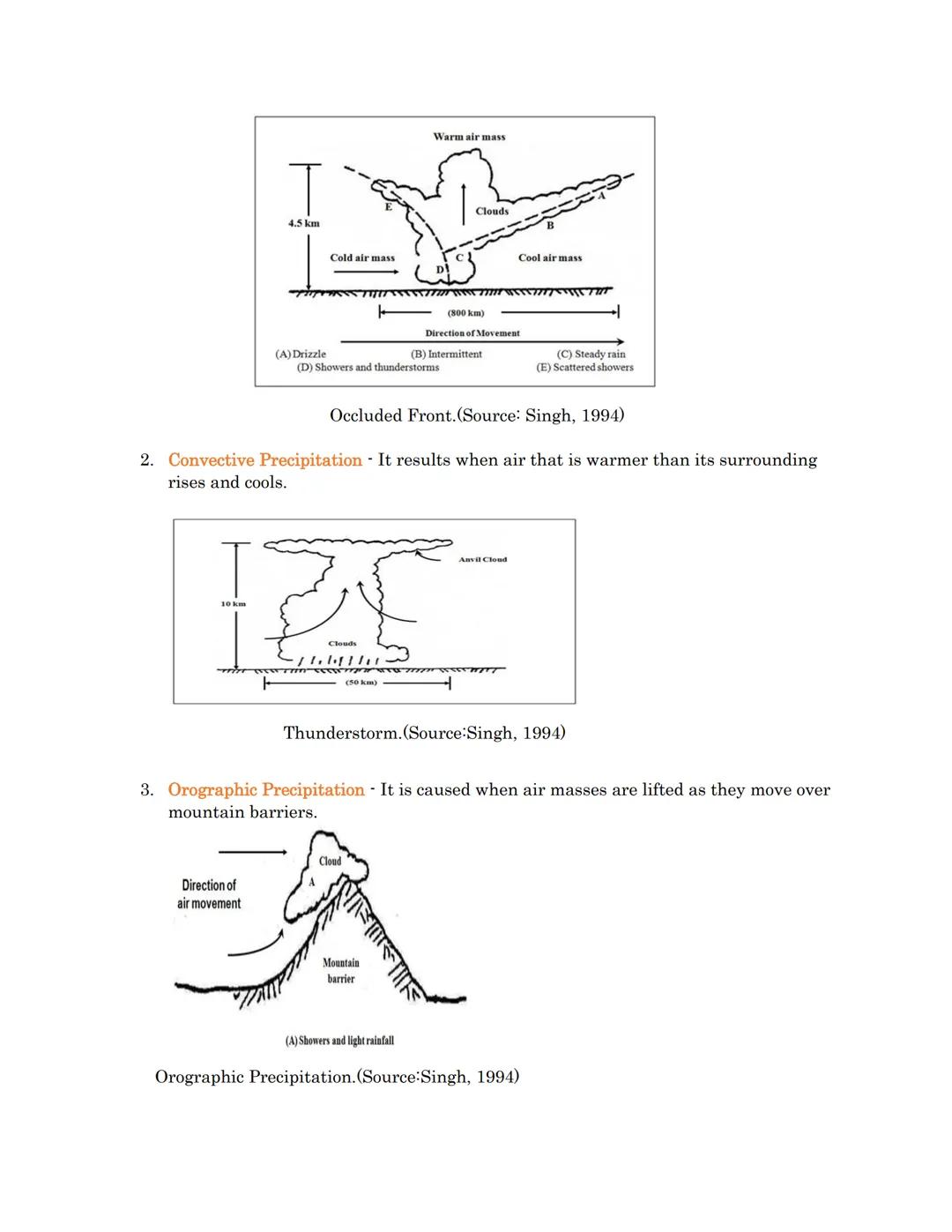

Occluded fronts occur when a faster-moving cold front catches up to a warm front, creating a complex weather system. These systems often bring various precipitation types—from drizzle and intermittent rain to steady downpours and thunderstorms—across an 800 km span as they move through.

Convective precipitation happens when air warmer than its surroundings rises and cools. The classic example is a thunderstorm—warm air rises rapidly, forms massive clouds, and creates heavy rainfall. This type of precipitation is especially common on hot summer afternoons when the ground heats up significantly.

Orographic precipitation occurs when air masses are forced upward by mountain barriers. As air rises against a mountain, it cools and releases moisture on the windward side (facing the wind). This explains why many mountain regions have lush, wet conditions on one side and much drier conditions on the other.

Real-World Application: Ever wonder why Seattle is so rainy? It's largely due to orographic precipitation—moist air from the Pacific Ocean rises over the Cascade Mountains, dropping rain on the western side while leaving eastern Washington much drier.

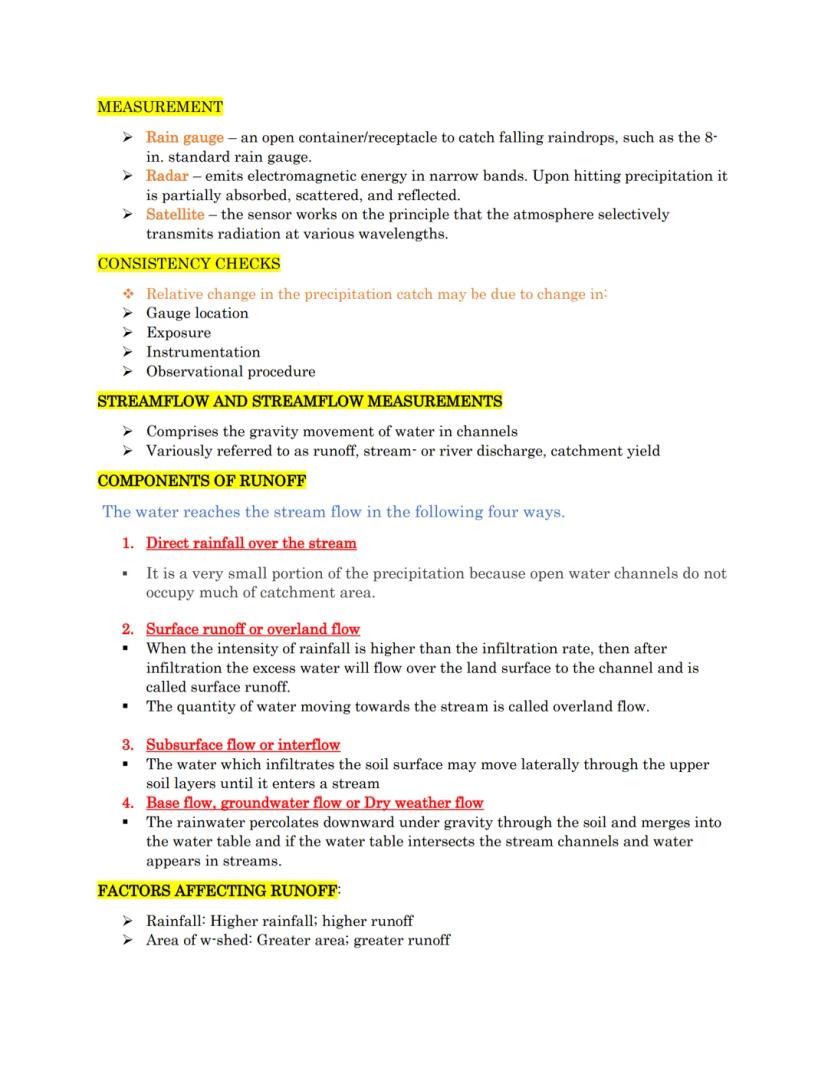

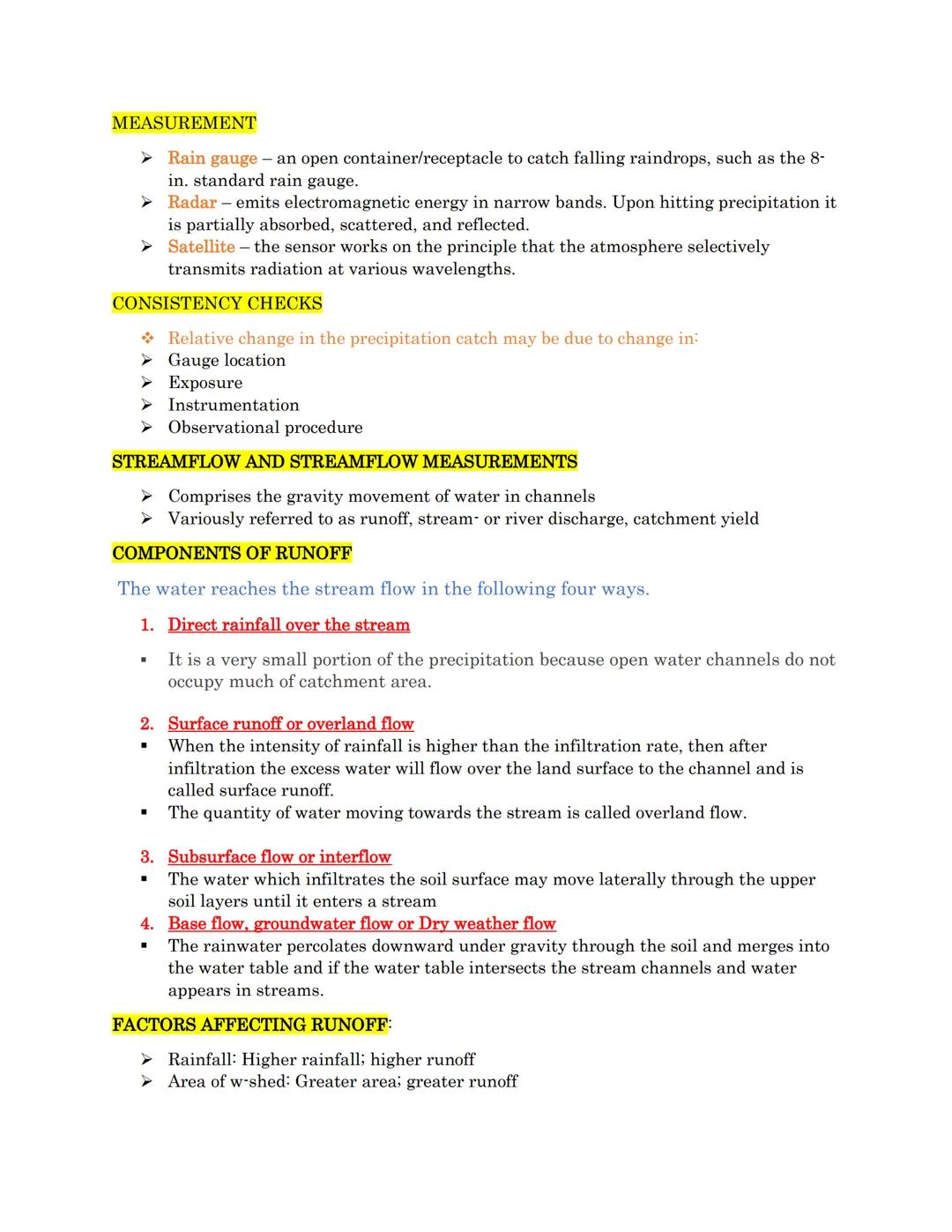

Measuring Precipitation and Understanding Runoff

Scientists measure precipitation using several methods. Traditional rain gauges catch falling raindrops in open containers, while more advanced technology like radar emits electromagnetic energy that reflects off precipitation. Satellites can also detect rainfall by measuring how the atmosphere transmits radiation at various wavelengths.

Streamflow (also called runoff, discharge, or catchment yield) is the gravity-driven movement of water in channels. This water reaches streams through four main pathways: direct rainfall into the stream (minimal amount), surface runoff (excess water flowing over land when rain exceeds infiltration), subsurface flow (water moving laterally through upper soil layers), and base flow (groundwater that intersects with stream channels).

Multiple factors affect how much precipitation becomes runoff. Watershed characteristics matter significantly—including size (larger areas produce more runoff), shape (circular watersheds generate faster runoff than elongated ones), and slope (steeper terrain increases runoff speed and volume).

Think About It: Even identical rainstorms can produce completely different amounts of runoff depending on the landscape. A heavy rain on steep, bare mountain slopes creates immediate flooding, while the same rain falling on a flat, forested area might barely raise stream levels.

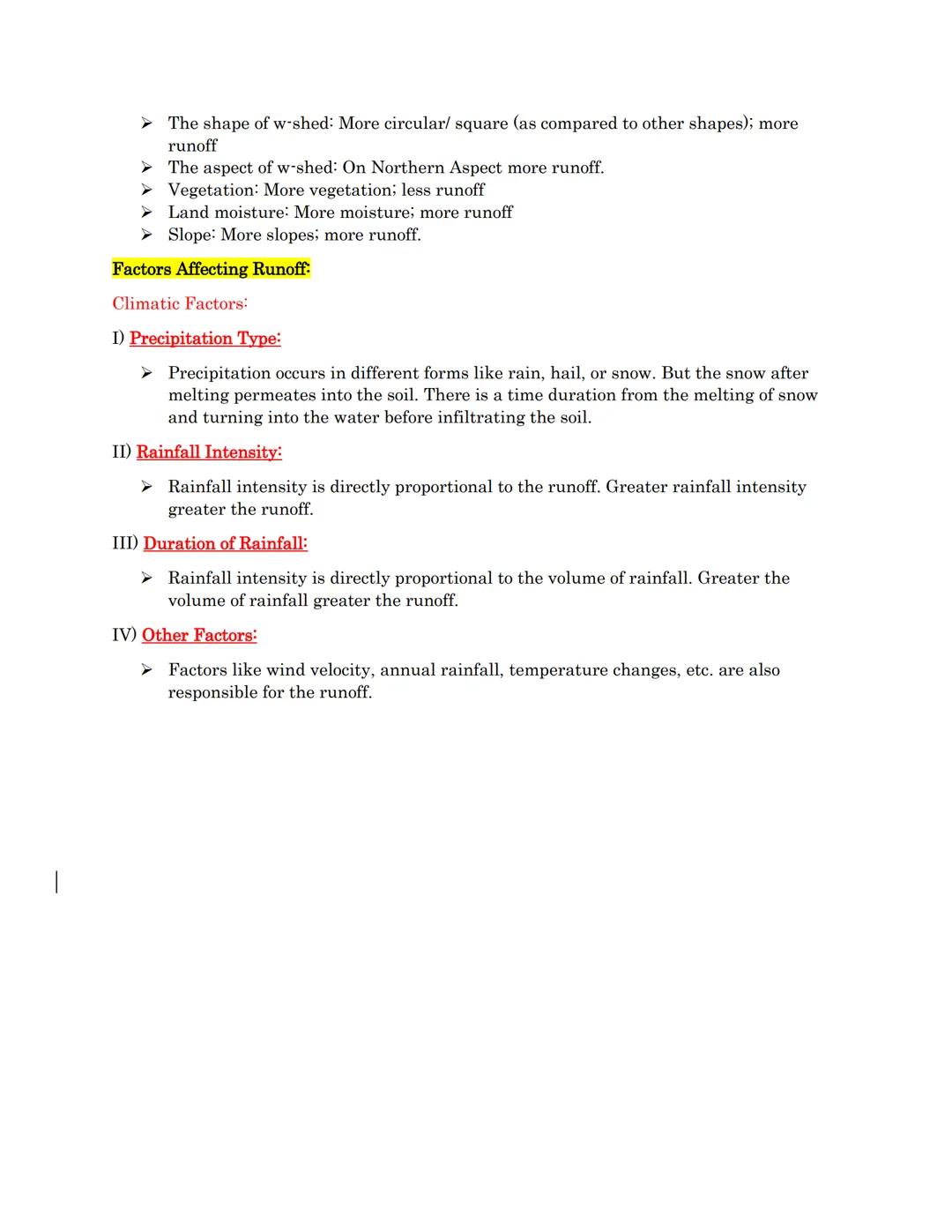

Factors Affecting Runoff

The amount of water that becomes runoff depends on both watershed features and climate conditions. Understanding these factors helps predict flooding and manage water resources.

Vegetation plays a crucial role in reducing runoff—plants intercept rainfall, slow its movement, and increase soil infiltration. Land moisture is equally important; saturated soils can't absorb more water, leading to increased runoff. The aspect (direction) of a watershed also matters—in the Northern Hemisphere, north-facing slopes often generate more runoff because they receive less direct sunlight and retain moisture longer.

Precipitation type significantly influences runoff patterns. Rain typically produces immediate runoff, while snow temporarily stores water that releases gradually during melting. Rainfall intensity directly affects runoff volume—heavy downpours often exceed soil infiltration capacity, creating more surface flow than gentle rains delivering the same total amount. Similarly, rainfall duration matters because longer storms can saturate soil, increasing runoff as the event continues.

Practical Example: This explains why flash floods often happen after intense thunderstorms but rarely after day-long drizzles. Even though both might deliver the same amount of water, the rate of delivery makes all the difference in how streams and rivers respond!
