Fun Overview of Cellular Respiration Stages with Diagrams

Report
Cellular respiration is a vital metabolic process that converts organic molecules into ATP through multiple stages, providing energy for cellular functions. • The process involves three main stages of cellular respiration : glycolysis, citric acid cycle, and oxidative phosphorylation • The cellular respiration equation demonstrates how glucose is broken down to produce ATP, water, and carbon dioxide • Both aerobic and anaerobic respiration processes occur depending on oxygen availability • The electron transport chain and ATP synthase work together to generate most of the cell's ATP supply
3.6 Cellular Respiration – page 1

Sign up to see the content.
It's free!

Glycolysis and Citric Acid Cycle

Glycolysis

Glycolysis is the initial step of cellular respiration that occurs in the cytoplasm of the cell. During this process, glucose, a 6-carbon sugar, is broken down into two molecules of pyruvate, a 3-carbon compound. This process generates a small amount of ATP and NADH, a high-energy electron carrier.

Vocabulary: Pyruvate - A 3-carbon compound produced as the end product of glycolysis.

Citric Acid Cycle (Krebs Cycle)

The citric acid cycle, also known as the Krebs cycle, takes place in the mitochondrial matrix. In this stage, each pyruvate molecule from glycolysis is converted into acetyl-CoA and enters the citric acid cycle. The cycle generates NADH, FADH2, ATP, and releases carbon dioxide as a waste product.

Example: The citric acid cycle is like a cellular "energy factory" that produces high-energy electron carriers (NADH and FADH2) used in the next stage of cellular respiration.

Both glycolysis and the citric acid cycle are crucial steps in the cellular respiration equation, preparing the cell for the final stage where the majority of ATP is produced.

3.6 Cellular Respiration – page 2

Sign up to see the content.
It's free!

Oxidative Phosphorylation and Anaerobic Respiration

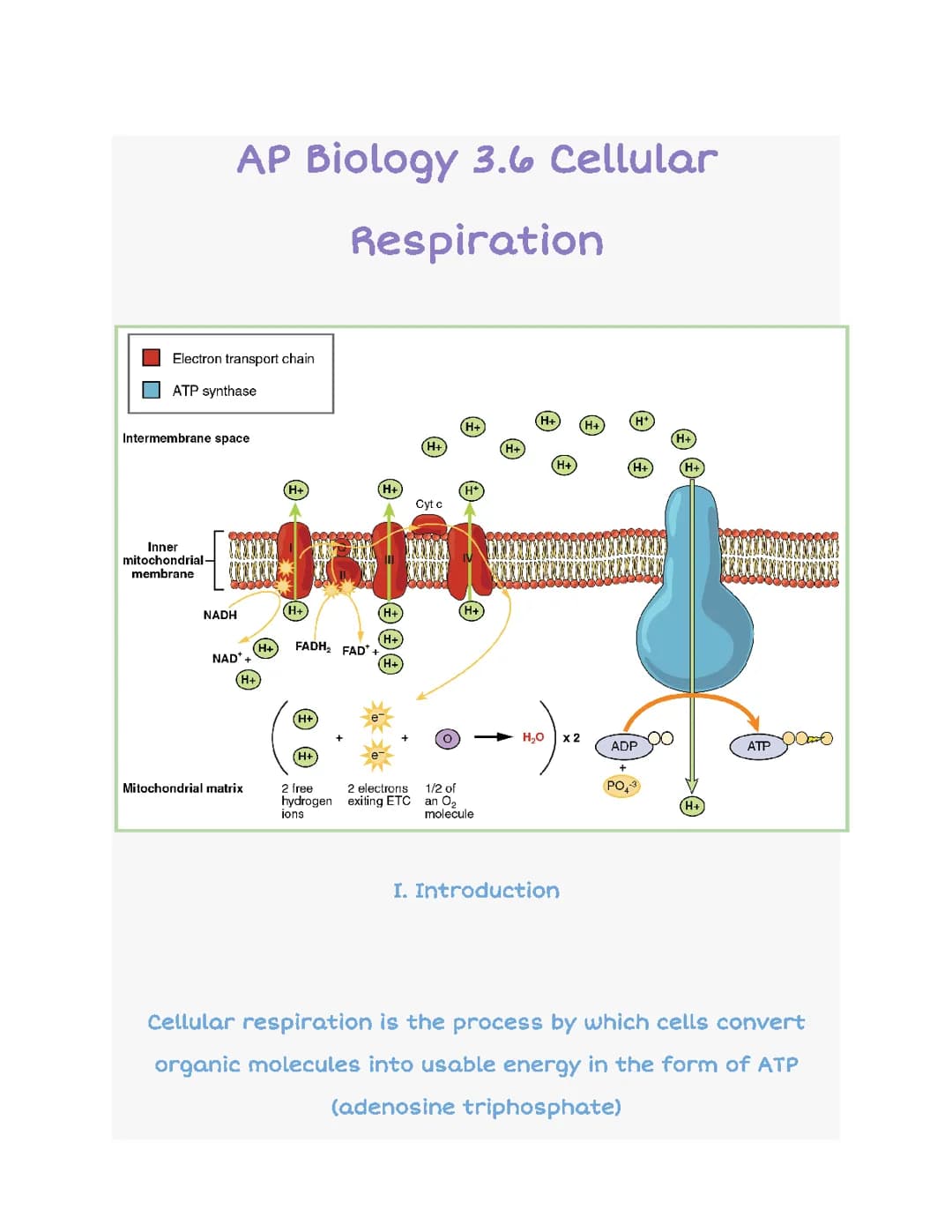

Oxidative Phosphorylation

Oxidative phosphorylation occurs in the inner mitochondrial membrane and is the final stage of cellular respiration. This process involves two main components:

  1. Electron Transport Chain (ETC): NADH and FADH2 from glycolysis and the citric acid cycle donate their high-energy electrons to the ETC. These electrons are passed through a series of protein complexes, creating a proton gradient across the inner mitochondrial membrane.

  2. Chemiosmosis: Protons flow back through ATP synthase, driving the synthesis of ATP from ADP and inorganic phosphate.

Highlight: The electron transport chain steps are crucial for understanding how cells generate the majority of their ATP through oxidative phosphorylation.

Anaerobic Respiration

Anaerobic respiration is the process of generating energy without oxygen. Two common types are:

  1. Alcoholic fermentation: Occurs in yeast and some bacteria, converting pyruvate into ethanol and carbon dioxide.
  2. Lactic acid fermentation: Occurs in muscle cells during intense exercise, converting pyruvate into lactic acid.

Definition: Anaerobic respiration is a metabolic process that produces energy in the absence of oxygen.

Understanding the differences between aerobic and anaerobic respiration is essential for comprehending how organisms adapt to various environmental conditions and energy demands.

3.6 Cellular Respiration – page 3

Sign up to see the content.
It's free!

Significance and Conclusion of Cellular Respiration

Cellular respiration is essential for the survival of organisms as it provides ATP, the primary energy currency of cells. It is also important for the recycling of NADH and FADH2, which are necessary for glycolysis and the citric acid cycle to continue.

Quote: "Cellular respiration is a complex metabolic process that involves the breakdown of organic molecules to produce ATP."

The significance of cellular respiration extends beyond energy production:

  1. It allows organisms to utilize a variety of organic molecules as energy sources.
  2. It provides precursor molecules for biosynthesis of other important compounds.
  3. It helps maintain cellular redox balance.

Highlight: Understanding the cellular respiration diagram and its various components is crucial for grasping how organisms obtain and utilize energy at the molecular level.

In conclusion, cellular respiration is a fundamental process in biology that demonstrates the intricate ways in which cells convert food into usable energy. Its study is essential for understanding metabolism, bioenergetics, and the overall functioning of living organisms.

3.6 Cellular Respiration – page 4

Sign up to see the content.
It's free!

Page 5: Significance and Conclusion

The final page emphasizes the importance of cellular respiration and summarizes its key aspects.

Quote: "Understanding cellular respiration is crucial for understanding how organisms obtain and utilize energy."

Highlight: ATP production and electron carrier recycling are essential for cellular survival.

Definition: ATP serves as the primary energy currency of cells, powering various cellular processes.

3.6 Cellular Respiration – page 5

Sign up to see the content.
It's free!

Introduction to Cellular Respiration

Cellular respiration is a fundamental metabolic process that occurs in the mitochondria of eukaryotic cells. This process enables cells to convert organic molecules into usable energy in the form of ATP (adenosine triphosphate), which is crucial for various cellular functions.

Definition: Cellular respiration is the process by which cells break down organic molecules to produce ATP, the primary energy currency of cells.

The process of cellular respiration consists of three main stages:

  1. Glycolysis
  2. Citric Acid Cycle (Krebs Cycle)
  3. Oxidative Phosphorylation (Electron Transport Chain and Chemiosmosis)

Highlight: Understanding the stages of cellular respiration is essential for comprehending how organisms obtain and utilize energy at the cellular level.
