Lens Formulas and Wave Equations

This page focuses on lens formulas and introduces wave equations.

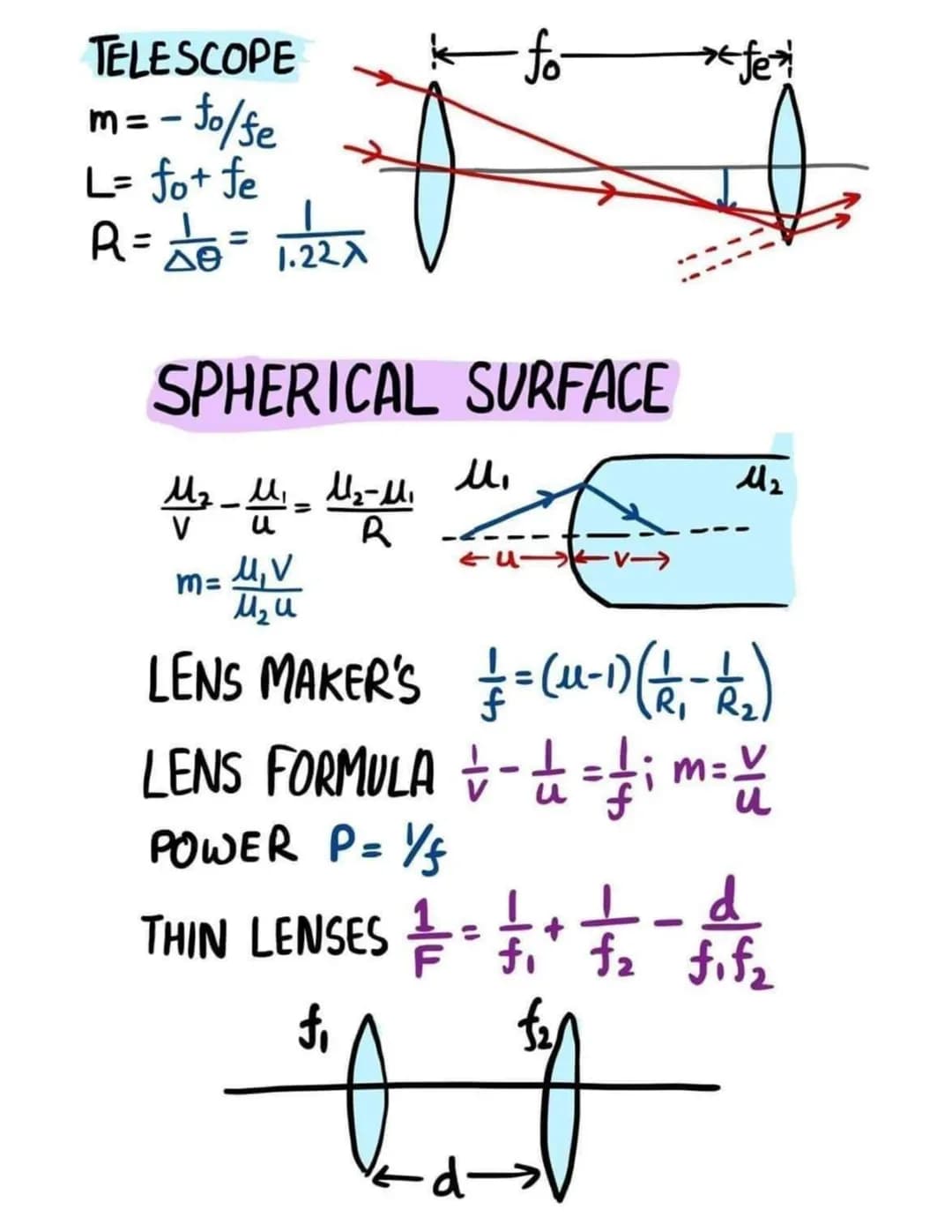

The lens maker's formula and thin lens formula are presented, which are crucial optics formulas for physics exams. These equations relate the focal length of a lens to its curvature and refractive index.

Example: The power of a lens $P$ is given by P = 1/f, where f is the focal length in meters. A lens with a focal length of 0.5 m has a power of 2 diopters.

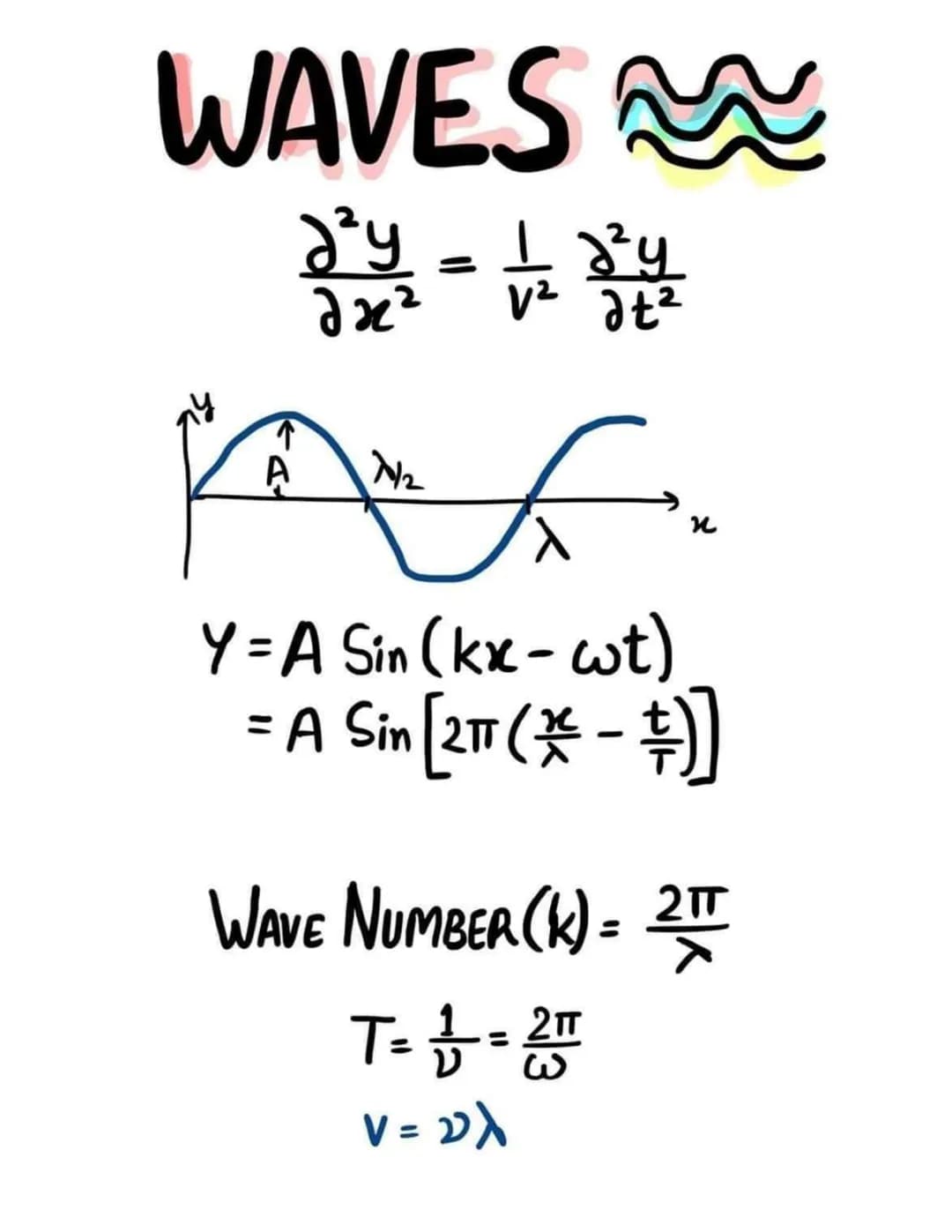

The wave equation is introduced, showing the relationship between displacement, wave number, and angular frequency. This forms the basis for understanding wave interference patterns in physics.

Vocabulary: Wave number $k$ is defined as k = 2π/λ, where λ is the wavelength.

The page also includes the formula for wave velocity and period, essential for solving wave-related problems.

Wave Interference and Standing Waves

This section delves into wave interference and standing waves, crucial topics for understanding wave interference patterns in class 12.

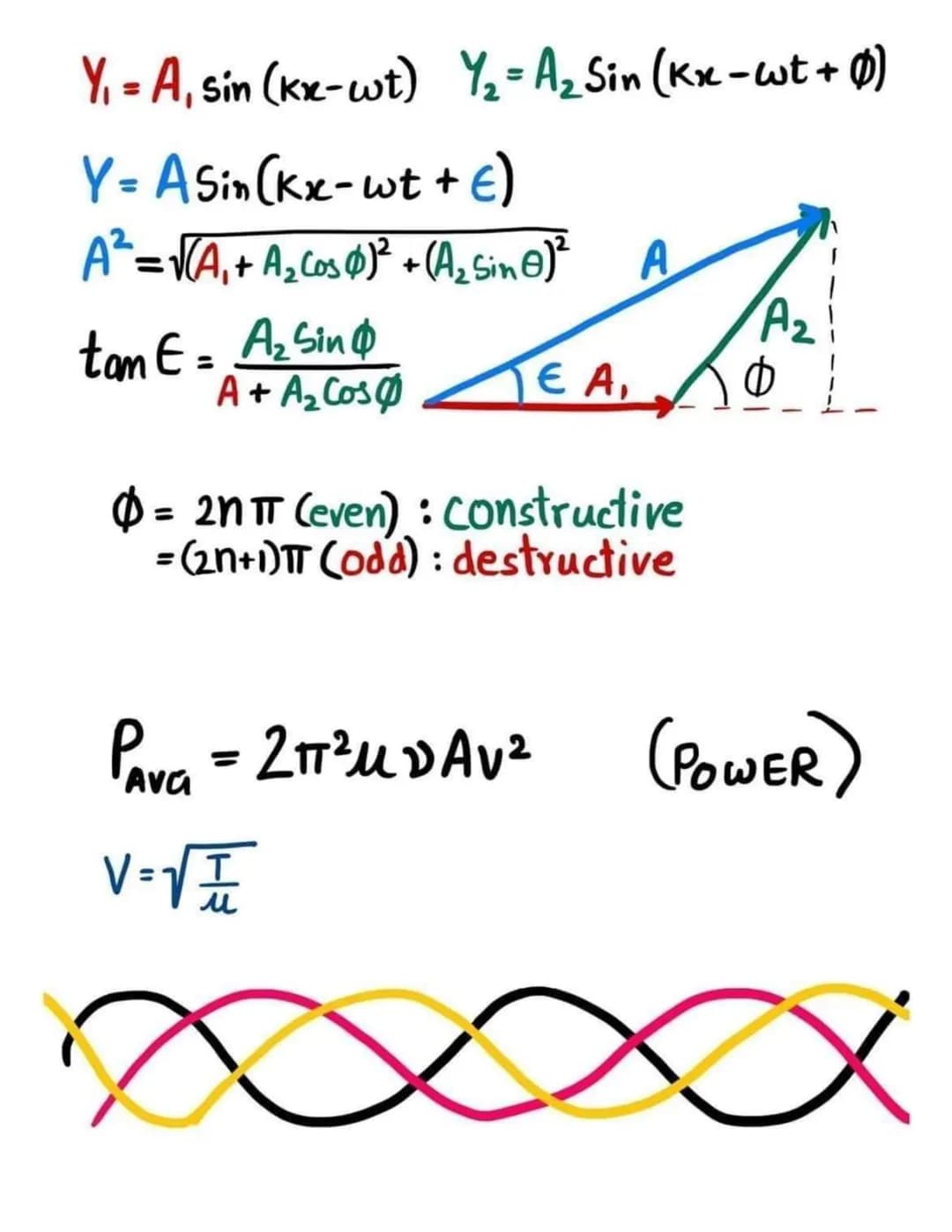

The equations for superposition of waves with different phases are presented, leading to the conditions for constructive and destructive interference.

Definition: Constructive interference occurs when the phase difference between two waves is an even multiple of π, while destructive interference occurs when it's an odd multiple of π.

The average power of a wave is given, relating it to frequency, amplitude, and medium properties.

Standing waves are introduced with their characteristic equation:

y = 2A cos$kx$ sin$ωt$

Highlight: In standing waves, nodes occur where cos$kx$ is zero, leading to the condition x = nλ/4, where n is an odd integer.

The page concludes with formulas for standing waves in sonometers and pipes, both open and closed.

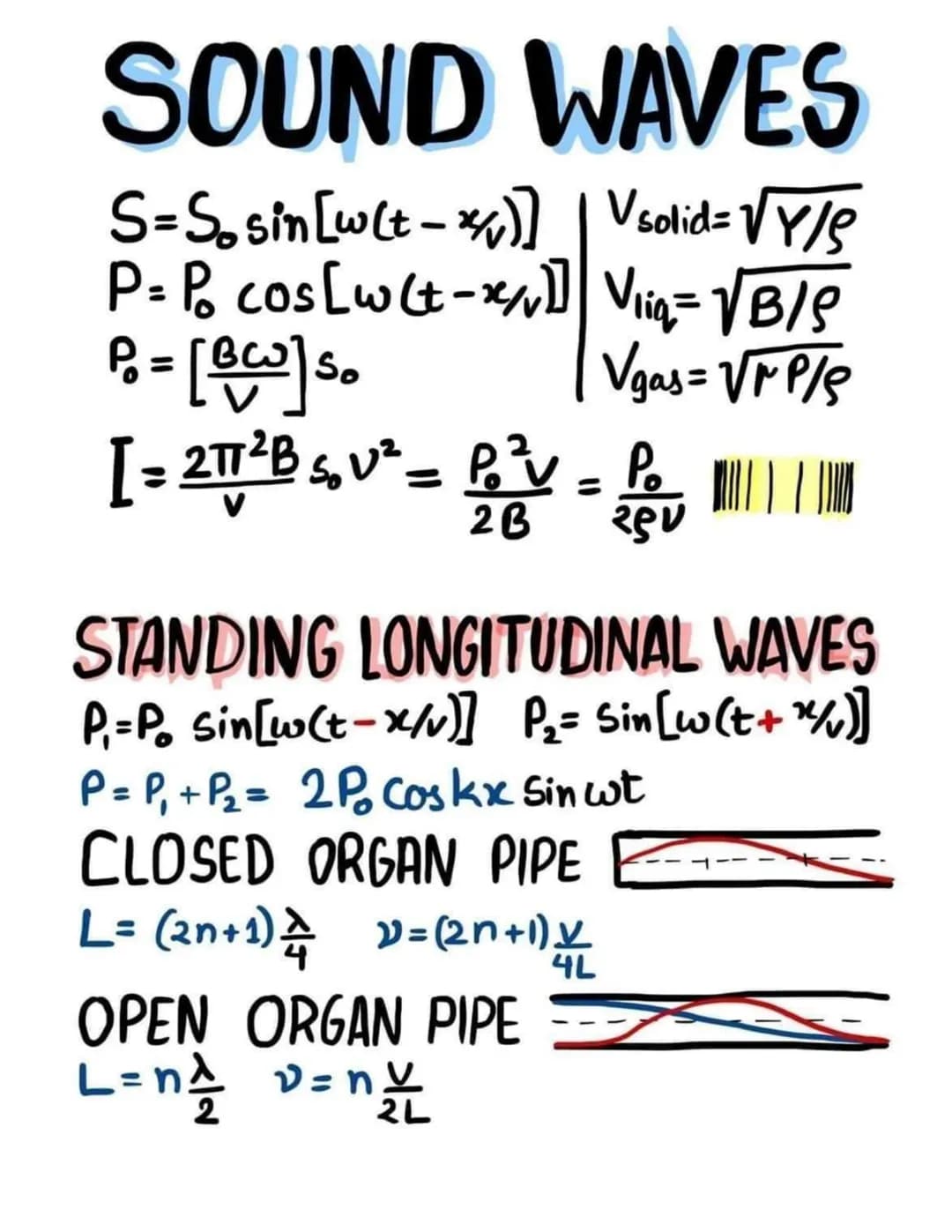

Sound Waves and Fluid Mechanics

This page covers sound waves and introduces concepts from fluid mechanics.

Sound wave equations are presented, showing the relationship between pressure, displacement, and medium properties. The velocity of sound in different media is given:

• In solids: v = √$Y/ρ$
• In liquids: v = √$B/ρ$
• In gases: v = √$γP/ρ$

Where Y is Young's modulus, B is bulk modulus, γ is the ratio of specific heats, and ρ is density.

Example: The speed of sound in air at room temperature is approximately 343 m/s.

Standing longitudinal waves are described, with equations for pressure nodes and antinodes in closed and open organ pipes.

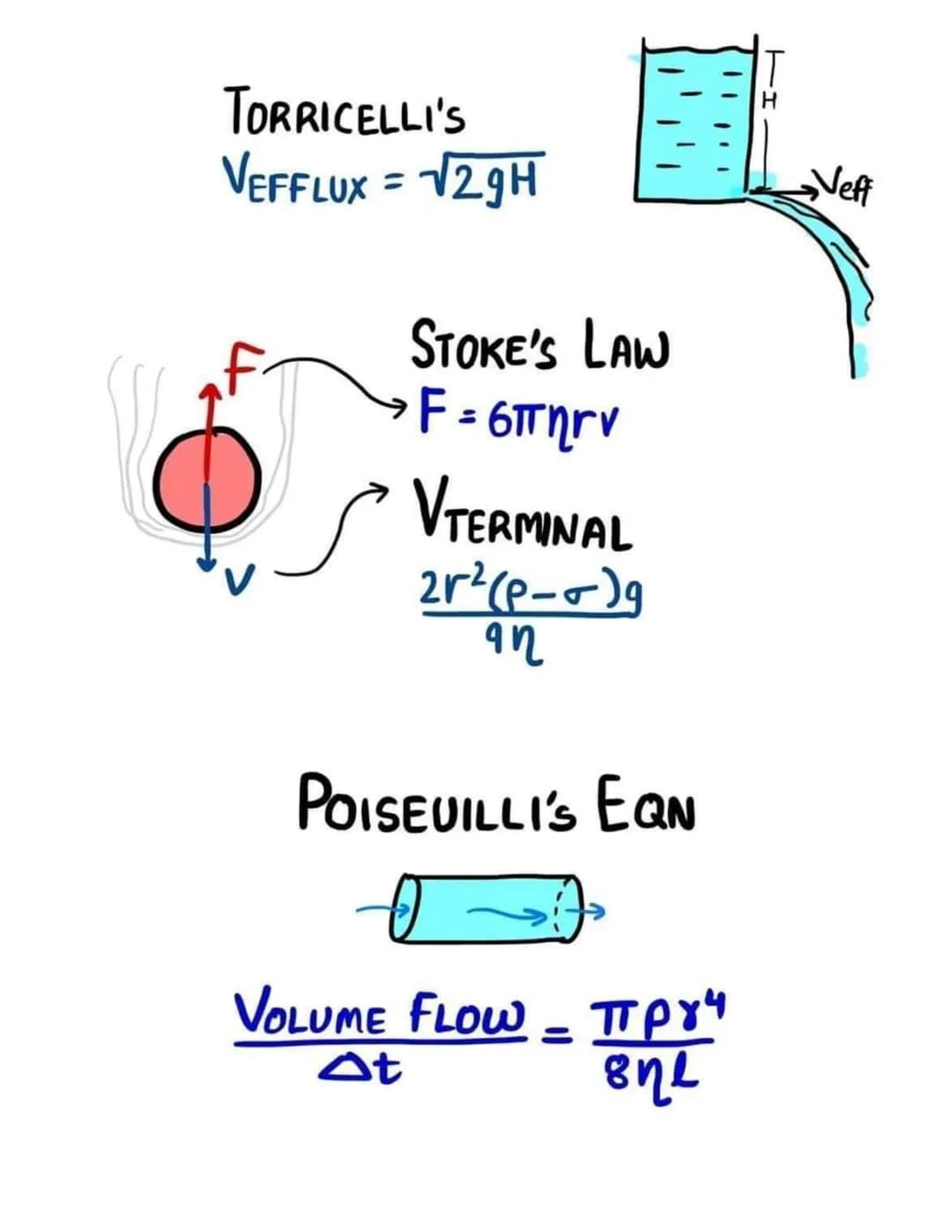

The page also introduces key fluid mechanics concepts:

• Torricelli's theorem for efflux velocity
• Stokes' law for viscous drag
• Poiseuille's equation for laminar flow in pipes

These formulas are essential for understanding fluid behavior and solving related problems in physics exams.

Fluid Dynamics and Surface Tension

This page continues with fluid dynamics and introduces surface tension concepts.

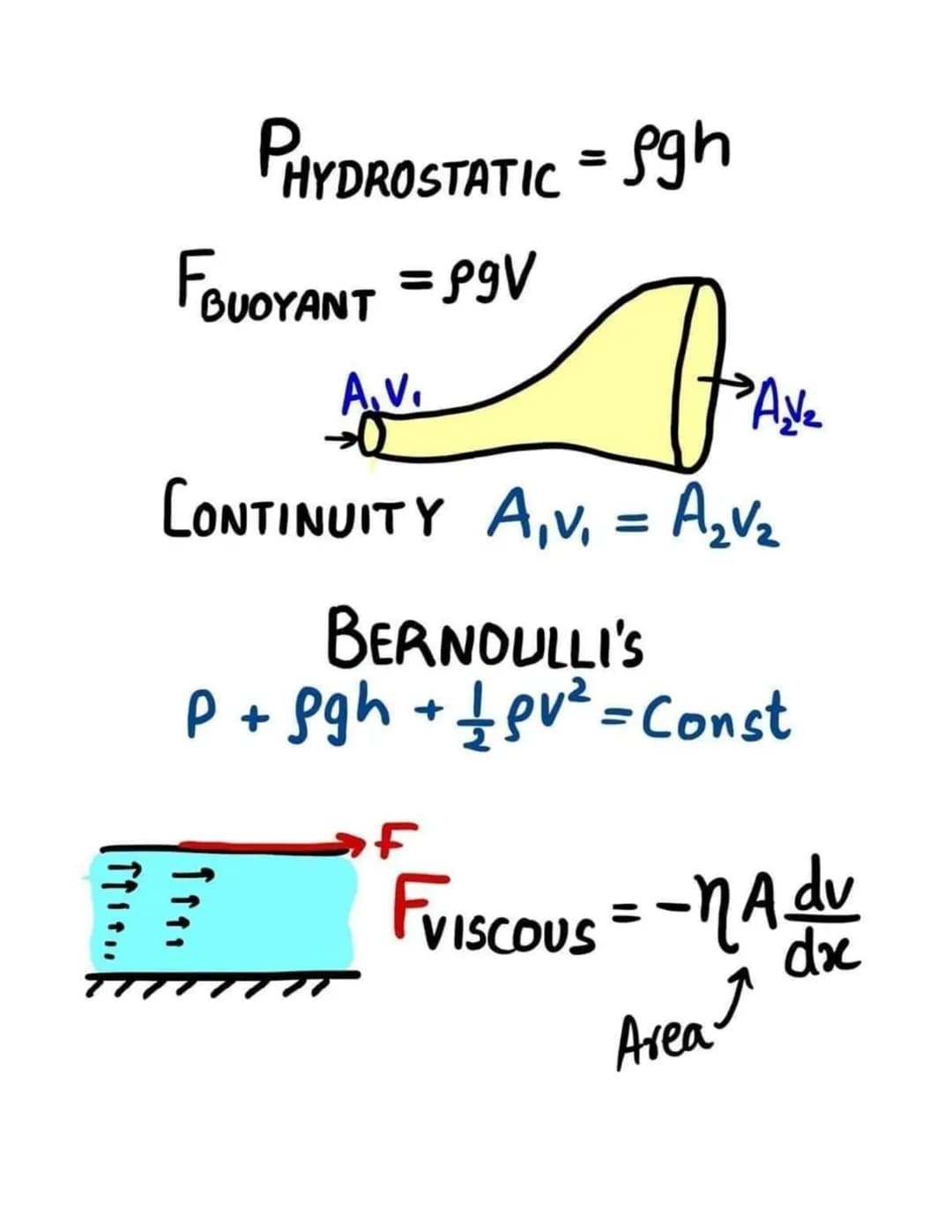

Key equations in fluid dynamics are presented:

• Hydrostatic pressure: P = ρgh
• Buoyant force: F = ρgV $Archimedes' principle$
• Continuity equation: A₁v₁ = A₂v₂
• Bernoulli's equation: P + ρgh + ½ρv² = constant

Definition: Bernoulli's principle states that an increase in the speed of a fluid occurs simultaneously with a decrease in pressure or a decrease in the fluid's potential energy.

The viscous force in fluids is given by F = -ηA$dv/dx$, where η is the coefficient of viscosity.

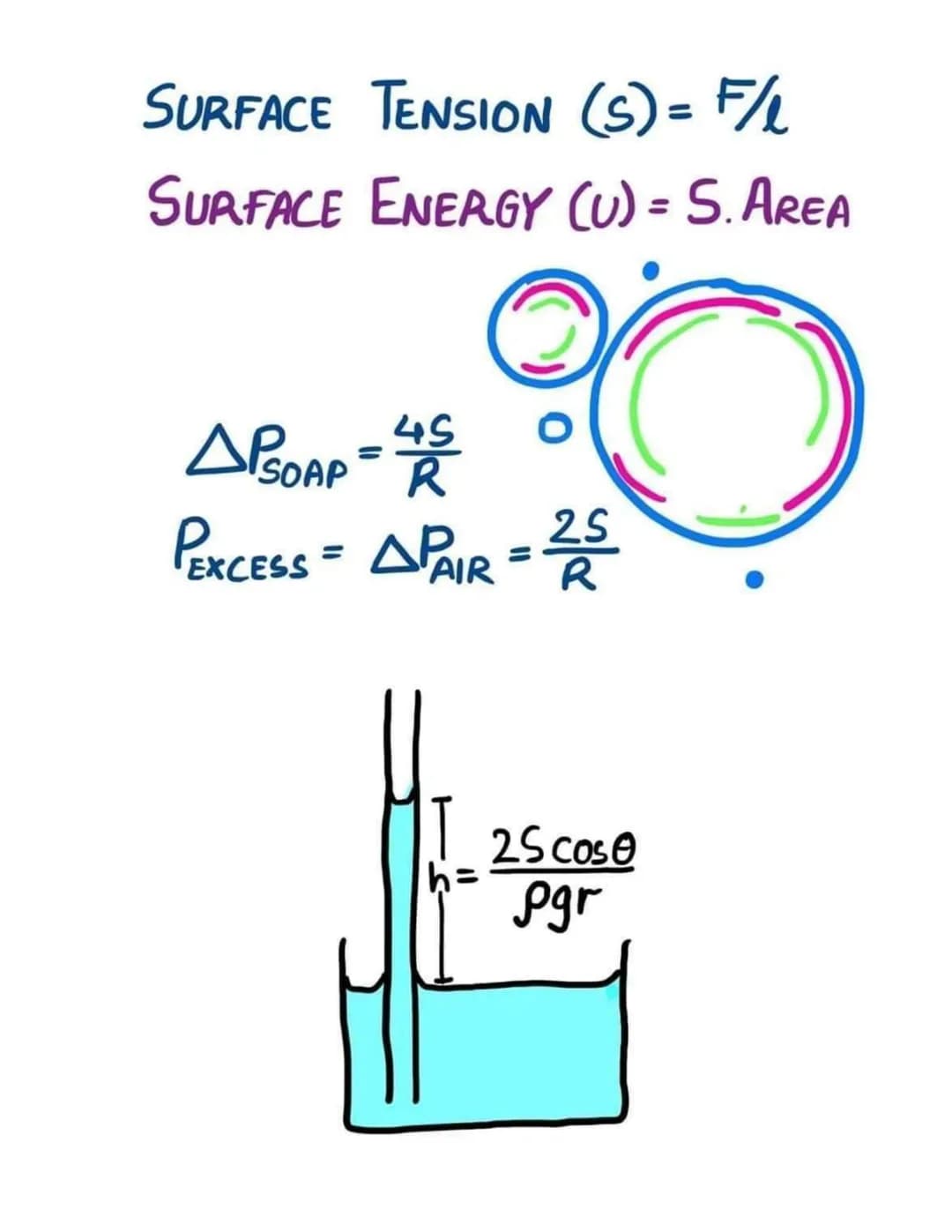

Surface tension $S$ is defined as the force per unit length acting on the surface of a liquid. The page includes formulas for:

• Surface energy: U = S × Area
• Excess pressure in soap bubbles and air bubbles
• Capillary rise: h = $2S cos θ$ / $ρgr$

Example: The surface tension of water at room temperature is approximately 0.072 N/m, which explains phenomena like water droplets forming spherical shapes and some insects being able to walk on water.

These concepts are crucial for understanding fluid behavior at interfaces and solving problems related to capillarity and surface phenomena.

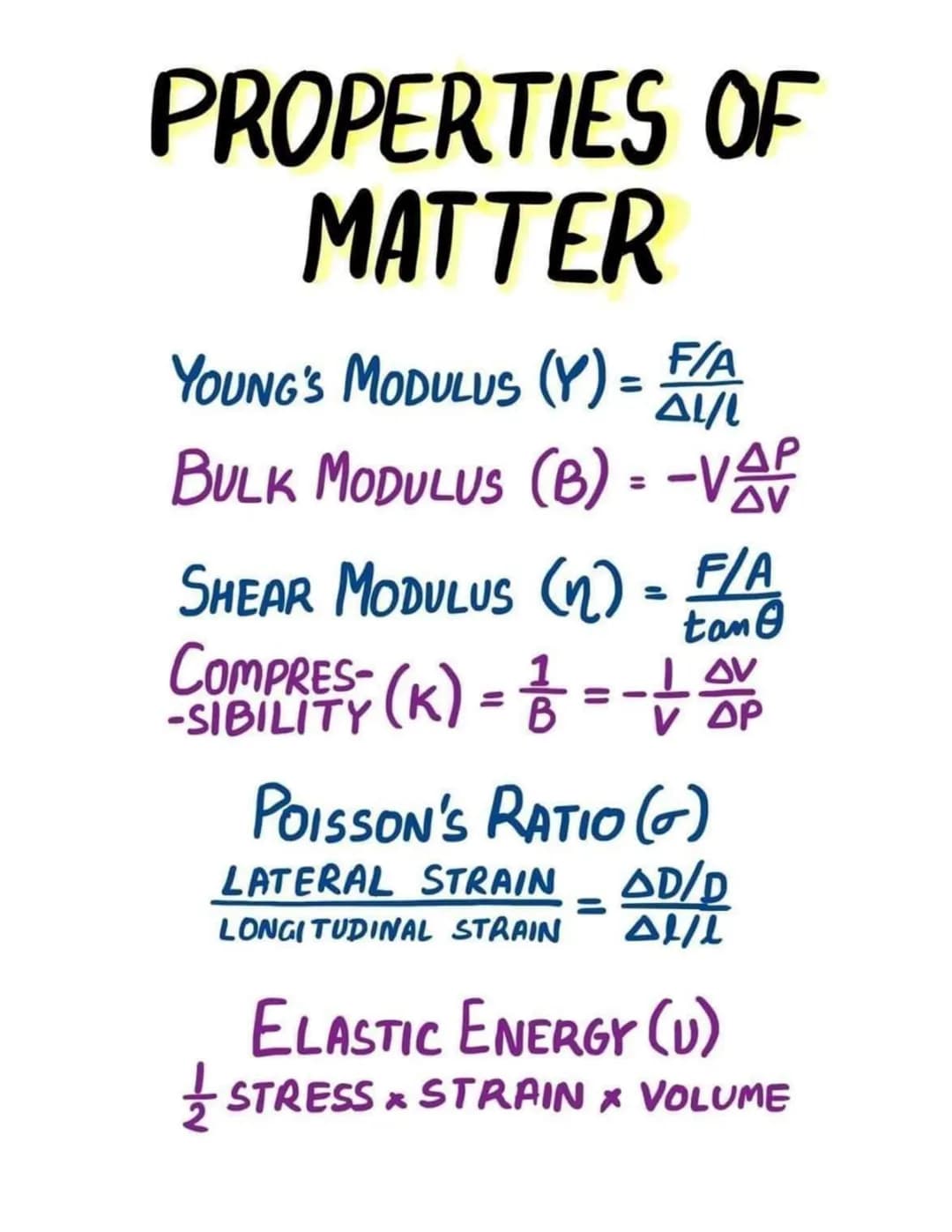

Properties of Matter

This page focuses on the elastic properties of materials, which are essential for understanding material behavior under stress.

Key elastic moduli are defined:

• Young's Modulus $Y$ = $F/A$ / $ΔL/L$
• Bulk Modulus $B$ = -V$ΔP/ΔV$
• Shear Modulus $η$ = $F/A$ / tan θ

Vocabulary: Young's Modulus is a measure of a material's stiffness in tension or compression.

The page also introduces:

• Compressibility $K$ = 1/B
• Poisson's Ratio $σ$ = Lateral strain / Longitudinal strain

Highlight: Poisson's ratio for most materials is between 0 and 0.5. A material with a Poisson's ratio of 0.5 is incompressible.

The elastic energy stored in a deformed material is given by:

U = ½ × Stress × Strain × Volume

This formula is crucial for calculating energy storage in elastic materials and understanding their behavior under load.

Simple Harmonic Motion

This page covers Simple Harmonic Motion $SHM$, a fundamental concept in physics that describes oscillatory motion.

Hooke's Law is introduced: F = -kx, where k is the spring constant and x is the displacement from equilibrium.

The equations of motion for SHM are given:

• Displacement: x = A sin$ωt + φ$
• Velocity: v = Aω cos$ωt + φ$
• Acceleration: a = -ω²x

Definition: Simple Harmonic Motion is a type of periodic motion where the restoring force is directly proportional to the displacement and acts in the direction opposite to that of displacement.

The period of oscillation is given by:

T = 2π √$m/k$ for a mass-spring system T = 2π √$L/g$ for a simple pendulum

Example: A mass of 0.1 kg attached to a spring with spring constant 10 N/m will oscillate with a period of approximately 0.63 seconds.

The energy in SHM is conserved, with kinetic and potential energy interchanging:

E = K + U = ½kA² = ½mω²A²

This page provides essential formulas for analyzing oscillatory systems and solving problems related to SHM in physics exams.

Kepler's Laws of Planetary Motion

This page introduces Kepler's Laws of Planetary Motion, which describe the motion of planets around the Sun.

Highlight: Kepler's laws were a breakthrough in astronomy, providing a mathematical description of planetary orbits that paved the way for Newton's theory of gravitation.

Kepler's Three Laws are stated:

1. The orbit of each planet is an ellipse with the Sun at one of the two foci.
2. A line segment joining a planet and the Sun sweeps out equal areas during equal intervals of time.
3. The square of the orbital period of a planet is directly proportional to the cube of the semi-major axis of its orbit.

Definition: The semi-major axis of an ellipse is half the length of the major axis, which runs from the center through both foci and ends at the edges of the ellipse.

The third law is mathematically expressed as T² ∝ a³, where T is the orbital period and a is the semi-major axis of the orbit.

Example: Application of Kepler's third law can be seen in the relationship between the orbital periods and distances of planets in our solar system. For instance, Jupiter's orbital period is about 11.9 Earth years, and its average distance from the Sun is about 5.2 times that of Earth's.

Understanding how Kepler's laws affect future astronomers is crucial, as these laws form the foundation for modern celestial mechanics and have applications in satellite orbit calculations and space exploration.

Rolling Motion

This page covers the dynamics of rolling motion, an important topic in rigid body mechanics.

The no-slip condition for rolling motion is introduced: v = ωr, where v is the velocity of the center of mass, ω is the angular velocity, and r is the radius of the rolling object.

Definition: Rolling without slipping occurs when the point of contact between the rolling object and the surface has zero velocity relative to the surface.

The acceleration of a rolling object on an inclined plane is given by:

a = $g sin θ$ / $1 + I / mr²$

Where g is the acceleration due to gravity, θ is the angle of inclination, I is the moment of inertia about the center of mass, m is the mass, and r is the radius.

Example: A solid sphere rolling down an incline will accelerate more slowly than a hollow sphere of the same mass and radius due to its different moment of inertia.

The page also provides equations for the time taken and distance traveled by a rolling object starting from rest:

t = $2H / a$^$1/2$ s = $2H / sin θ$ / $1 + I / mr²$

Where H is the vertical height descended.

These formulas are essential for solving problems involving rolling motion in physics exams and understanding the behavior of rotating objects in various scenarios.

Rotational Dynamics

This page focuses on rotational dynamics, covering concepts related to the motion of rigid bodies about an axis.

The instantaneous axis of rotation is introduced, with the velocity of any point on a rigid body given by:

v = ω × r

Where ω is the angular velocity vector and r is the position vector from the axis of rotation to the point.

Vocabulary: The instantaneous axis of rotation is the axis about which a rigid body is rotating at a given instant in time.

The kinetic energy of a rotating body is expressed as:

K = ½Iω²

Where I is the moment of inertia about the axis of rotation.

Highlight: The total kinetic energy of a rolling object is the sum of its translational and rotational kinetic energies: K = ½mv² + ½Iω²

This formula is crucial for understanding energy distribution in rotating and rolling objects.

The page also touches on the concept of rolling without slipping, which is essential for analyzing the motion of wheels, cylinders, and spheres on surfaces.

These concepts form the foundation for understanding more complex rotational systems and are frequently tested in physics exams.

Moment of Inertia Theorems

This page introduces important theorems related to the moment of inertia of rigid bodies.

The Perpendicular Axis Theorem is stated:

Iz = Ix + Iy

This theorem applies to planar objects and relates the moment of inertia about an axis perpendicular to the plane to the moments of inertia about two perpendicular axes in the plane.

Example: For a rectangular plate, if we know the moments of inertia about two perpendicular axes in the plane of the plate, we can easily calculate the moment of inertia about an axis perpendicular to the plate.

The Parallel Axis Theorem is also presented:

I = Icm + md²

Where I is the moment of inertia about any axis, Icm is the moment of inertia about a parallel axis through the center of mass, m is the mass of the object, and d is the perpendicular distance between the axes.

Highlight: The Parallel Axis Theorem is particularly useful for calculating the moment of inertia of compound objects or objects rotating about axes that don't pass through their center of mass.

These theorems are fundamental in rigid body dynamics and are essential tools for solving problems involving rotational motion in physics exams.
