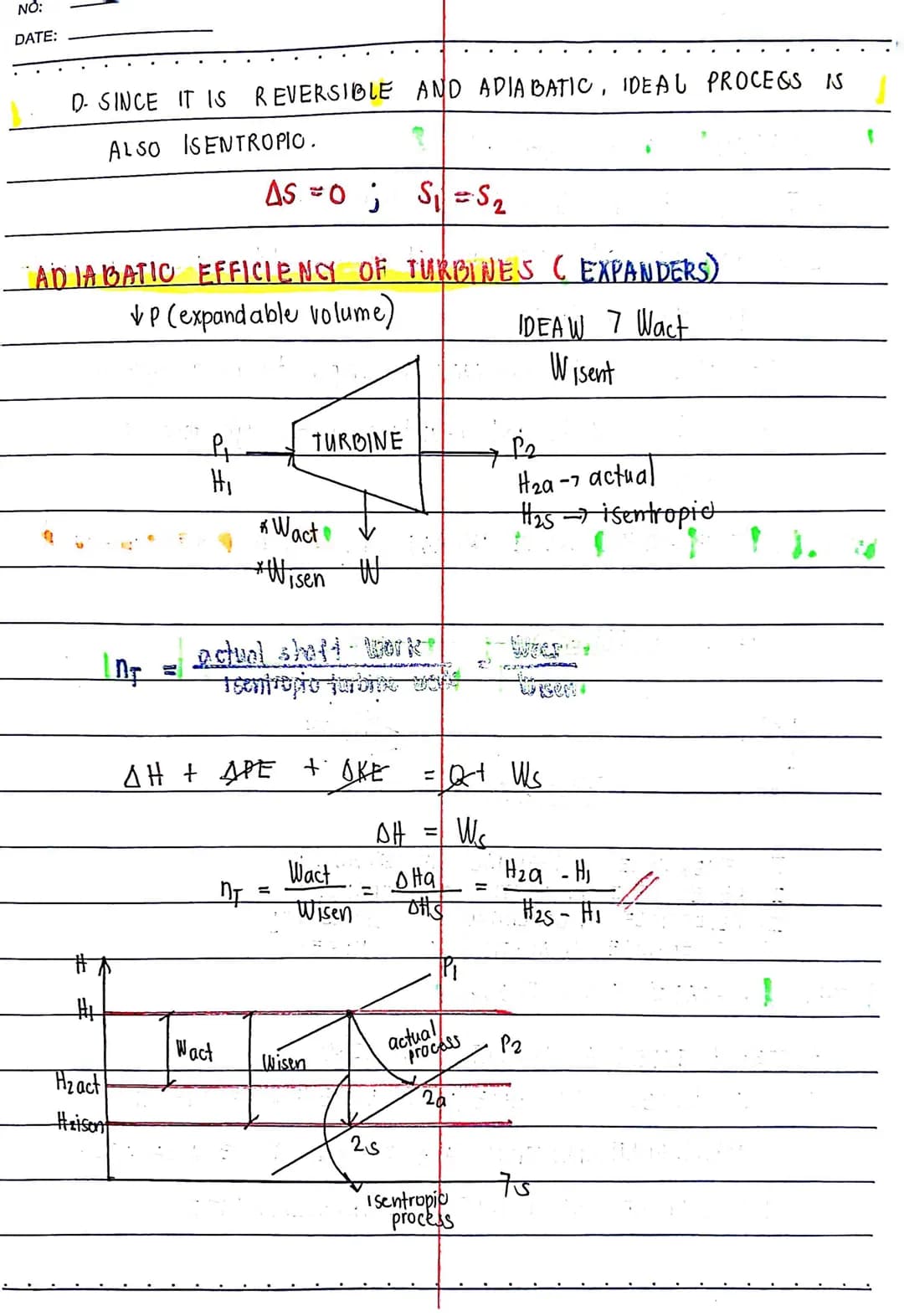

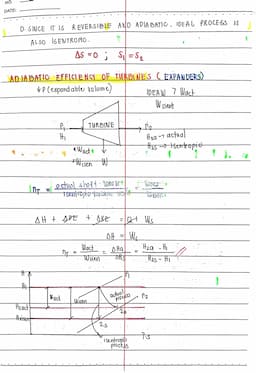

Adiabatic Efficiency of Turbines

This page delves into the concept of adiabatic efficiency for turbines, also known as expanders. It presents the adiabatic efficiency of turbines in power cycles formula and explains its significance in evaluating turbine performance.

Definition: Adiabatic efficiency of a turbine is the ratio of actual shaft work to the ideal isentropic turbine work.

The formula for adiabatic turbine efficiency is given as:

η = W_act / W_isen = $H₁ - H₂a$ / $H₁ - H₂s$

Where:

• W_act is the actual shaft work
• W_isen is the isentropic turbine work
• H₁ is the inlet enthalpy
• H₂a is the actual outlet enthalpy
• H₂s is the isentropic outlet enthalpy

Example: In an ideal isentropic process, the entropy remains constant $S₁ = S₂$. However, in real turbines, the actual process deviates from this ideal.

The page includes a pressure-enthalpy diagram illustrating the difference between the actual and isentropic processes in a turbine. This visual aid helps in understanding the concept of adiabatic efficiency and its relation to enthalpy changes.

Highlight: The adiabatic efficiency formula provides a way to quantify how closely a real turbine approaches ideal performance, which is crucial for optimizing power cycle designs.

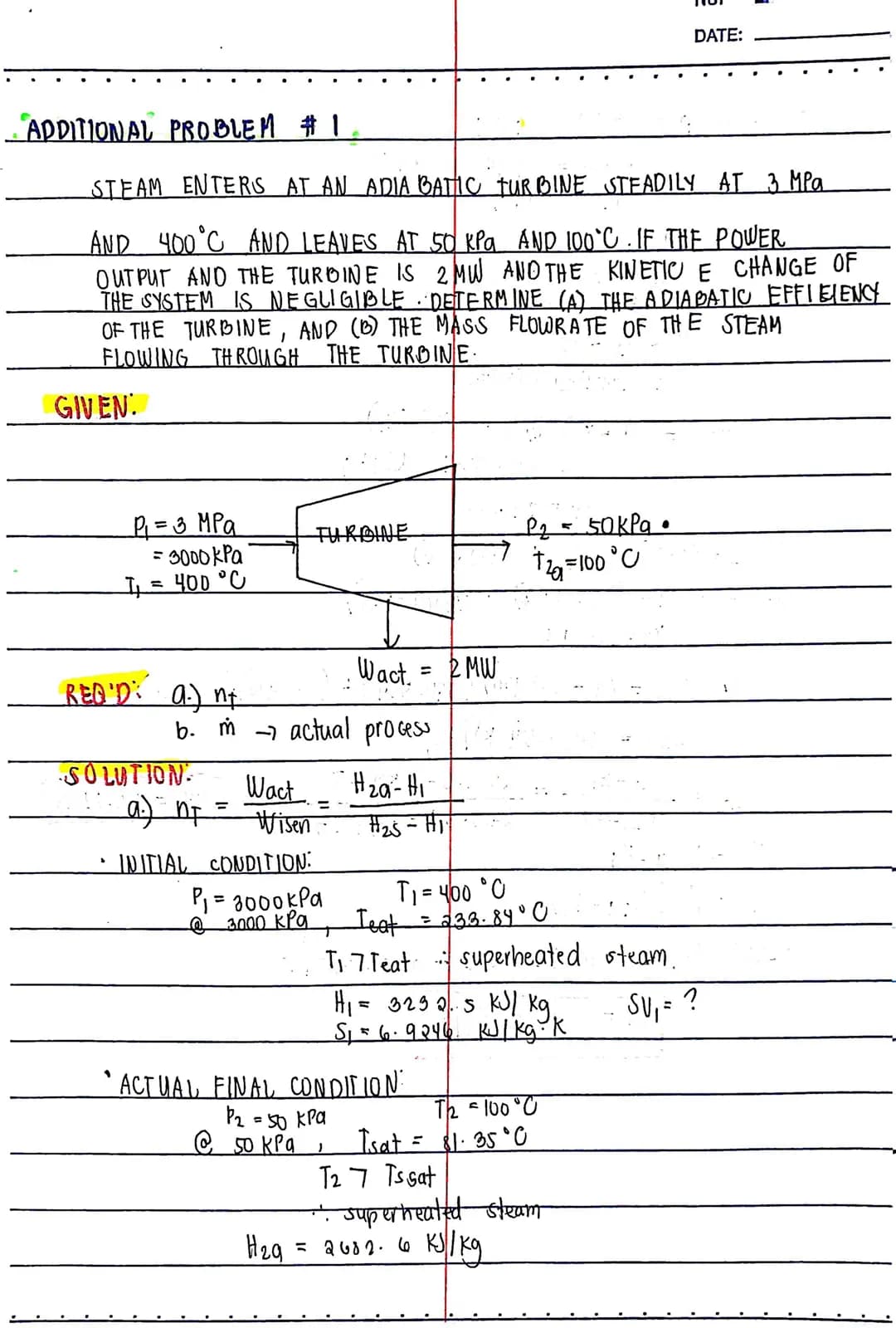

Steam Turbine Efficiency Calculation

This page presents a detailed problem and solution for calculating the adiabatic efficiency of a steam turbine. The problem involves steam entering an adiabatic turbine at specific inlet conditions and exiting at given outlet conditions.

Example: Steam enters an adiabatic turbine at 3 MPa and 400°C, leaving at 50 kPa and 100°C. The turbine produces 2 MW of power output.

The solution process demonstrates how to use steam tables and the isentropic efficiency of turbine formula to determine the turbine's performance. Key steps include:

1. Identifying inlet and outlet states
2. Determining enthalpies and entropies from steam tables
3. Calculating the isentropic outlet state
4. Applying the adiabatic efficiency formula

Highlight: This problem illustrates the practical application of thermodynamic principles in evaluating real-world turbine performance.

The page also touches on the concept of superheated steam and how to handle situations where the final state is a saturated mixture. This knowledge is crucial for accurate steam turbine efficiency calculation.

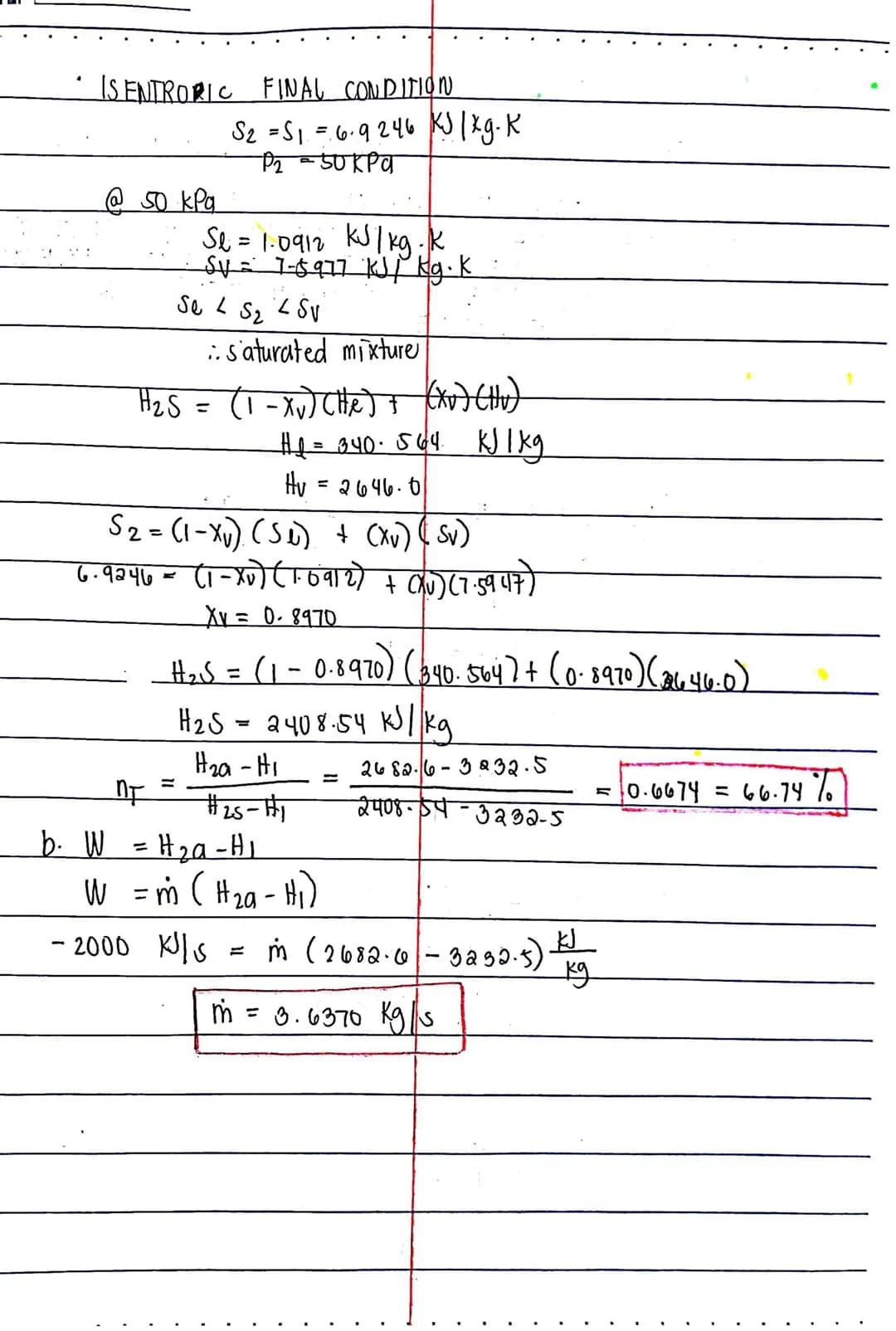

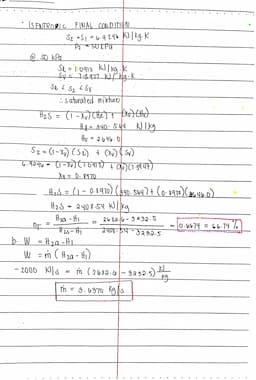

Isentropic Efficiency and Mass Flow Rate Calculation

This page continues the steam turbine problem, focusing on calculating the isentropic efficiency and mass flow rate. It demonstrates the application of the isentropic efficiency formula and mass balance principles in turbine analysis.

The solution process involves:

1. Determining the isentropic outlet state using entropy values
2. Calculating the quality of the steam at the isentropic outlet condition
3. Computing the isentropic outlet enthalpy
4. Applying the isentropic efficiency formula to find the turbine efficiency
5. Using the power output and enthalpy change to calculate the mass flow rate

Vocabulary: Quality in steam calculations refers to the mass fraction of vapor in a saturated liquid-vapor mixture.

Highlight: The calculated adiabatic efficiency of 66.74% provides insight into the turbine's real-world performance compared to an ideal isentropic process.

The page concludes with the determination of the steam mass flow rate, which is crucial for sizing and designing turbine systems. This problem serves as a comprehensive example of applying thermodynamic principles to analyze and evaluate turbine performance in power cycles.

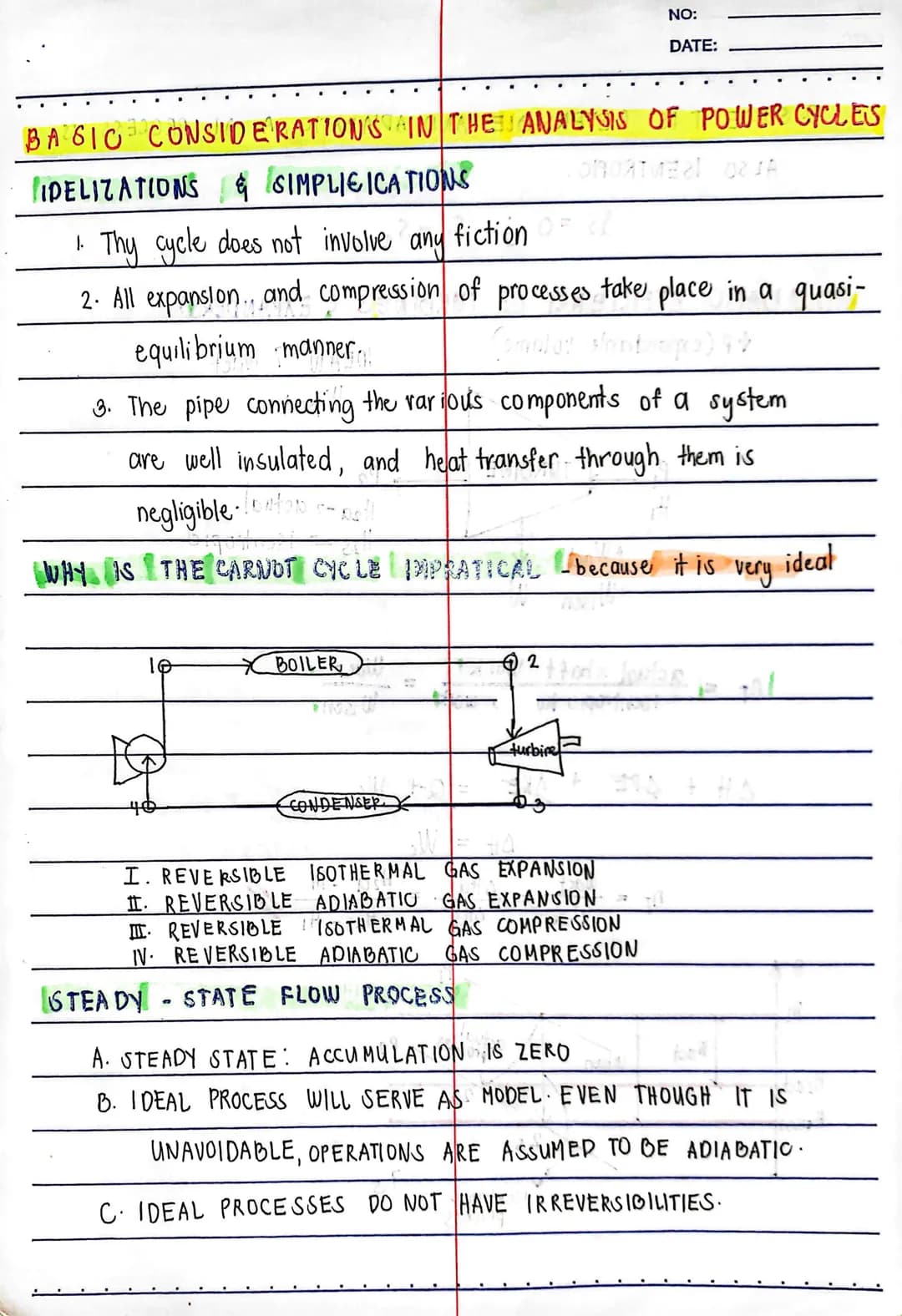

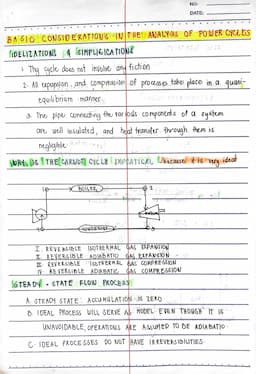

Basic Considerations in Power Cycle Analysis

This page introduces fundamental concepts for analyzing power cycles, including key idealizations and simplifications. The Carnot cycle is discussed as an ideal but impractical model. Steady-state flow processes are explained as important for real-world power systems.

Definition: A steady-state flow process has zero accumulation, with mass flow rates in and out being equal.

Highlight: Ideal processes serve as useful models, even though some irreversibilities are unavoidable in real systems.

Key idealizations for power cycle analysis include:

1. No friction in the cycle
2. Quasi-equilibrium expansion and compression processes
3. Well-insulated pipes with negligible heat transfer

Vocabulary: Quasi-equilibrium refers to a process occurring slowly enough that the system remains very close to equilibrium states throughout.

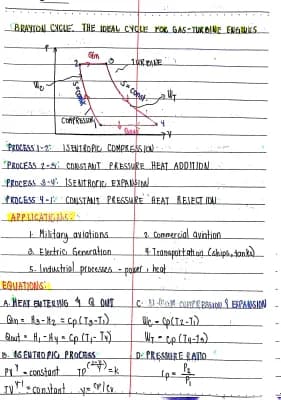

The page also touches on why the Carnot cycle, while theoretically ideal, is not practical for real power systems. This sets the stage for discussing more realistic cycle models like the Brayton cycle.
