Instrument Symbols and Valve Designations in P&IDs

This page delves deeper into the specific symbols used in Piping and Instrumentation Diagrams (P&IDs) for instruments, valves, and various line types. Understanding these symbols is crucial for accurately interpreting and creating P&IDs in industrial settings.

Instrument Symbols

The guide provides detailed information on instrument symbols associated with P&IDs. These symbols are essential for representing various devices and their locations within a process system.

Highlight: Instrument symbols in P&IDs not only show the type of instrument but also indicate its physical location within the process or control system.

Transmitting Device Symbols

Transmitting devices play a crucial role in process control systems, sending information from the field to control rooms or other parts of the system. The guide includes symbols for various types of transmitting devices, which are vital for understanding how data flows through the system.

Valve Symbols

Valves are critical components in any piping system, controlling the direction, flow rate, and pressure of fluids. The guide covers various valve symbols, including:

• Basic valve symbols
• Valve actuators, which allow for remote operation and increased mechanical advantage
• Control valve symbols, which combine a valve with an actuator

Definition: A valve actuator is a mechanism for opening and closing a valve remotely or automatically, often used in process control systems to regulate flow.

Control Valve Designations

Control valve designations are specific symbols that identify the function of a control valve within the system. These designations are crucial for understanding the role each valve plays in the overall process.

Example: A control valve designation might indicate whether a valve is used for flow control, pressure regulation, or temperature control within a specific part of the process.

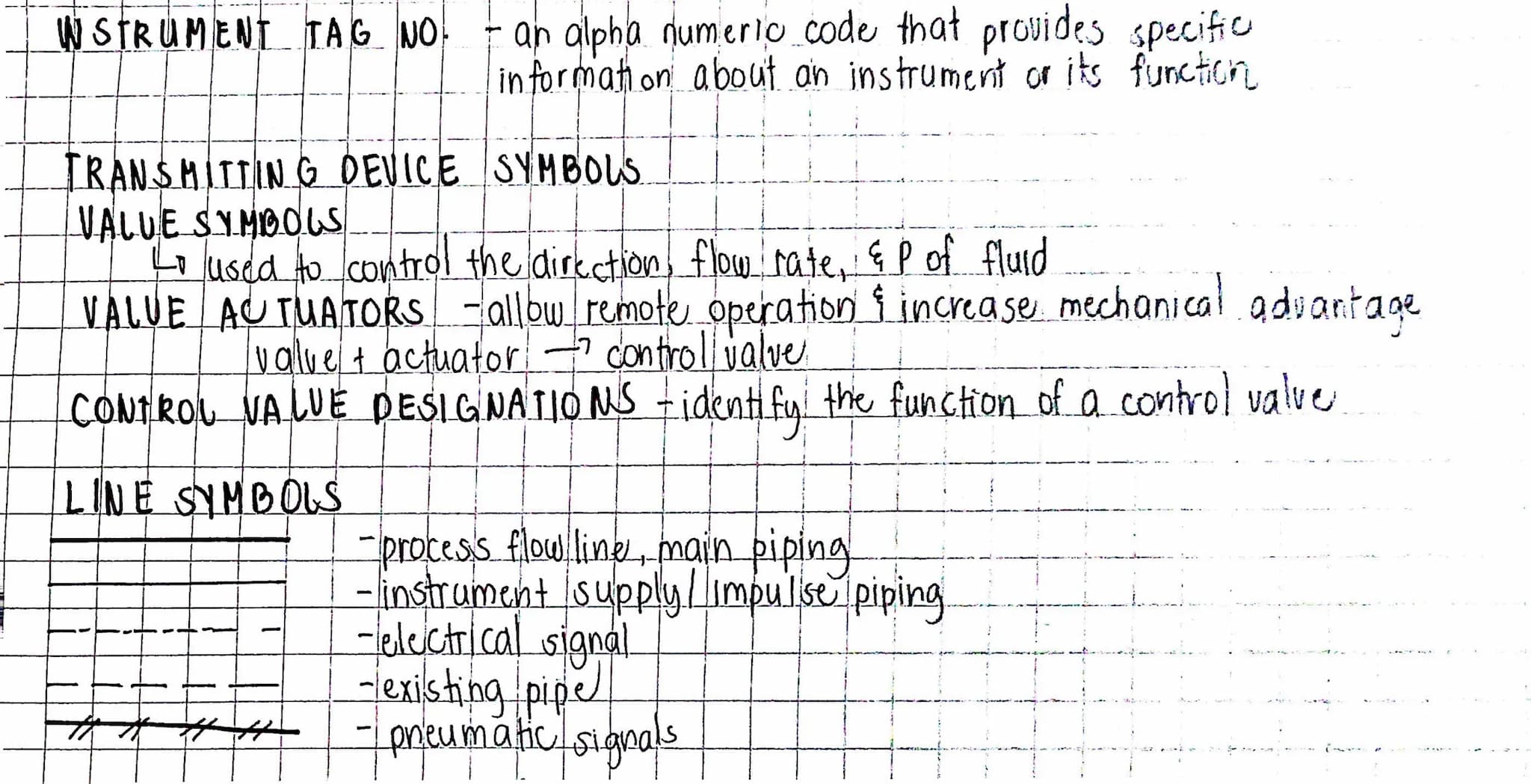

Line Symbols

Different types of lines in P&IDs represent various connections and flows within the system. The guide covers several important line symbols:

• Process flow lines and main piping
• Instrument supply and impulse piping
• Electrical signal lines
• Existing pipe lines
• Pneumatic signal lines

Vocabulary: Impulse piping refers to the small-diameter pipes that connect instruments to the main process pipes, allowing for pressure or flow measurement without disrupting the main flow.

Understanding these line symbols is crucial for tracing the flow of materials, signals, and data throughout the process system represented in a P&ID.

This detailed breakdown of instrument symbols, valve designations, and line symbols provides essential knowledge for anyone working with P&IDs in industrial settings. It enables accurate interpretation of complex process diagrams and facilitates effective communication among engineers, operators, and other professionals involved in process control and plant operations.

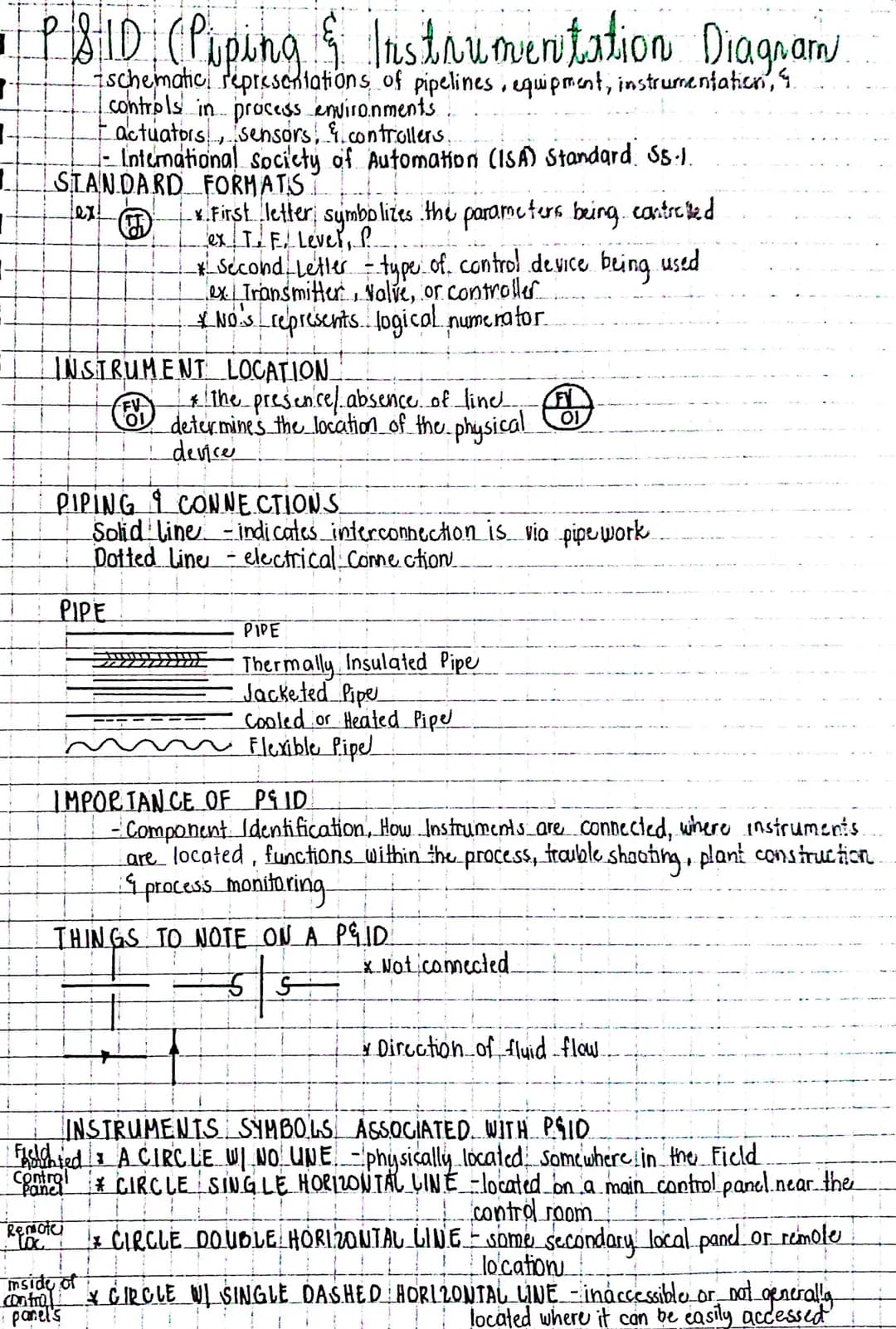

Understanding P&ID Symbols and Formats

P&ID (Piping & Instrumentation Diagram) is a schematic representation of pipelines, equipment, instrumentation, and controls in process environments. These diagrams are essential for understanding the layout and functionality of industrial processes.

Definition: P&ID stands for Piping & Instrumentation Diagram, which is a detailed schematic representation of process control systems in industrial environments.

The International Society of Automation (ISA) Standard S5.1 provides the guidelines for P&ID symbols and formats. This standardization ensures consistency across different industries and facilitates easier interpretation of these complex diagrams.

Highlight: The ISA Standard S5.1 is crucial for maintaining uniformity in P&ID symbols across various industries, making it easier for professionals to interpret diagrams from different sources.

Instrument Location and Identification

In P&IDs, instrument locations are denoted by specific symbols:

• A circle with no line indicates an instrument physically located in the field.
• A circle with a single horizontal line represents an instrument located on a main control panel near the control room.
• A circle with a double horizontal line signifies an instrument on a secondary local panel or remote location.
• A circle with a single dashed horizontal line shows an inaccessible instrument or one not easily accessed.

Example: A temperature transmitter located in the field would be represented by a circle with no line, while the same transmitter on a main control panel would have a single horizontal line through the circle.

Instrument tag numbers, which are alphanumeric codes, provide specific information about an instrument or its function. The first letter symbolizes the parameter being controlled (e.g., T for Temperature, F for Flow, L for Level, P for Pressure), while the second letter indicates the type of control device being used (e.g., Transmitter, Valve, or Controller).

Piping and Connections

P&IDs use different line types to represent various connections:

• Solid lines indicate interconnections via pipework.
• Dotted lines represent electrical connections.

Vocabulary: Pipework refers to the system of pipes used to convey fluids in an industrial process.

The guide also covers different types of pipes, including thermally insulated pipes, jacketed pipes, cooled or heated pipes, and flexible pipes. Each type is represented by a unique symbol in P&IDs.

Importance of P&IDs

P&IDs serve several critical functions in industrial processes:

1. Component Identification
2. Showing how instruments are connected
3. Indicating where instruments are located
4. Illustrating functions within the process
5. Aiding in troubleshooting
6. Guiding plant construction
7. Facilitating process monitoring

Quote: "P&IDs are essential for component identification, understanding instrument connections, locating instruments, illustrating process functions, troubleshooting, plant construction, and process monitoring."

This comprehensive overview of P&ID symbols and their meanings provides a solid foundation for anyone working with or studying industrial process control systems.
