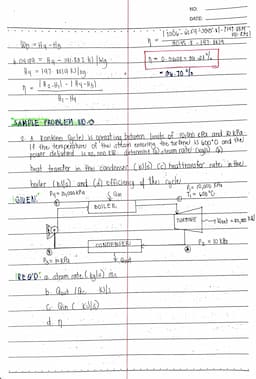

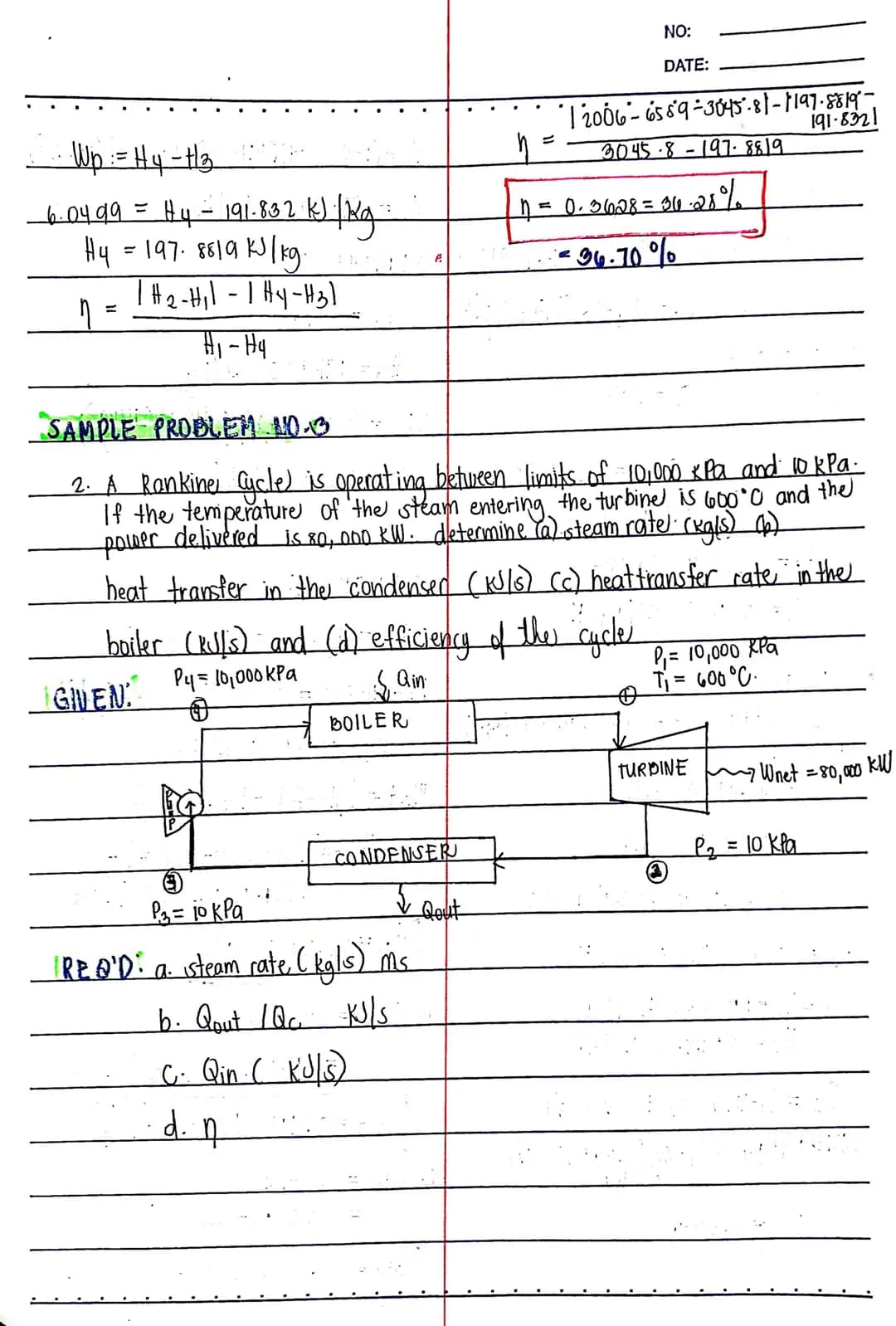

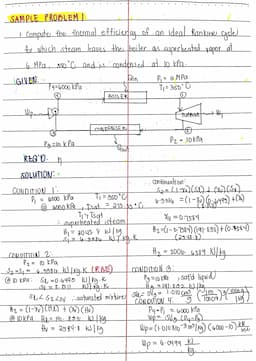

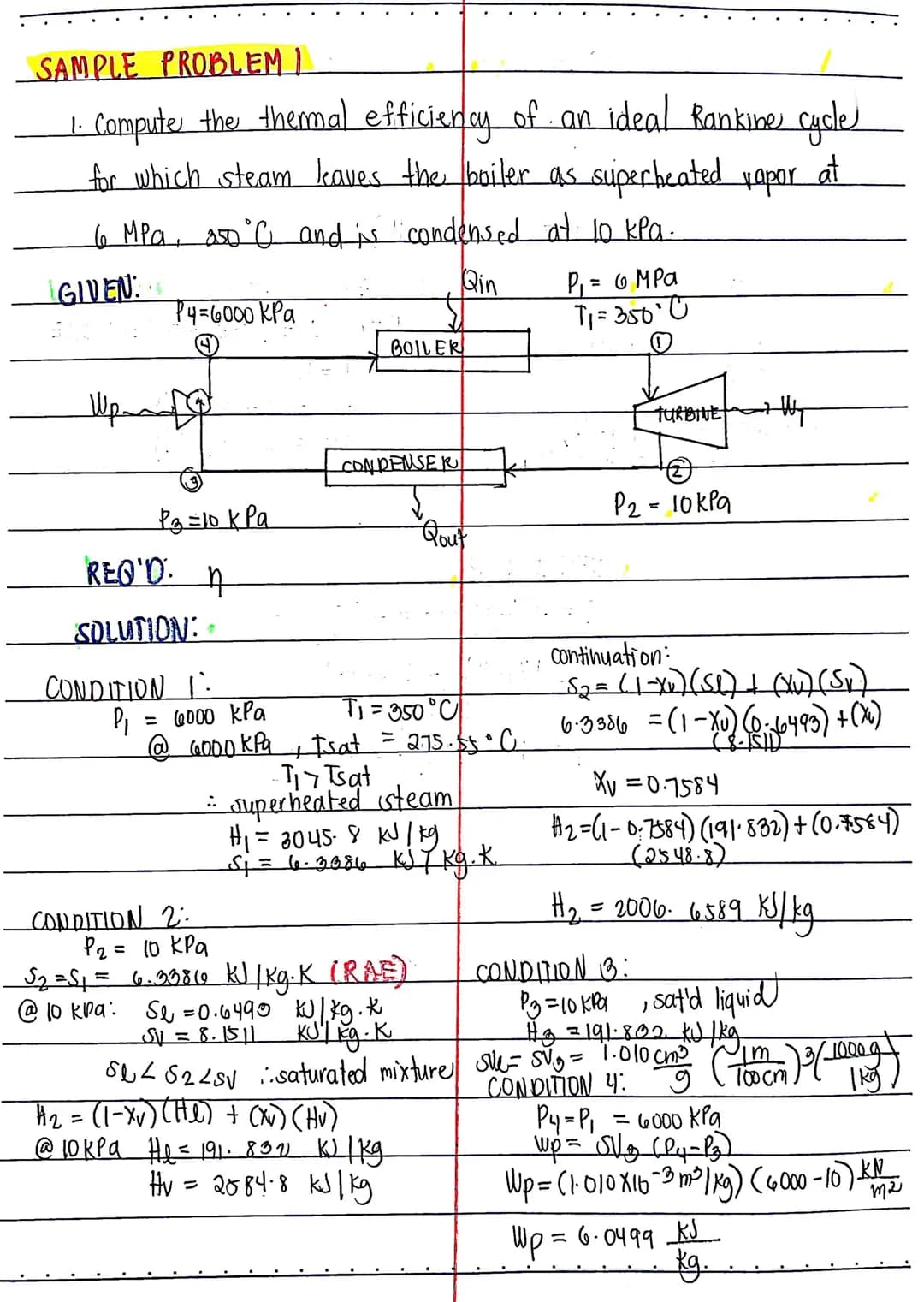

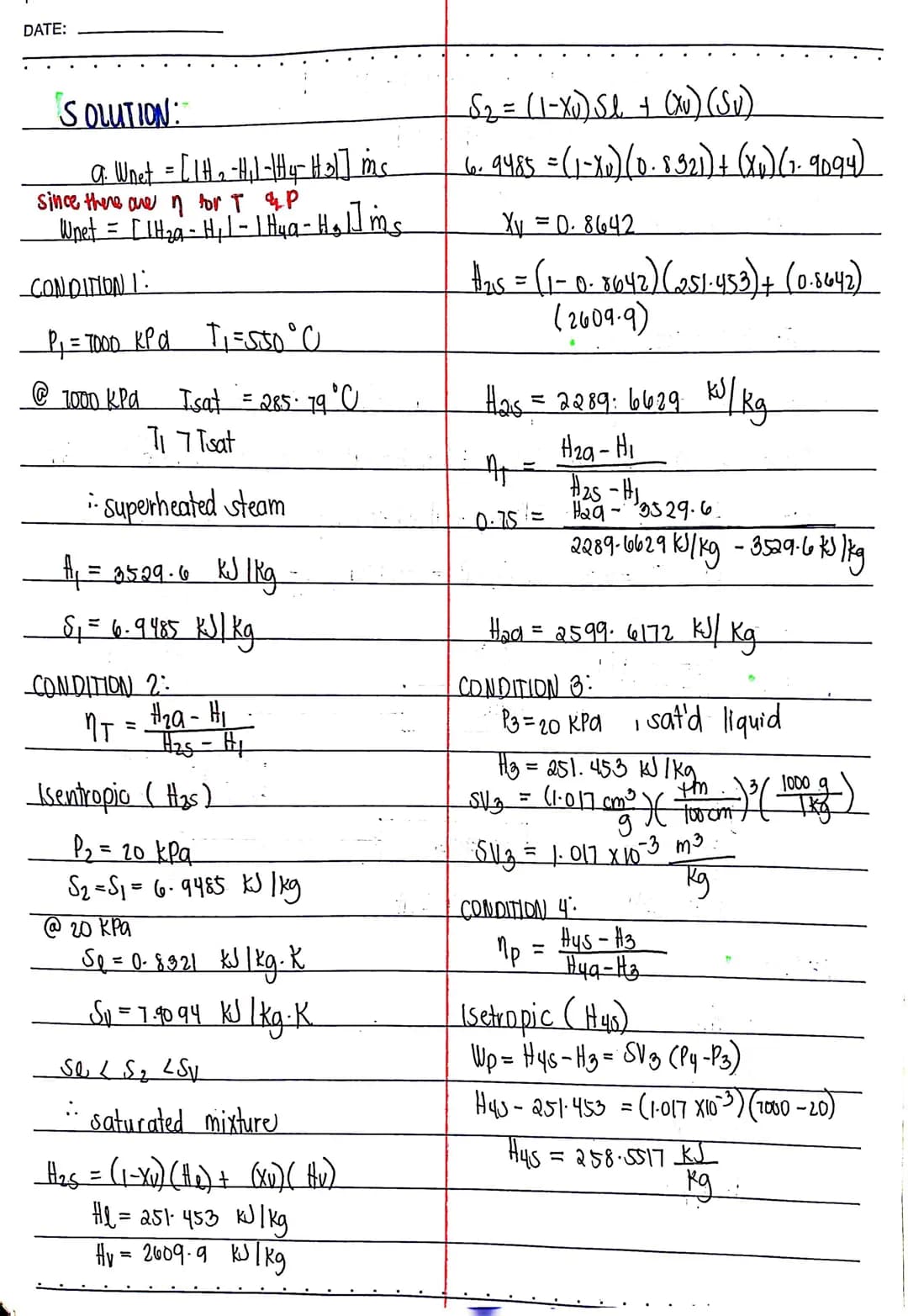

SAMPLE PROBLEM I 1. Compute the thermal efficiency of an ideal Rankine cycle for which steam leaves the boiler as superheated yapar at 6 MPa

View

Rankine Cycle Analysis with Given Power Output

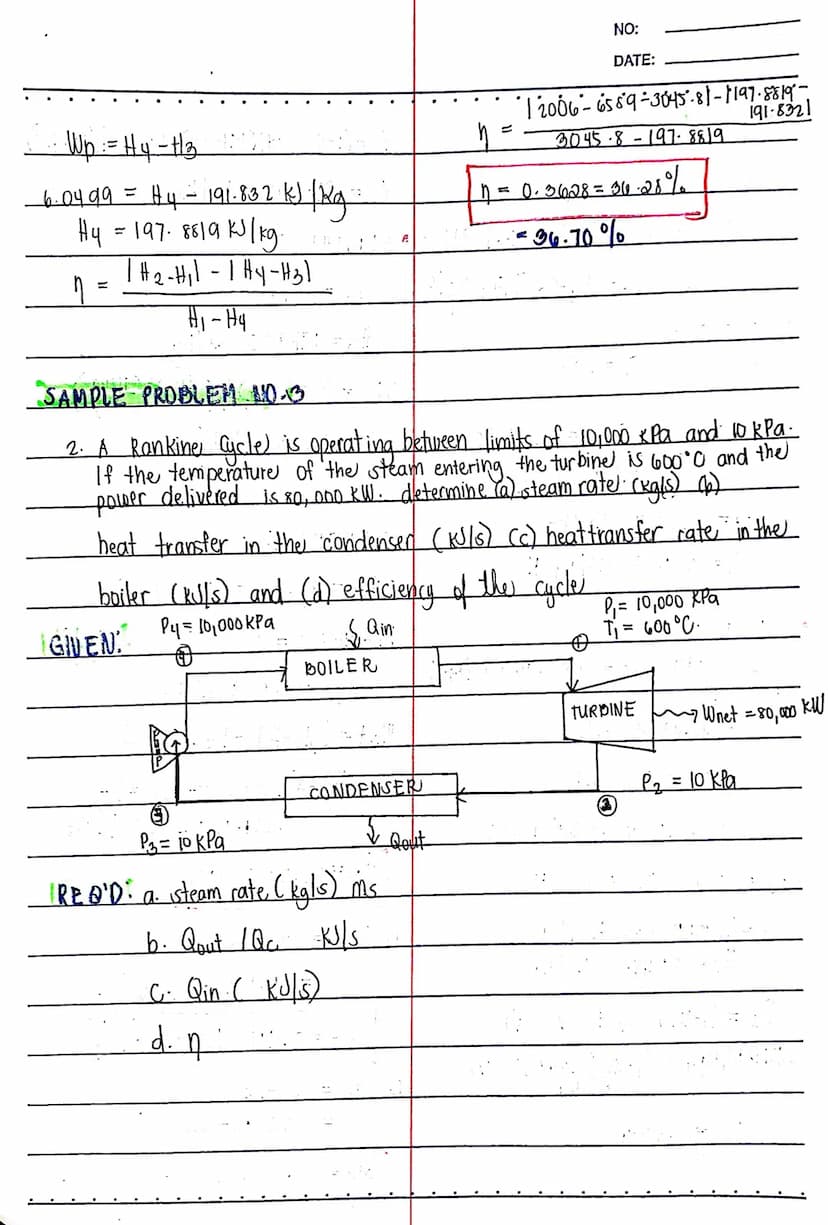

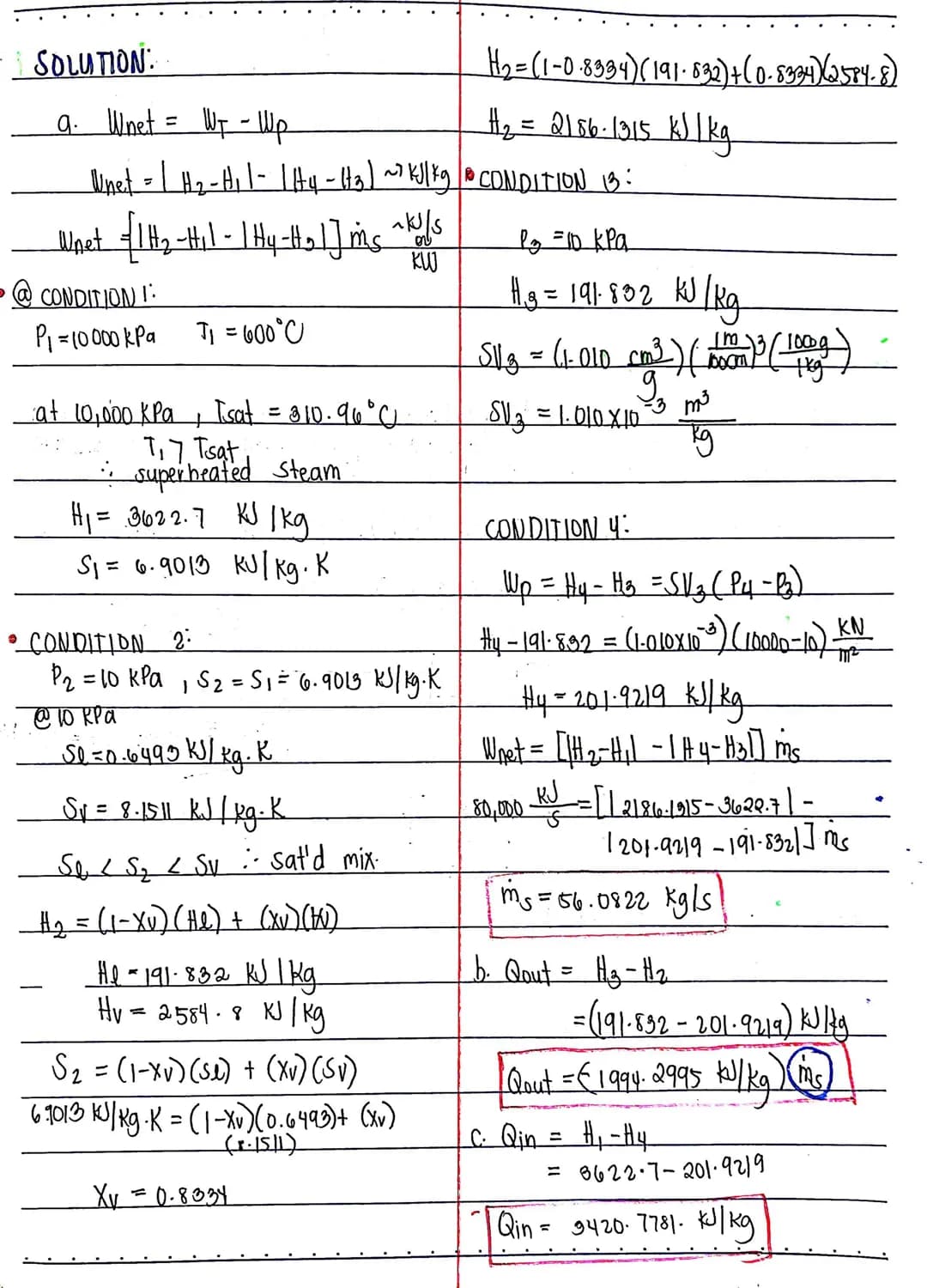

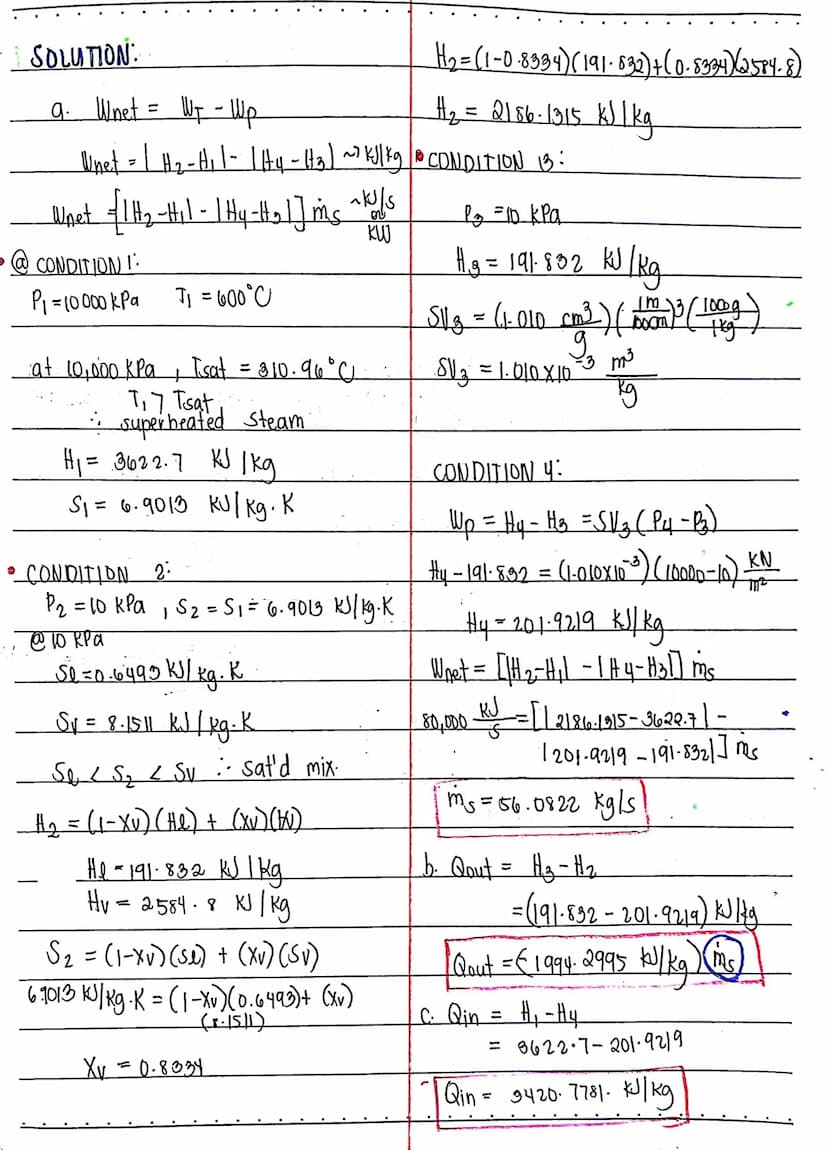

This page presents a more complex Rankine cycle problem, where the cycle operates between 10,000 kPa and 10 kPa, with steam entering the turbine at 600°C and delivering 80,000 kW of power.

The problem requires calculating:

  1. Steam rate kg/skg/s
  2. Heat transfer in the condenser kJ/skJ/s
  3. Heat transfer rate in the boiler kJ/skJ/s
  4. Cycle efficiency

Definition: Steam rate - The mass flow rate of steam through the cycle, typically measured in kilograms per second.

The solution process involves:

  1. Determining thermodynamic properties at each state point
  2. Calculating the work done by the turbine and pump
  3. Computing the steam rate based on the given power output
  4. Determining heat transfer rates in the boiler and condenser

Highlight: The calculated steam rate is 56.0822 kg/s, demonstrating the application of boiler capacity kg/hr calculations in a practical scenario.

This problem showcases the application of Rankine cycle efficiency of steam power plant calculations in a real-world context.

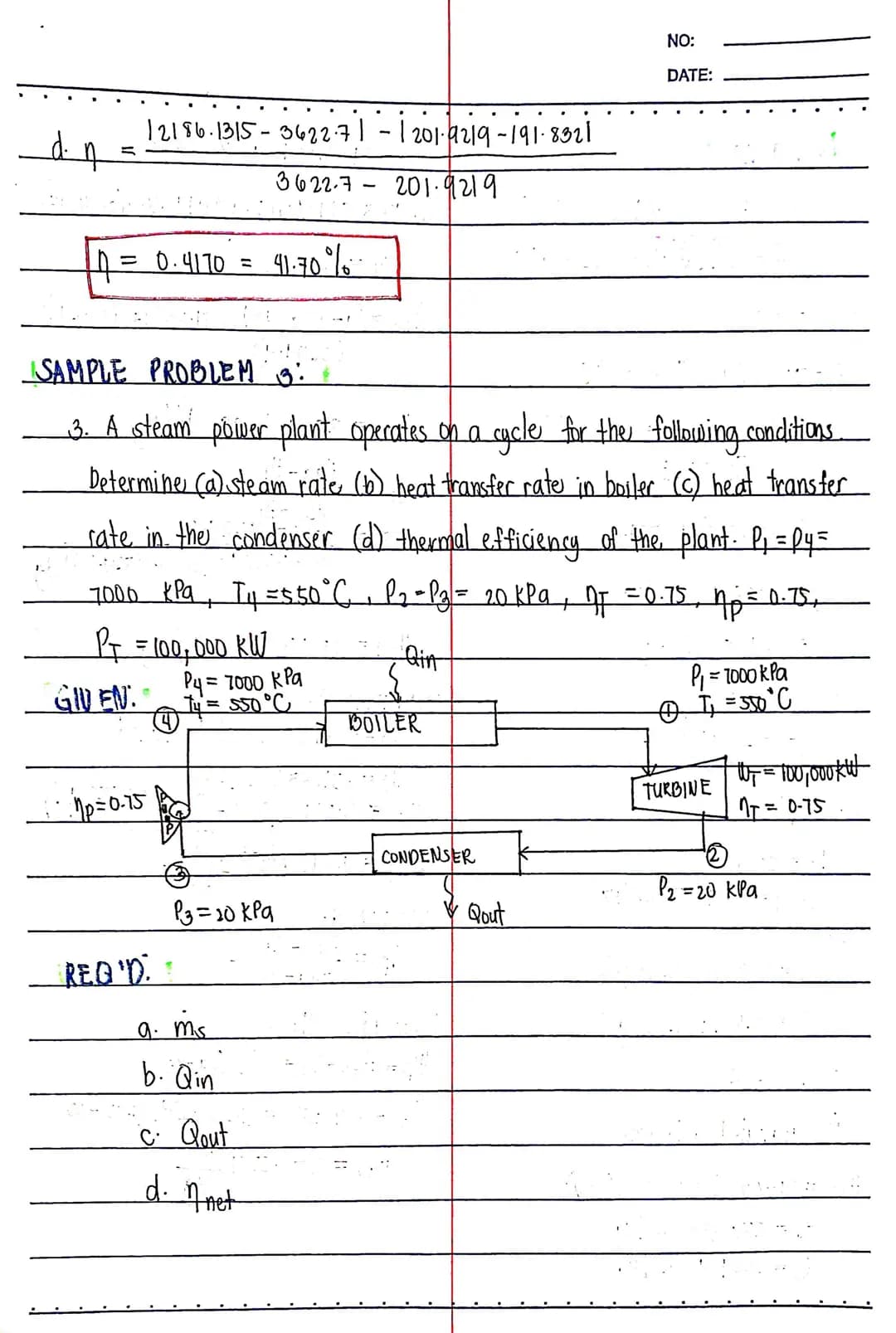

SAMPLE PROBLEM I 1. Compute the thermal efficiency of an ideal Rankine cycle for which steam leaves the boiler as superheated yapar at 6 MPa

View

Steam Power Plant Cycle Analysis

This page presents a comprehensive problem involving a steam power plant operating on a Rankine cycle. The problem provides specific conditions for the cycle and requires the calculation of various parameters.

Given conditions:

  • P₁ = P₄ = 7000 kPa
  • T₁ = 550°C
  • P₂ = P₃ = 20 kPa
  • Turbine efficiency ηtηₜ = 0.75
  • Pump efficiency ηpηₚ = 0.75
  • Power output = 100,000 kW

The problem requires calculating: a. Steam rate b. Heat transfer rate in the boiler c. Heat transfer rate in the condenser d. Thermal efficiency of the plant

Example: The solution demonstrates the use of isentropic efficiencies for both the turbine and pump, showing how real processes deviate from ideal conditions.

The solution process involves:

  1. Analyzing each state point in the cycle
  2. Calculating actual enthalpy values using isentropic efficiencies
  3. Determining the steam rate based on the given power output
  4. Computing heat transfer rates and overall thermal efficiency

Highlight: This problem illustrates the application of boiler steam problems rankine cycle efficiency calculations in a complex power plant scenario.

The detailed solution provides insights into power plant boiler steam problems rankine cycle efficiency and demonstrates the use of thermodynamic tables and equations.

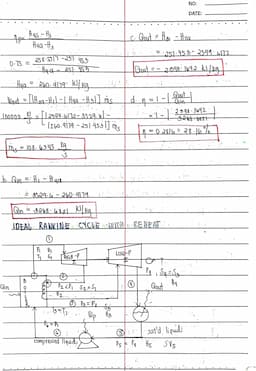

SAMPLE PROBLEM I 1. Compute the thermal efficiency of an ideal Rankine cycle for which steam leaves the boiler as superheated yapar at 6 MPa

View

Ideal Rankine Cycle with Reheat

This page introduces the concept of an ideal Rankine cycle with reheat, presenting a P-v diagram to illustrate the process.

Key points:

  1. The cycle includes two turbine stages: high-pressure and low-pressure
  2. Steam is reheated between the two turbine stages
  3. The process aims to improve overall cycle efficiency

Definition: Reheat - A process in steam power cycles where steam is returned to the boiler for additional heating after partial expansion in the high-pressure turbine.

The P-v diagram shows:

  • Compression in the pump 3−43-4
  • Heat addition in the boiler 4−14-1
  • Expansion in the high-pressure turbine 1−21-2
  • Reheat process 2−52-5
  • Expansion in the low-pressure turbine 5−65-6
  • Condensation 6−36-3

Highlight: The reheat process in the Rankine cycle can significantly improve the overall thermal efficiency of the power plant.

This page provides a visual representation of the Rankine cycle P-v diagram, helping to understand the thermodynamic processes involved in steam power generation with reheat.

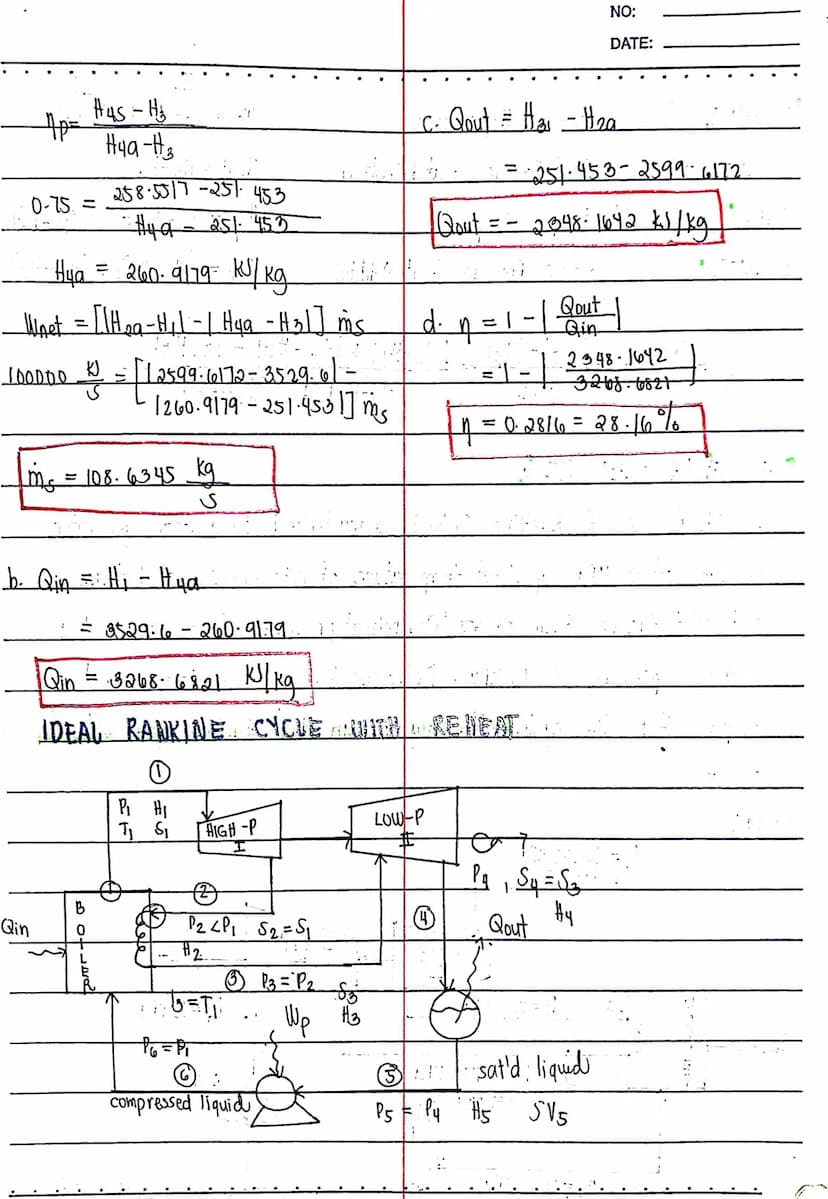

SAMPLE PROBLEM I 1. Compute the thermal efficiency of an ideal Rankine cycle for which steam leaves the boiler as superheated yapar at 6 MPa

View

Continuation of Steam Power Plant Analysis

This page continues the solution of the steam power plant problem from the previous page, focusing on the final calculations and results.

Key calculations:

  1. Determination of actual enthalpy at turbine exit H2aH₂ₐ
  2. Calculation of actual enthalpy at pump exit H4aH₄ₐ
  3. Computation of steam rate ms˙mṡ
  4. Determination of heat input in the boiler QinQᵢₙ
  5. Calculation of heat output in the condenser QoutQₒᵤₜ
  6. Computation of overall thermal efficiency ηη

Results:

  • Steam rate: 108.6345 kg/s
  • Heat input: 3268.6821 kJ/kg
  • Heat output: 2348.1642 kJ/kg
  • Thermal efficiency: 28.16%

Example: The thermal efficiency calculation demonstrates the application of the formula η = 1 - Qout/QinQₒᵤₜ / Qᵢₙ, which is a fundamental Rankine cycle efficiency formula.

Highlight: This problem solution provides a comprehensive example of boiler fuel consumption calculation and boiler efficiency calculation in the context of a steam power plant.

The page concludes with a brief mention of the ideal Rankine cycle with reheat, setting the stage for more advanced cycle analyses.

SAMPLE PROBLEM I 1. Compute the thermal efficiency of an ideal Rankine cycle for which steam leaves the boiler as superheated yapar at 6 MPa

View

Rankine Cycle Variations and Applications

The final section covers variations of the basic Rankine cycle.

Definition: Reheat cycles involve reheating steam after partial expansion to improve efficiency.

Example: The ideal Rankine cycle with reheat shows how multiple pressure stages can enhance overall performance.
