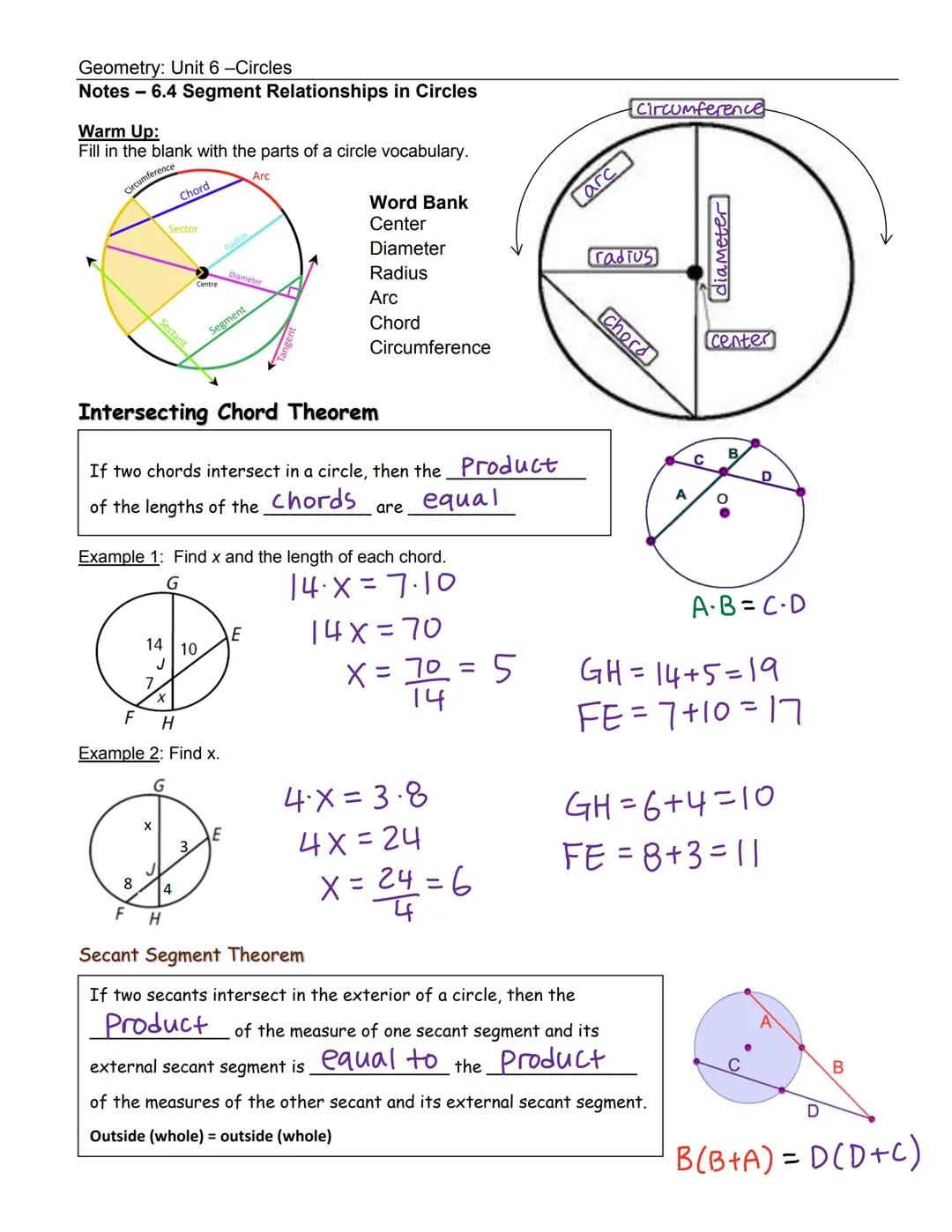

Intersecting Chord Theorem

When two chords cross each other inside a circle, something amazing happens. The product of the segments on one chord equals the product of the segments on the other chord. This pattern works every time!

To use this theorem, simply multiply the segments on each chord and set them equal. For example, if chord AB intersects chord CD, then (segment A) × (segment B) = (segment C) × (segment D).

Let's see how this works: If one chord has segments of 14 and 5, and it intersects another chord with segments of 7 and what we're solving for $x$, we write 14 × 5 = 7 × x, giving us x = 10.

💡 Quick Tip: When solving these problems, always identify the four segments created by the intersection point, then set up your equation using the product relationship.

Secant Segment Theorem

When two lines (secants) pass through a point outside a circle and intersect the circle, another pattern emerges. The product of the entire first secant and its external part equals the product of the entire second secant and its external part.

This gives us the formula B$B+A$ = D$D+C$, where the letters represent the different segment lengths. When you're given three of these values, you can solve for the fourth!

Tangent-Secant Relationships

What happens when a tangent line (which touches the circle at exactly one point) meets a secant line outside the circle? The square of the tangent length equals the product of the secant's external part and its entire length.

This relationship is written as: Tangent² = External secant × Whole secant length. For example, if a tangent has length x, and a secant has an external part of 5 and total length of 20, we'd write x² = 5 × 20, giving us x = 10.

This pattern is super useful for solving circle problems when you have a mix of tangents and secants!

🔑 Remember: The tangent-secant formula uses the square of the tangent, not just the tangent itself. This is different from the secant-secant relationship.

Congruent Parts Relationships

Circles have beautiful symmetry! In a circle, congruent central angles create congruent chords. Similarly, congruent chords create congruent arcs, and congruent arcs create congruent central angles.

These relationships work like a cycle, each implying the others. When you see congruent parts in a circle, you can immediately identify other parts that must also be congruent.

Perpendicular Radius and Chord Properties

When a radius or diameter is perpendicular to a chord, it creates a special relationship - it bisects (cuts in half) both the chord and its corresponding arc.

This means if radius AB is perpendicular to chord CD, then chord CD is divided into two equal parts, and arc CD is also divided into two equal parts.

This property gives us an excellent shortcut for finding chord lengths using the Pythagorean theorem. Since we form a right triangle, we can use a² + b² = c² to find missing lengths.

📝 Important: When using the Pythagorean theorem with circles, identify the right triangle first, then apply the formula to find the unknown sides.

For example, if a radius of length 9 is perpendicular to a chord, and the distance from the center to the chord is 6, we can find half the chord length using: 6² + x² = 9². This gives us x = √45 = 3√5, so the full chord length is 6√5 or approximately 13.4.

Mastering these circle segment relationships will help you tackle even the most challenging geometry problems with confidence!
