Understanding Pressure: Concepts and Measurement Techniques

Introduction to Fluid Statics

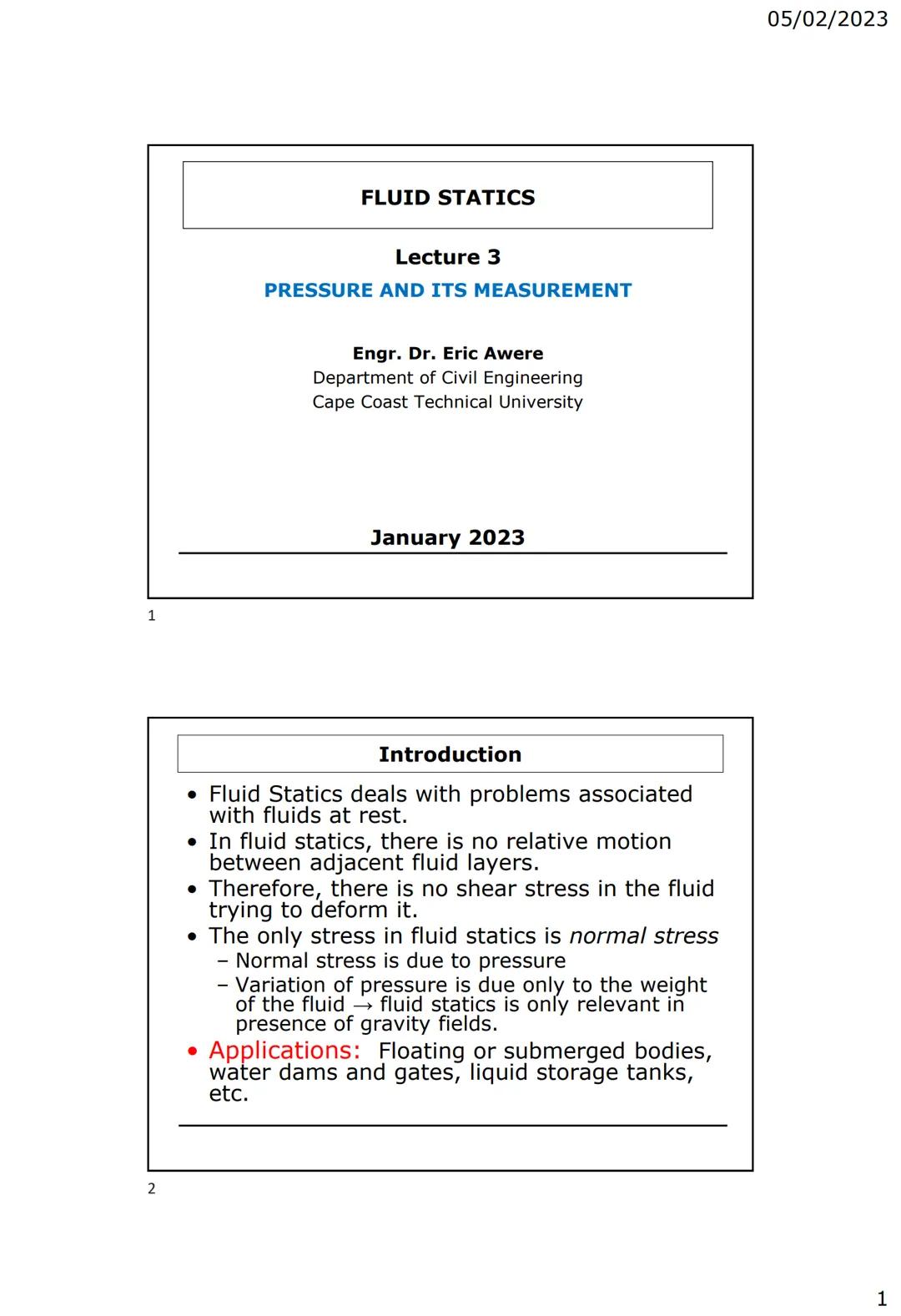

Fluid statics deals exclusively with fluids at rest, where adjacent fluid layers don't move relative to each other. In this motionless state, the only stress present is normal stress caused by pressure—there's no shear stress trying to deform the fluid.

What makes fluid statics particularly relevant is gravity. The variation of pressure in static fluids occurs only because of the fluid's weight in a gravity field. Without gravity, pressure would be uniform throughout a static fluid.

Remember this: Fluid statics might seem simple compared to fluid dynamics, but it explains crucial everyday phenomena like why objects float and how hydraulic systems work!

This field has numerous practical applications in engineering, including the design of floating structures, submerged bodies, water dams, gates, and liquid storage tanks—all of which rely on understanding how pressure behaves in stationary fluids.

Pressure and Pascal's Law

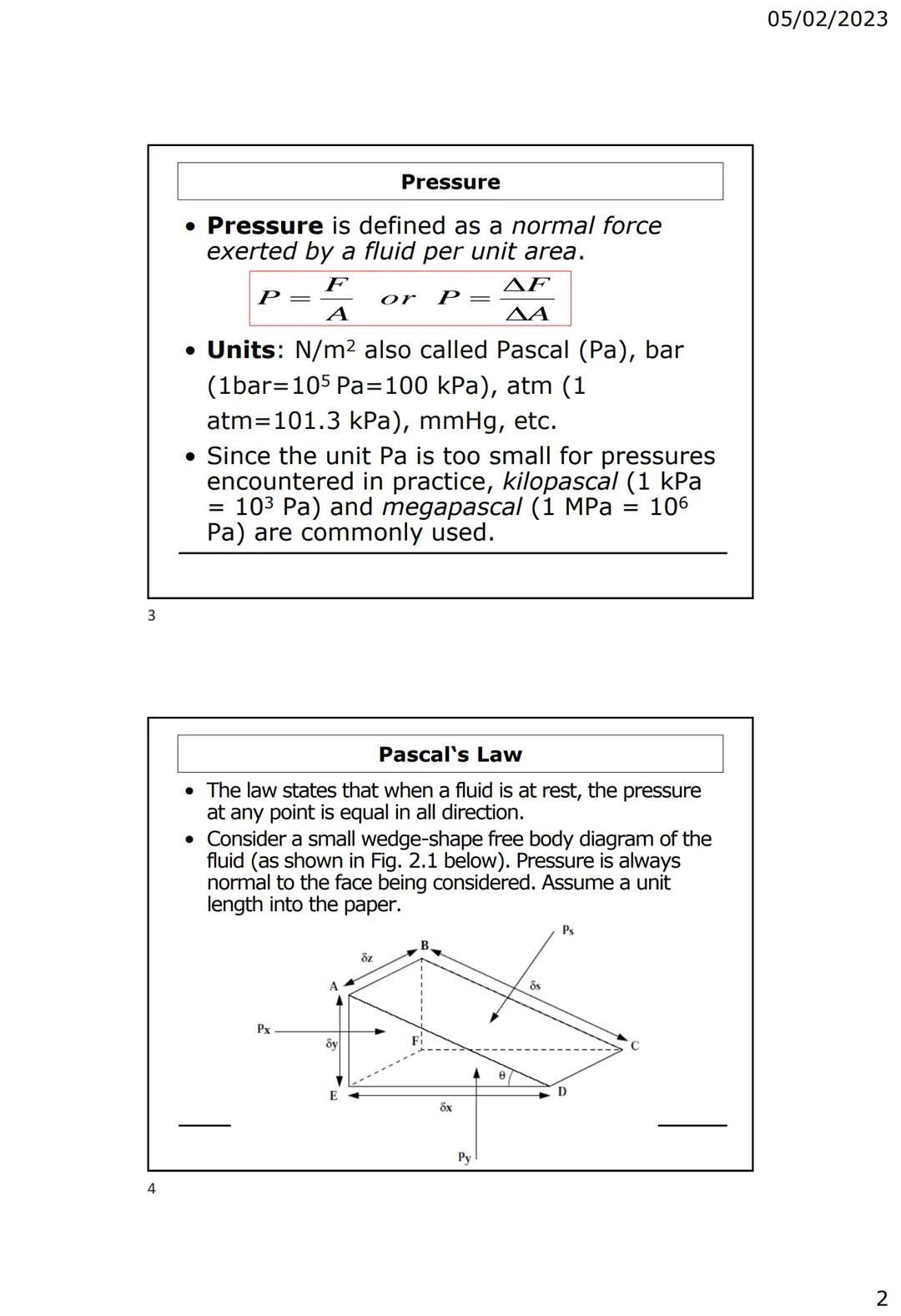

Pressure is defined as the normal force exerted by a fluid per unit area, expressed mathematically as P = F/A. While the standard unit is Pascal (Pa or N/m²), we often use kilopascal (kPa) or megapascal (MPa) for practical applications since a single Pascal is quite small.

Pascal's Law states that when a fluid is at rest, the pressure at any point is equal in all directions. This can be proven by examining the forces acting on a small wedge-shaped portion of fluid. When we balance horizontal and vertical forces, we find that pressure must be the same in all directions (Px = Py = Ps).

The practical importance of Pascal's Law becomes clear when we consider its alternative statement: when external pressure is applied to a confined fluid at rest, that pressure is transmitted throughout the fluid in all directions without any change. This principle is what makes hydraulic systems possible!

Quick Tip: Understanding Pascal's Law is key to solving almost all fluid statics problems—it's the foundation for everything from hydraulic brakes to water towers.

Pascal's Law (Continued)

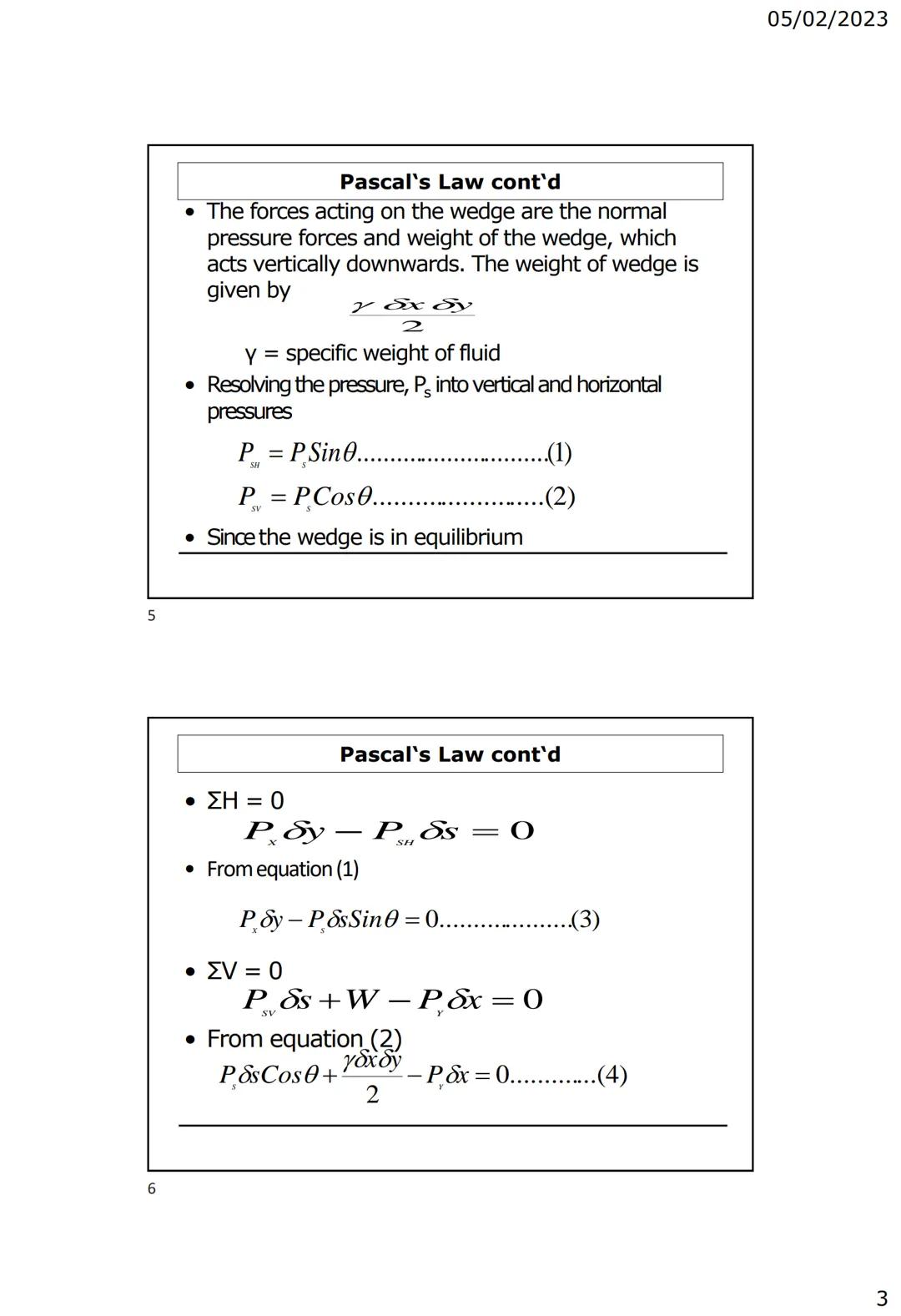

When analyzing forces in a fluid at rest, we must consider both pressure forces and the weight of the fluid itself. For a wedge-shaped element, the weight is calculated as γδxδy/2, where γ is the specific weight of the fluid.

The pressure acting on any surface can be resolved into horizontal and vertical components:

• Horizontal: PSH = PS Sin θ
• Vertical: PSV = PS Cos θ

By applying equilibrium equations (sum of forces in horizontal and vertical directions equals zero) and using geometric relationships, we can mathematically prove that pressure at a point in a static fluid is equal in all directions (PX = PY = PS).

Think about it: Pascal's Law explains why a small force on a narrow piston can lift a heavy car in an auto repair shop—pressure is transmitted equally through the hydraulic fluid!

Pascal's Law Application

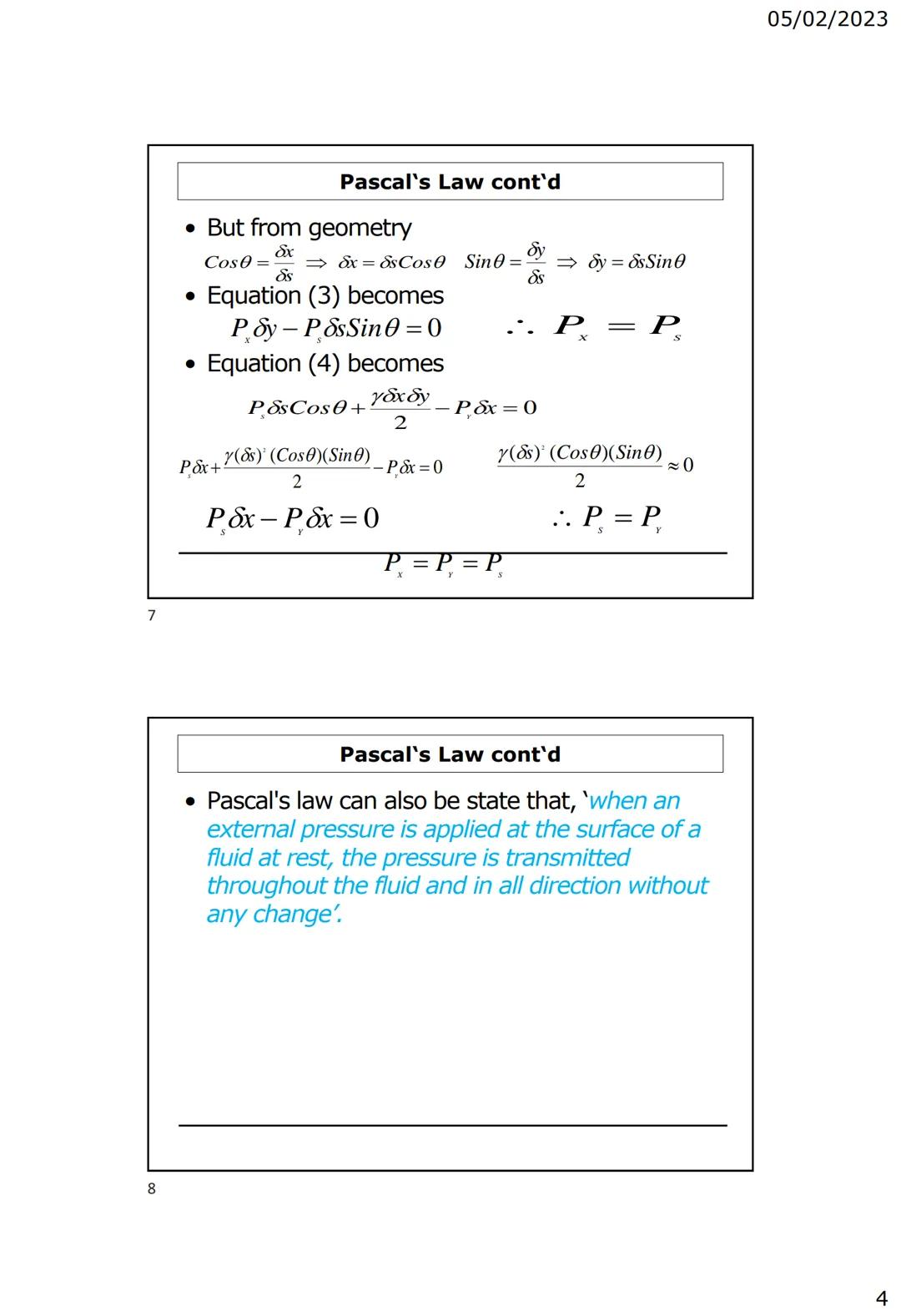

By applying geometric principles to our force analysis (Cos θ = δx/δs and Sin θ = δy/δs), we can substitute these relationships into our equilibrium equations. This mathematical process confirms that pressure at any point in a static fluid is the same in all directions.

The practical statement of Pascal's Law is particularly useful: when external pressure is applied at the surface of a fluid at rest, that pressure is transmitted throughout the fluid and in all directions without any change. This principle is the foundation for countless hydraulic applications.

This equal transmission of pressure allows force multiplication in hydraulic systems, where a small force can generate a much larger one—the science behind hydraulic jacks, brakes, and industrial equipment.

Practical Application: Pascal's Law is why you can easily lift a 2-ton car with a small hydraulic jack that fits in your trunk!

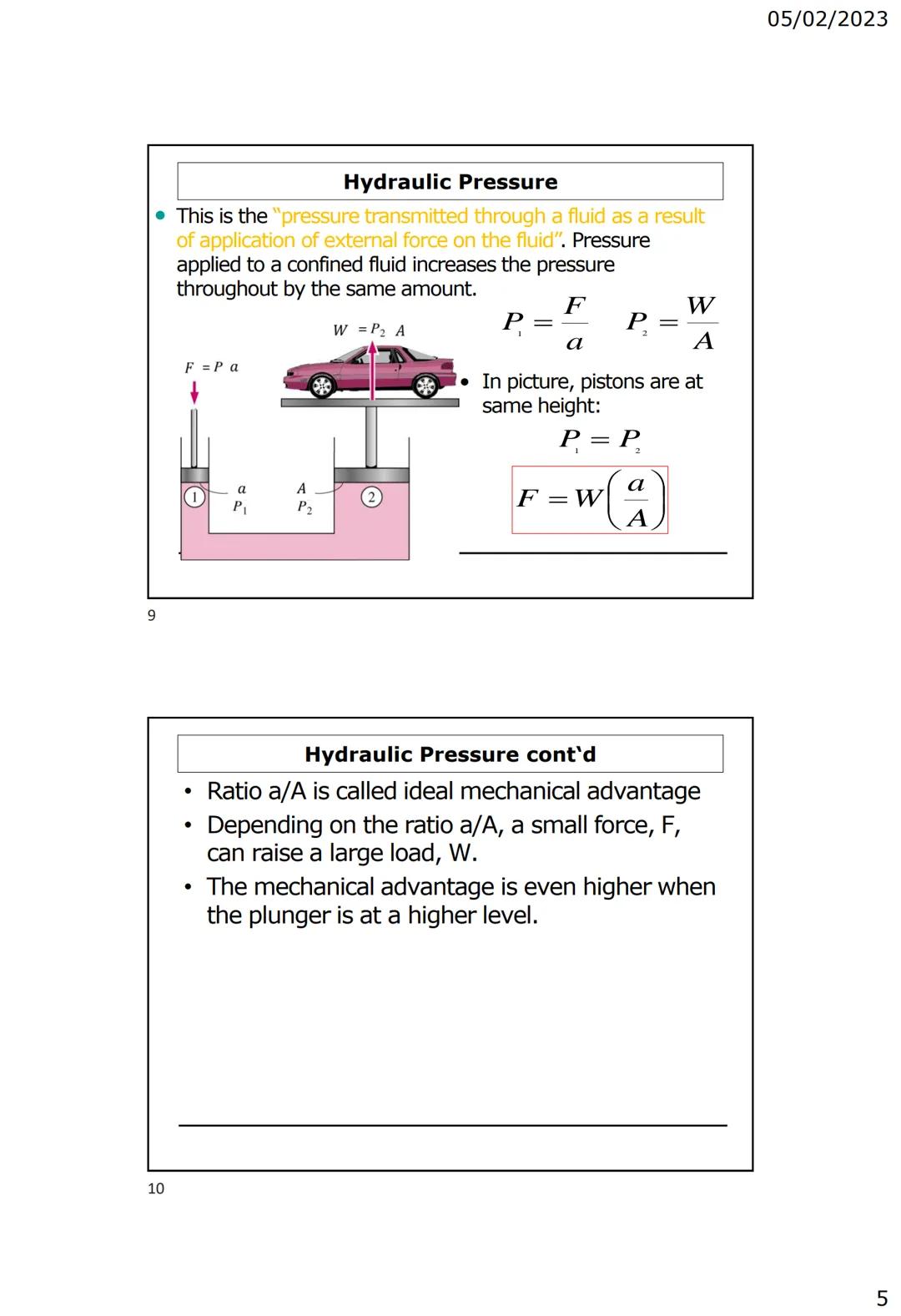

Hydraulic Pressure Systems

Hydraulic pressure is transmitted through a confined fluid when an external force is applied, creating the same pressure increase throughout the system. In a basic hydraulic system with two pistons at the same height, the pressure at both ends is equal $P₁ = P₂$.

The force relationship in a hydraulic system can be expressed as F = W(a/A), where F is the input force, W is the output force, and a/A is the ratio of the input piston area to the output piston area. This ratio is called the ideal mechanical advantage.

You can achieve tremendous force multiplication by using a small input piston and a large output piston. For example, a 1:10 area ratio means the output force is 10 times greater than the input force.

Power Fact: The mechanical advantage is even higher when the input plunger is positioned at a higher level than the output piston, as this adds the benefit of hydrostatic pressure to the system!

Hydraulic Pressure Applications

In hydraulic systems, the relationship between input and output forces depends on the relative positions of the pistons. When pistons are at the same level, the pressures are equal, and the force ratio depends solely on the area ratio $F = W(a/A)$.

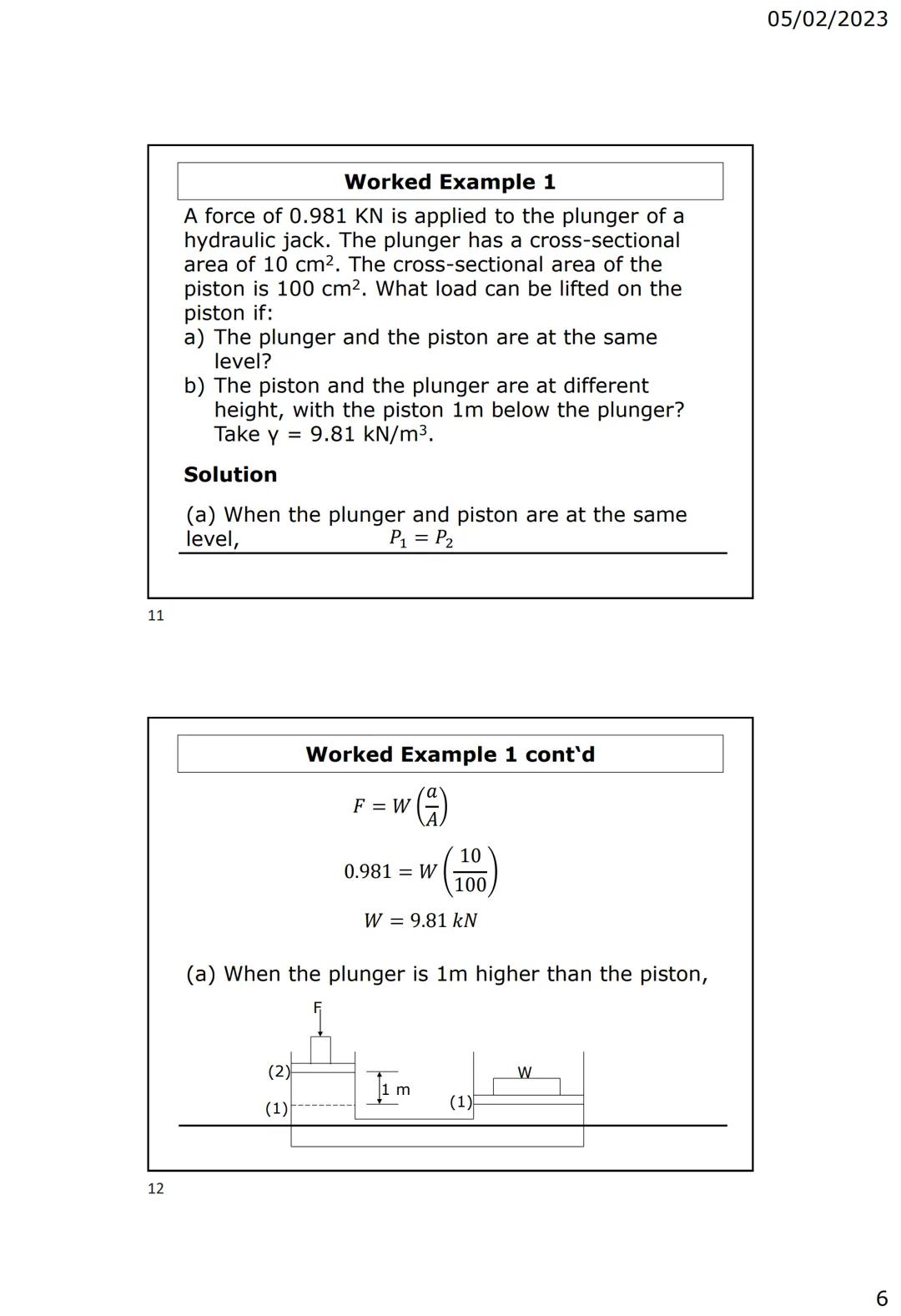

Consider a hydraulic jack with a 0.981 kN force applied to a 10 cm² plunger. If the output piston has an area of 100 cm², the load that can be lifted is 9.81 kN when both pistons are at the same level—a 10x force multiplication!

When the input plunger is positioned higher than the output piston, the system gains additional lifting power from the hydrostatic pressure. For instance, with the plunger 1 meter above the piston, the same input force can now lift 9.908 kN—slightly more than before.

Engineering Insight: Hydraulic systems don't just multiply force—they also provide precise control and can transmit power around corners and through complex paths, making them ideal for everything from construction equipment to aircraft controls.

Pressure Relationships in Hydraulics

In hydraulic systems where the pistons are at different heights, we must account for the additional pressure due to the fluid column. The pressure at the lower piston (P₁') equals the input pressure (P₁) plus the pressure from the fluid column (γh).

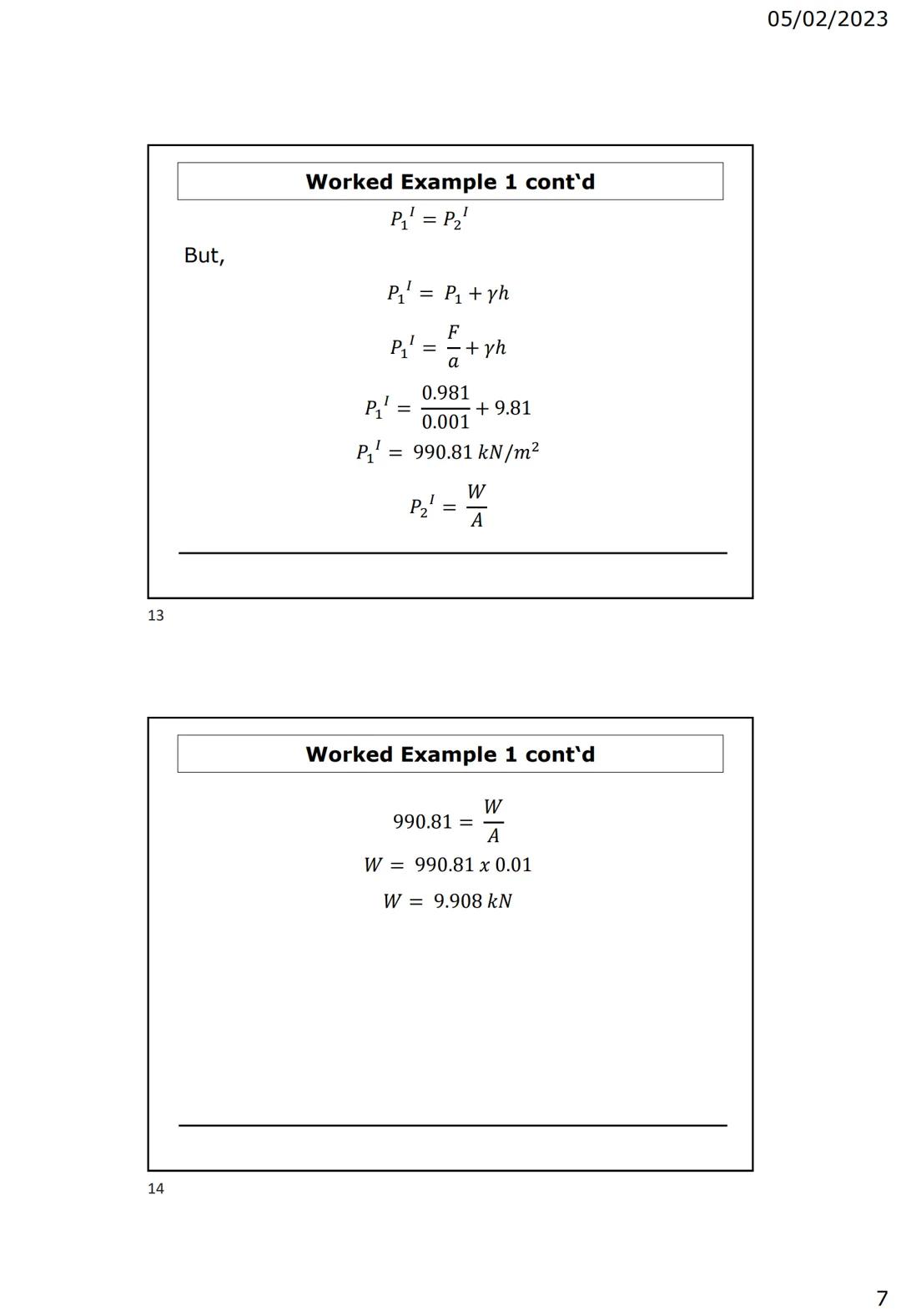

This relationship can be expressed as: P₁' = P₁ + γh = F/a + γh. For a numerical example, with F = 0.981 kN, a = 0.001 m², and γ = 9.81 kN/m³, the total pressure at the lower piston is 990.81 kN/m².

The force output can then be calculated by multiplying this pressure by the output piston area: W = P₁' × A = 990.81 × 0.01 = 9.908 kN. This demonstrates how height difference in a hydraulic system adds to the mechanical advantage.

Pro Tip: When designing hydraulic systems, consider positioning input pistons higher than output pistons whenever possible to gain "free" additional force from gravity!

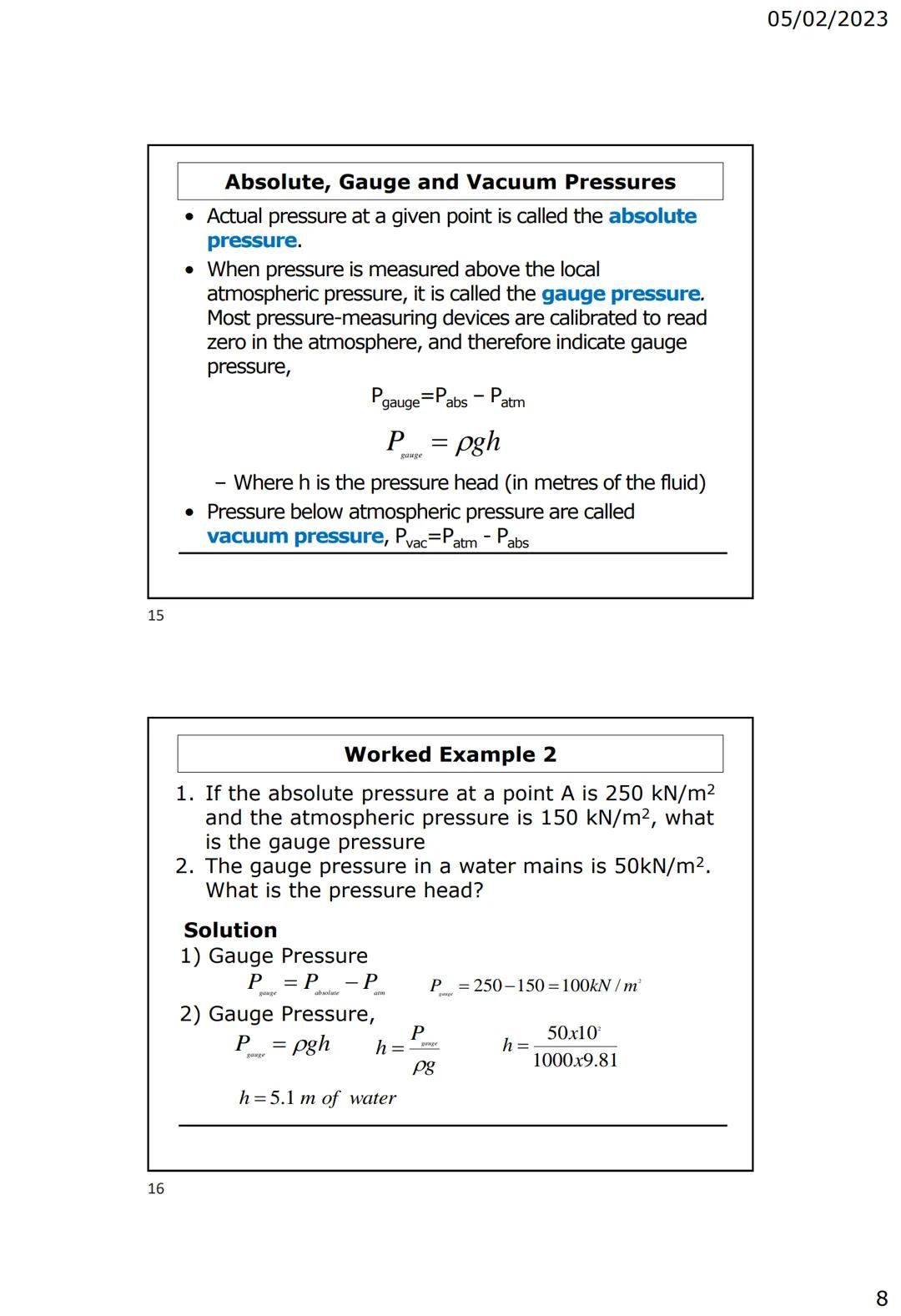

Understanding Different Pressure Measurements

Pressure comes in three important varieties that engineers must distinguish between. Absolute pressure is the total actual pressure at a point, while gauge pressure is measured relative to atmospheric pressure (Pgauge = Pabs - Patm).

Most pressure gauges read zero in atmospheric conditions, so they display gauge pressure. This can be calculated using the formula Pgauge = ρgh, where h is the "pressure head" measured in meters of the fluid. For example, a gauge pressure of 50 kN/m² in water corresponds to a pressure head of 5.1 meters of water.

When pressure falls below atmospheric levels, we call it vacuum pressure, calculated as Pvac = Patm - Pabs. This is especially important in systems like pumps and condensers where sub-atmospheric conditions occur.

Visualization Aid: Think of atmospheric pressure as "sea level" for pressure measurements—gauge pressure measures how far above sea level, while vacuum pressure measures how far below.

Pressure Measurement Devices

Engineers use various instruments to measure pressure, each suited for specific applications. The simplest is the piezometer tube, which is just an open vertical tube where fluid rises to a height proportional to pressure.

More advanced devices include the barometer (using mercury to measure atmospheric pressure), the U-tube manometer (measuring pressure difference between two points), the aneroid barometer (using spring deformation), and modern pressure transducers that convert pressure to electrical signals.

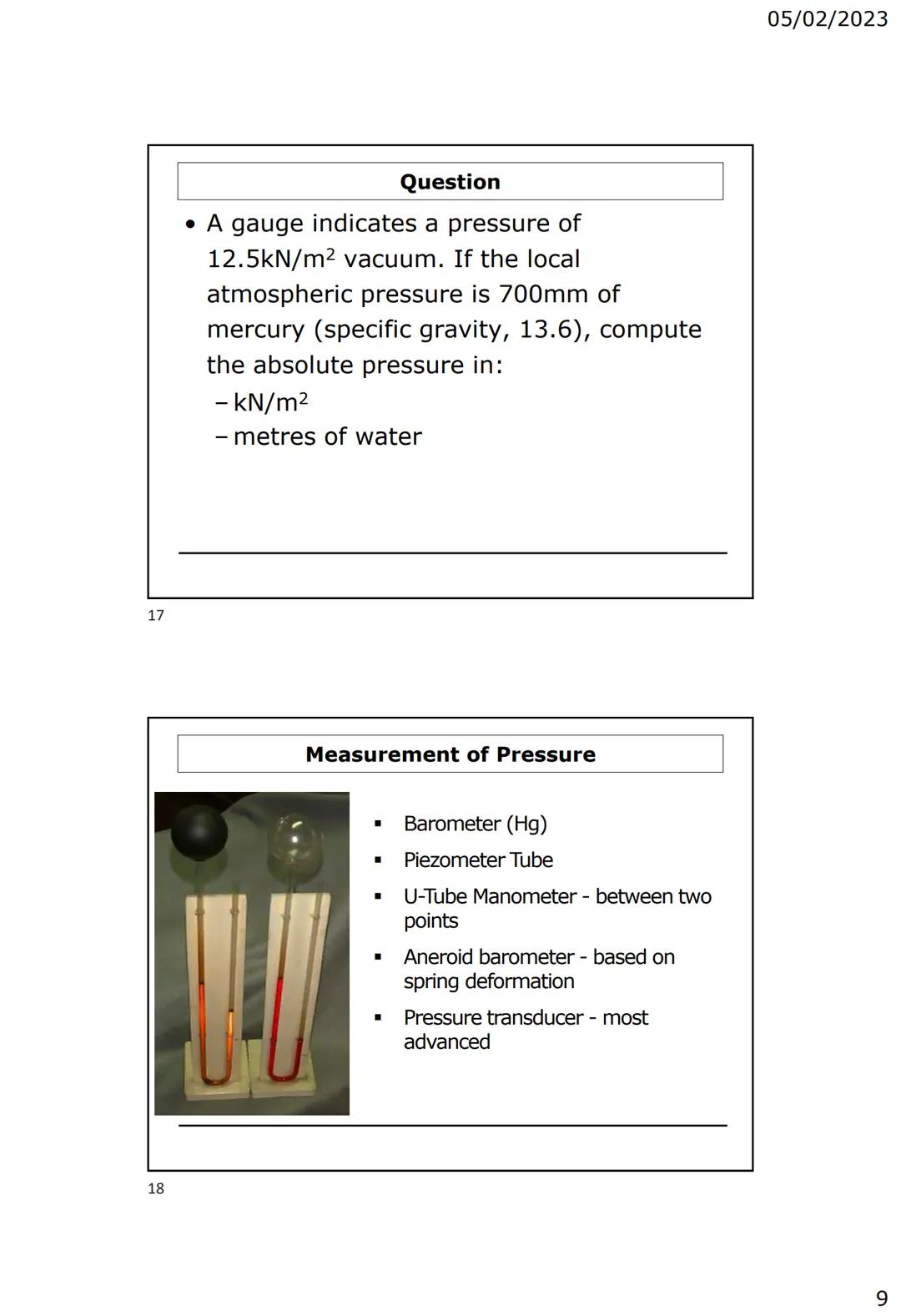

When using these measurement devices, remember that vacuum pressure (pressure below atmospheric) requires special attention. For instance, if a gauge shows 12.5 kN/m² vacuum and local atmospheric pressure is 700 mm of mercury, you'll need to convert these values carefully to determine absolute pressure.

Historical Context: The mercury barometer was invented by Evangelista Torricelli in 1643, proving that air has weight and atmospheric pressure exists—a revolutionary concept at the time!

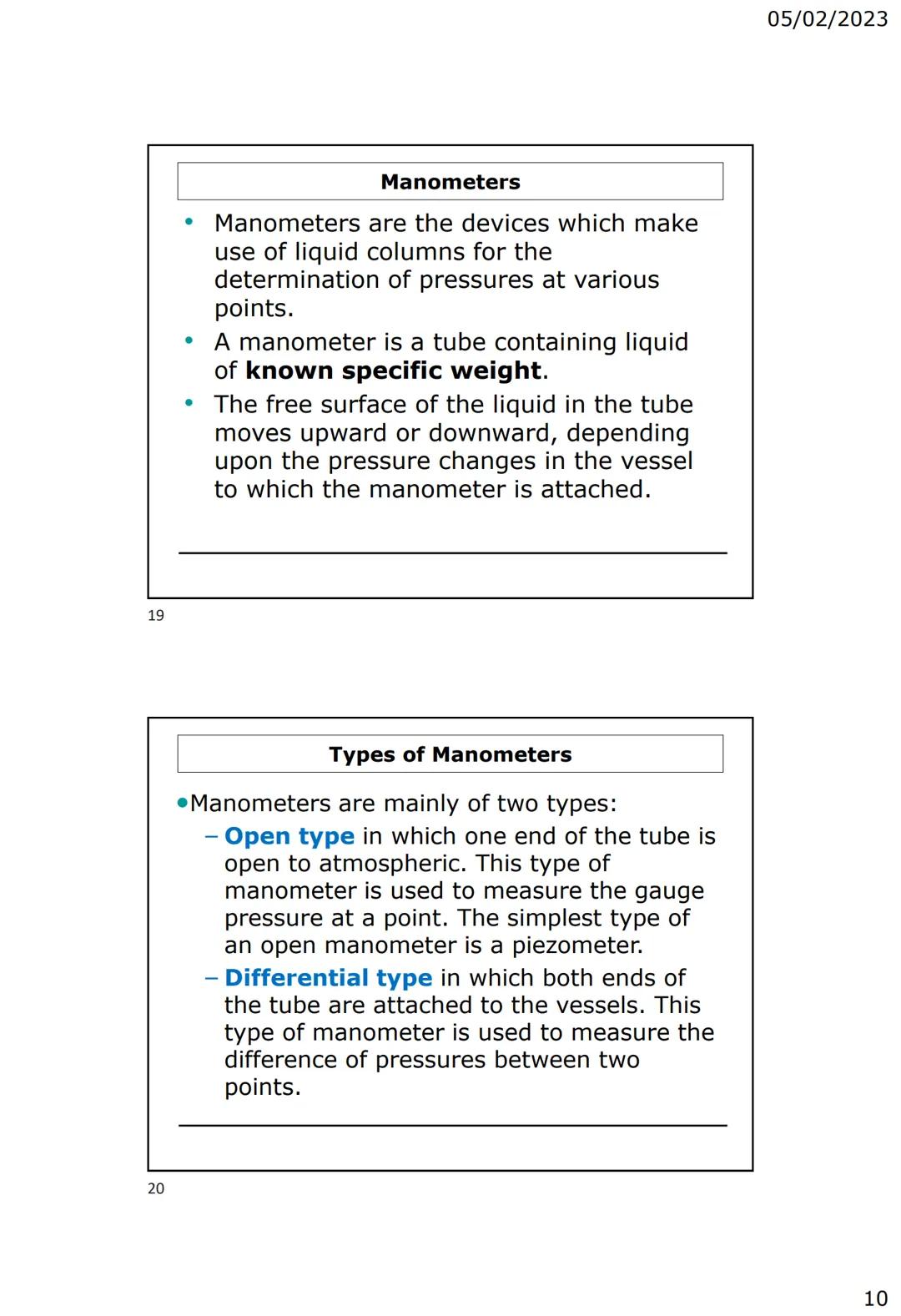

Manometers for Pressure Measurement

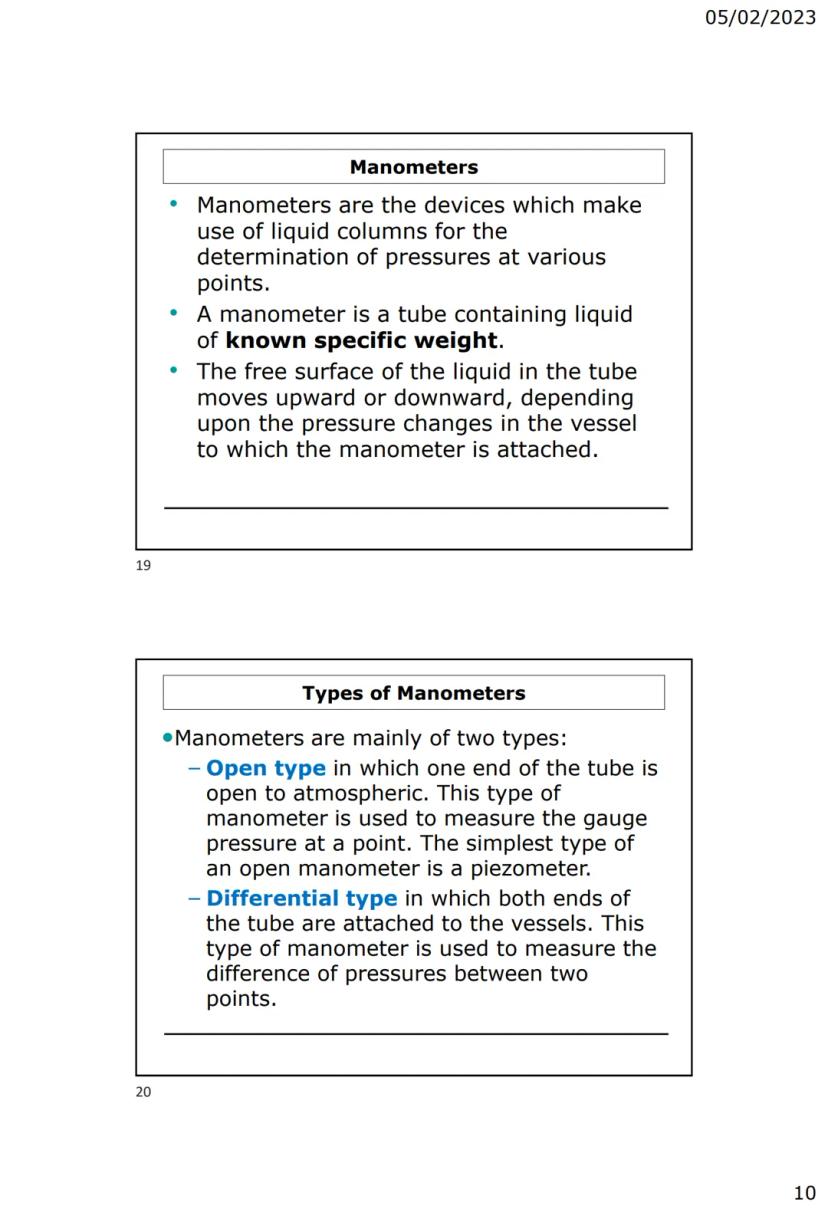

Manometers are simple yet effective pressure measurement devices that use liquid columns to determine pressure. They work on the principle that the height of a liquid column directly corresponds to pressure according to the relationship P = ρgh.

There are two main types of manometers:

1. Open manometers - One end is open to the atmosphere, making them ideal for measuring gauge pressure. The piezometer is the simplest example.
2. Differential manometers - Both ends connect to different pressure points, allowing measurement of pressure difference between two locations.

Manometers are particularly valuable because they're accurate, inexpensive, and don't require calibration. However, they're limited by practical considerations like the height of liquid columns needed for high pressures.

Lab Tip: When working with manometers in a laboratory, always ensure the connecting tubes are completely filled with fluid and free of air bubbles, which would cause inaccurate readings.
