Learning About Chemical Bonds and Drawing Lewis Dots

user profile picture

Jocelyn Perez

@jocelynperez28

Understanding chemical bonds in compoundsand molecular structures is fundamental... Show more

Page 1
Page 2
Page 3
Page 4
Page 5
1 / 5
COMPOUNDS
-Are held together by chemical bonds.
REPRESENTATION OF ATOMS & IONS
Valence electrons: S and p electrons in the highest principle

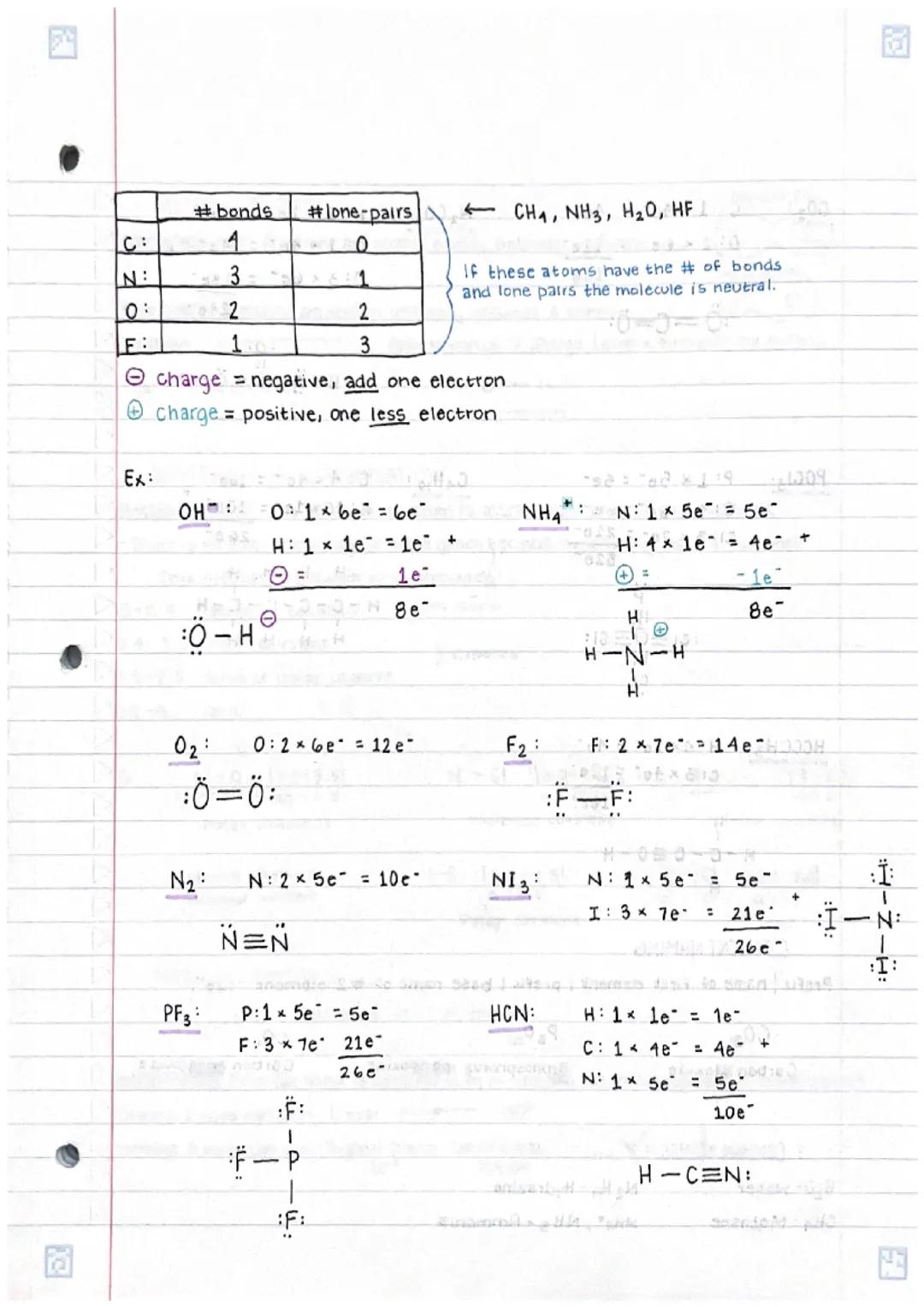

Page 2: Advanced Lewis Structures and Charge Considerations

This page delves deeper into Lewis structures, focusing on bond formation and charge distribution in molecules.

Definition: The number of bonds and lone pairs determines whether a molecule is neutral or charged.

Example: Molecules like CH₄, NH₃, H₂O, and HF demonstrate different bonding patterns while maintaining neutrality.

Highlight: When drawing Lewis structures, consider both the number of bonds and lone pairs to accurately represent molecular structure.

COMPOUNDS
-Are held together by chemical bonds.
REPRESENTATION OF ATOMS & IONS
Valence electrons: S and p electrons in the highest principle

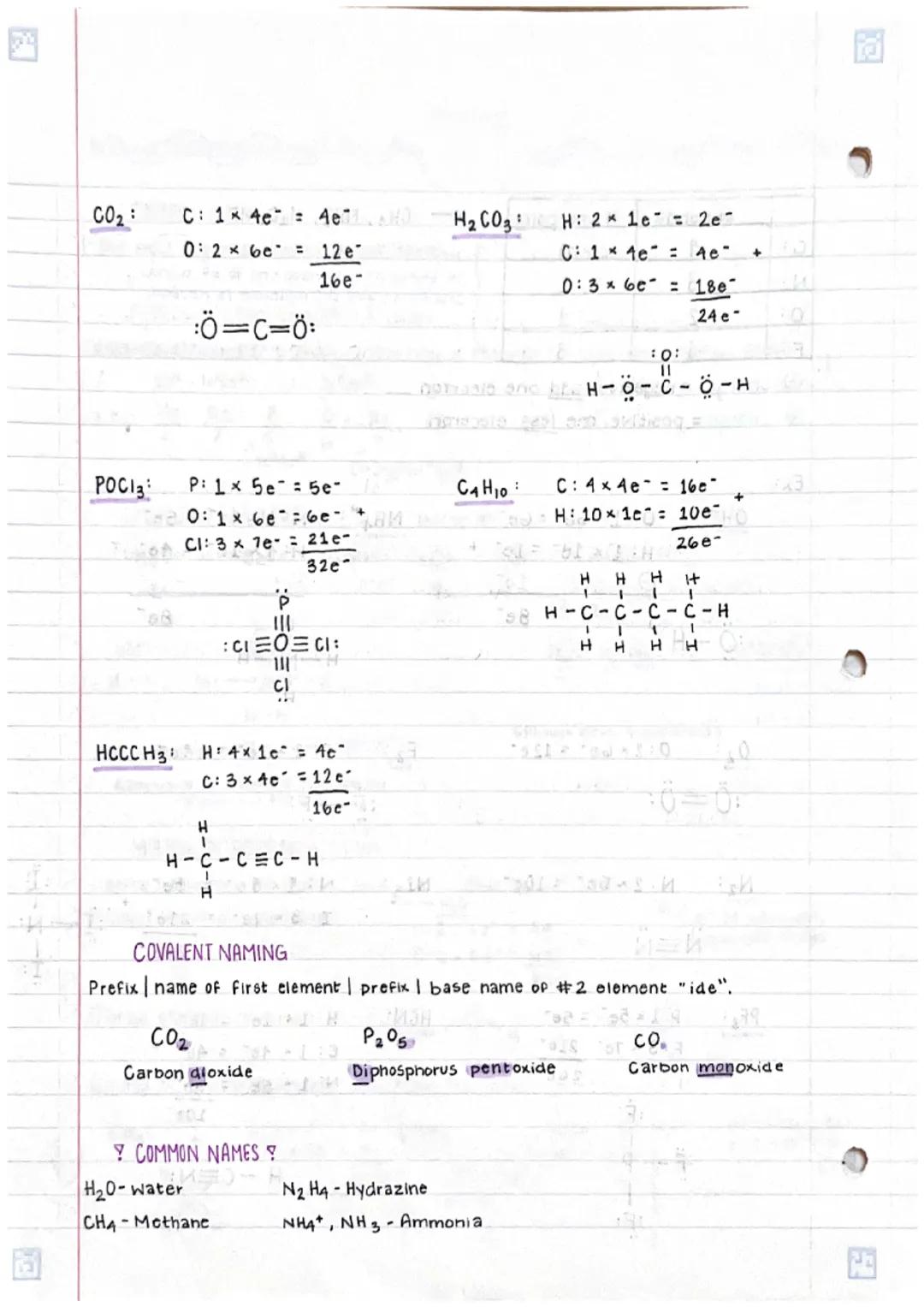

Page 3: Molecular Naming and Complex Structures

This section covers nomenclature rules and more complex molecular structures.

Vocabulary: Common names versus systematic names in chemistry nomenclature.

Example: CO₂ (carbon dioxide) and POCI₃ demonstrate more complex bonding arrangements.

Definition: Covalent naming follows the pattern: prefix + first element name + prefix + second element + "ide".

COMPOUNDS
-Are held together by chemical bonds.
REPRESENTATION OF ATOMS & IONS
Valence electrons: S and p electrons in the highest principle

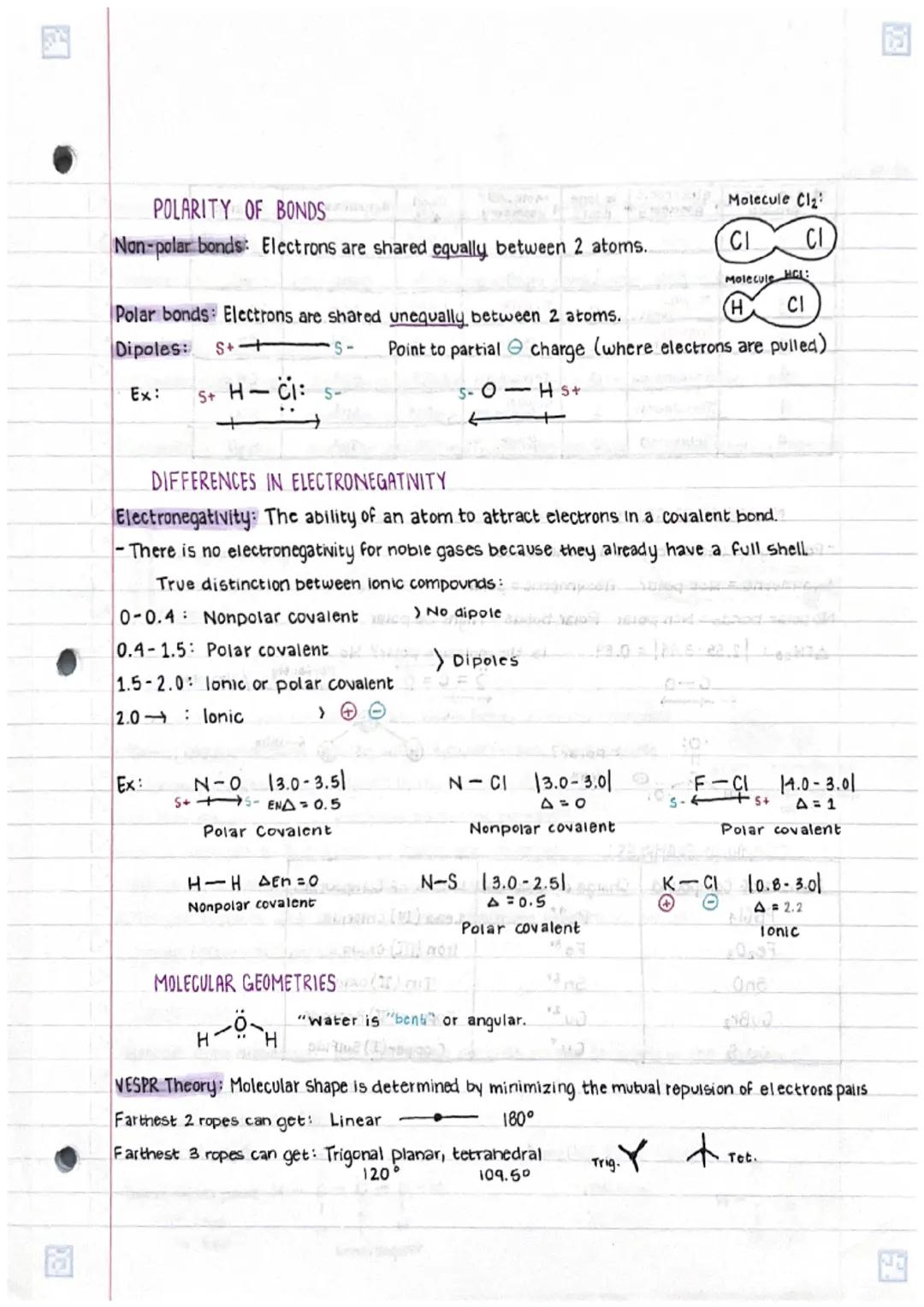

Page 4: Bond Polarity and Electronegativity

This page explores the relationship between electronegativity and bond polarity.

Definition: Electronegativity is an atom's ability to attract electrons in a covalent bond.

Highlight: The difference in electronegativity determines bond type:

  • 0-0.4: Nonpolar covalent
  • 0.4-1.5: Polar covalent
  • 1.5-2.0: Ionic or polar covalent
  • 2.0: Ionic

Example: H-Cl shows polar covalent bonding due to electronegativity differences.

COMPOUNDS
-Are held together by chemical bonds.
REPRESENTATION OF ATOMS & IONS
Valence electrons: S and p electrons in the highest principle

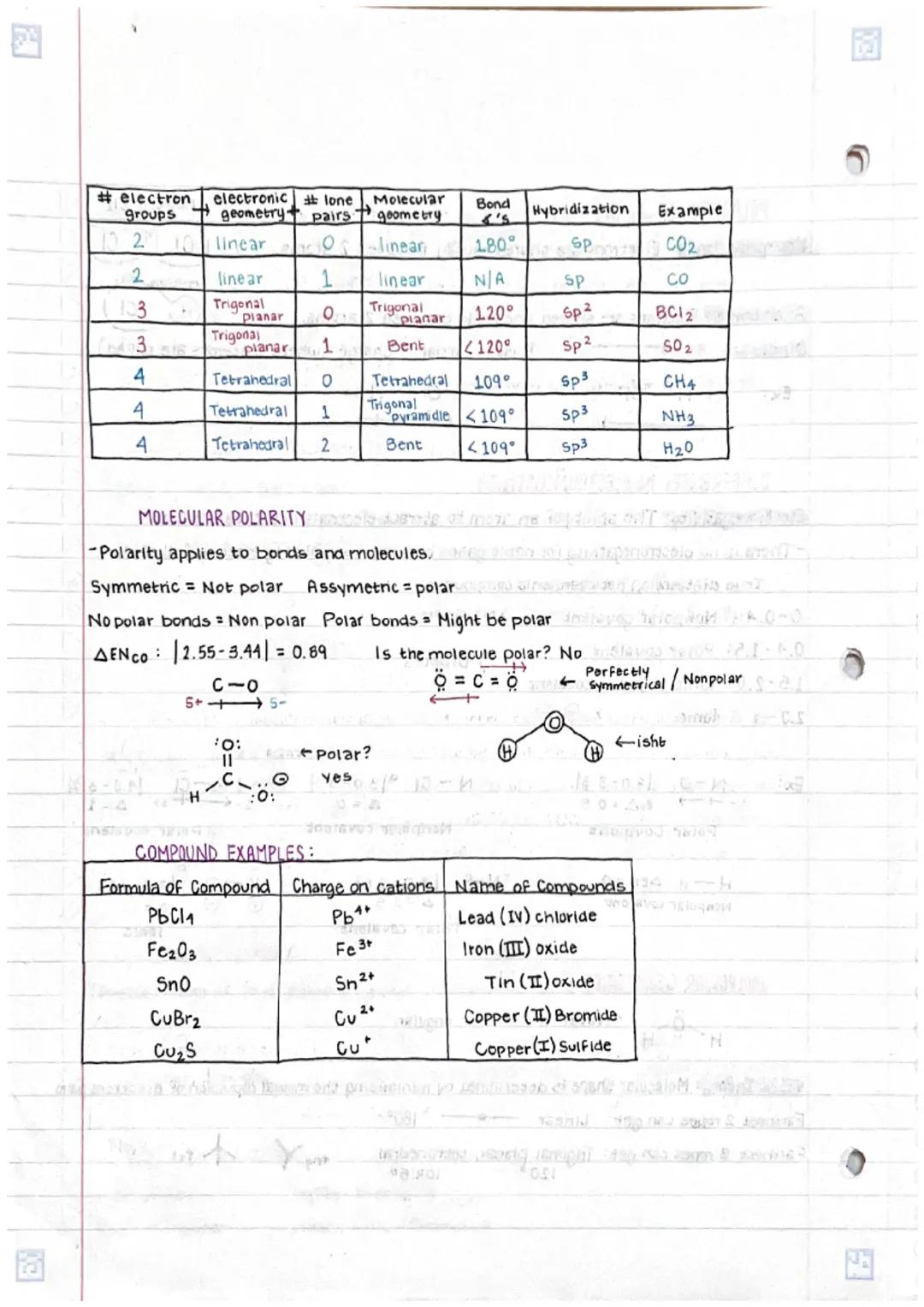

Page 5: Molecular Geometry and Polarity

The final page covers molecular geometry and its relationship to polarity.

Definition: VSEPR Theory states that molecular shape is determined by minimizing electron pair repulsion.

Example: CO₂ is linear and nonpolar despite having polar bonds due to its symmetrical structure.

Highlight: Molecular polarity depends on both bond polarity and molecular geometry.

Vocabulary: Hybridization - The mixing of atomic orbitals to form new hybrid orbitals for bonding.

COMPOUNDS
-Are held together by chemical bonds.
REPRESENTATION OF ATOMS & IONS
Valence electrons: S and p electrons in the highest principle

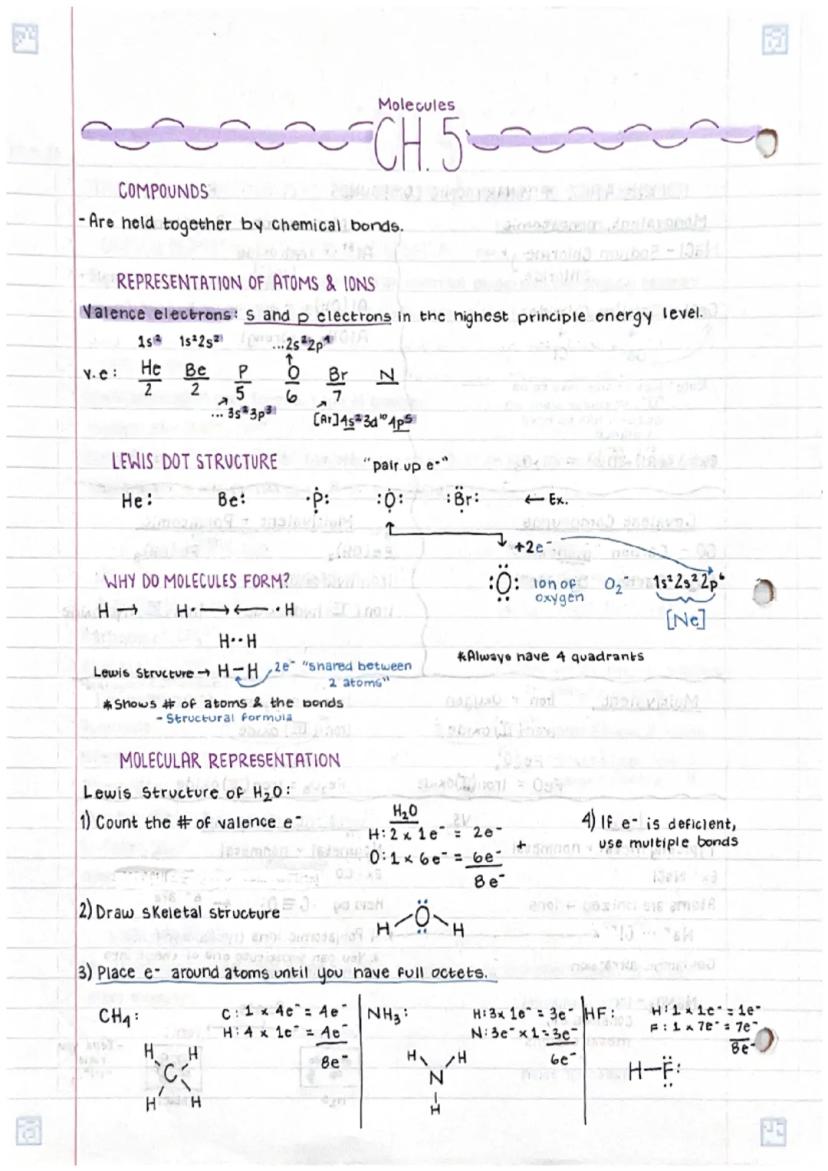

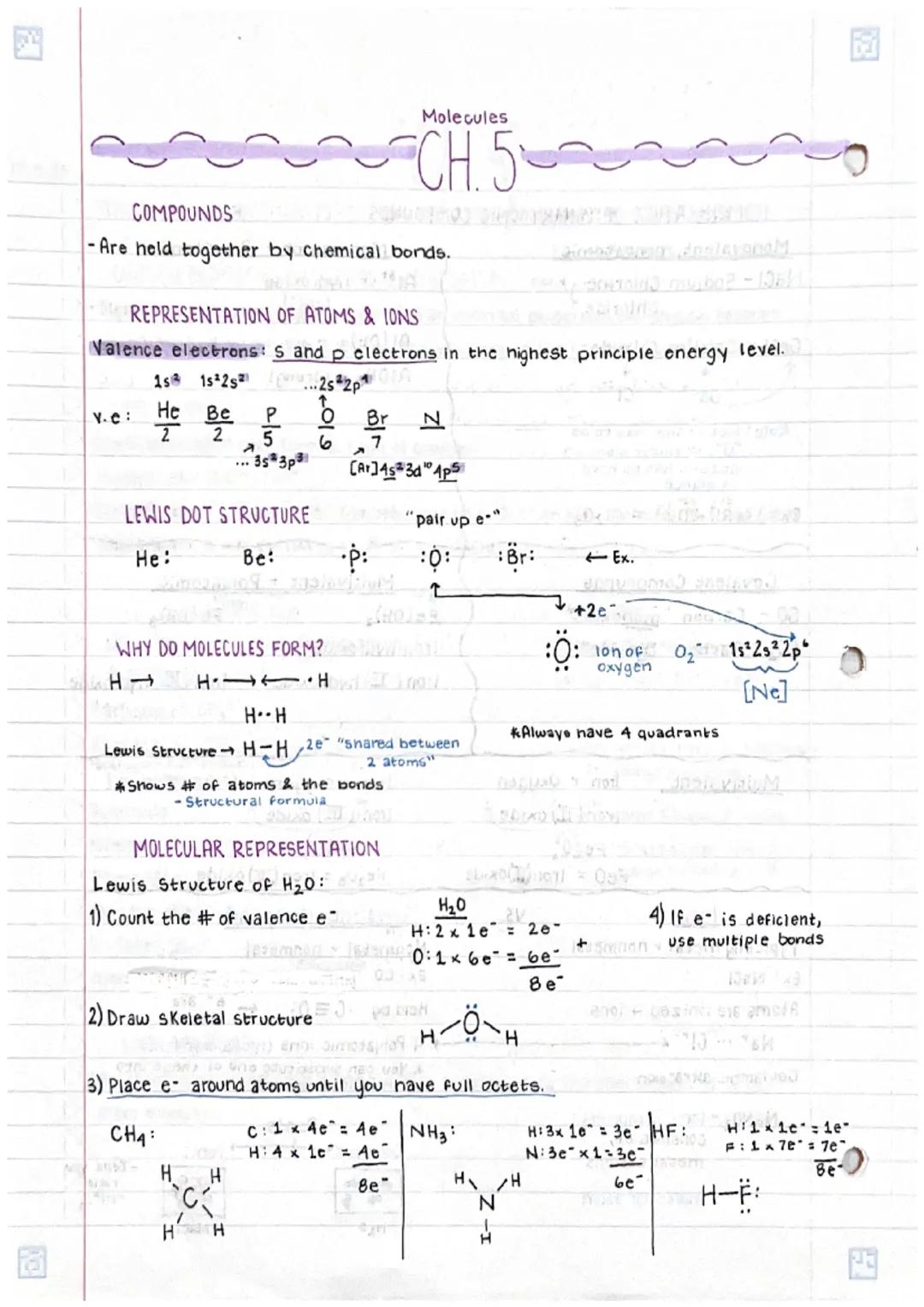

Page 1: Fundamentals of Chemical Bonding and Lewis Structures

This page introduces the basic concepts of chemical bonding and Lewis dot structure representation. The content focuses on valence electrons and their role in forming chemical bonds.

Definition: Valence electrons are the s and p electrons in the highest principal energy level of an atom.

Example: The Lewis structure of H₂O shows how electrons are shared between atoms to achieve stable configurations.

Highlight: The systematic approach to drawing Lewis structures involves counting valence electrons, drawing skeletal structures, and placing electrons to achieve full octets.

Vocabulary: Skeletal structure - A representation showing how atoms are connected without showing all electrons.
